Penerangan

TUNKIA - Gauss Meter/Tesla Meter

* With Digital & Analog Signal Output

Brand: Tunkia
Model: TM6100

Definition:
TM6100 is a high-precision, multi-functional magnetic field measuring instrument equipped with a high-sensitivity, low-drift Hall sensor. It is applied for measuring the magnetic flux density value of a DC (constant) magnetic field or an alternating magnetic field (optional).

Range		30 mT	300 mT	3000 mT ^①
Resolution		1 μT	10 μT	0.1 mT
Measuring Range		2 mT ～ 3000 mT
Accuracy	0.5 %	DC: ±(0.5% + 200 μT), AC: ±5%( RMS) ^①
	0.2 %	DC: ±(0.2% + 200 μT) , AC:±5% (RMS)
Frequency Range		DC, 40Hz ~ 500Hz
Temperature Coefficient		± 0.1% / K
Zero Drift		± 0.1 mT /h
Display Digits		5
Remark		① AC mode is a feature selected for the TM6100-B

Features:

☆ Optional Radial or Axial Hall Probe
Radial Hall Probe
Axial Hall Probe
• Standard configuration is Radial Hall probe, also can choose Axial Hall probe.

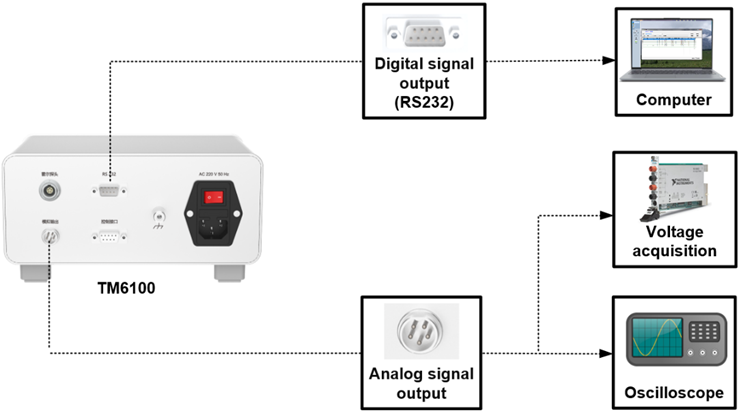

Digital and Analog Signal Output

• Two output modes of digital signal and analog signal.
• Directly output the secondary analog signal, and adjust the maximum output voltage.
