General Purpose Telescopic Cylinders
Working pressure: 700bar
Combination of long piston stroke and small retracted height.
●For use where there is a minimum clearance for the insertion of cylinder and a very high lift is necessary.
●Single acting, load return.
●High strength alloy steel for durability.
●Chrome plated piston resists wear and corrosion.
●Baked enamel finish for increased corrosion resistance.
●Each cylinder has an HH-II R2 3/8 male half coupler and dust cap.
●Each cylinder has a flat grooved saddle.

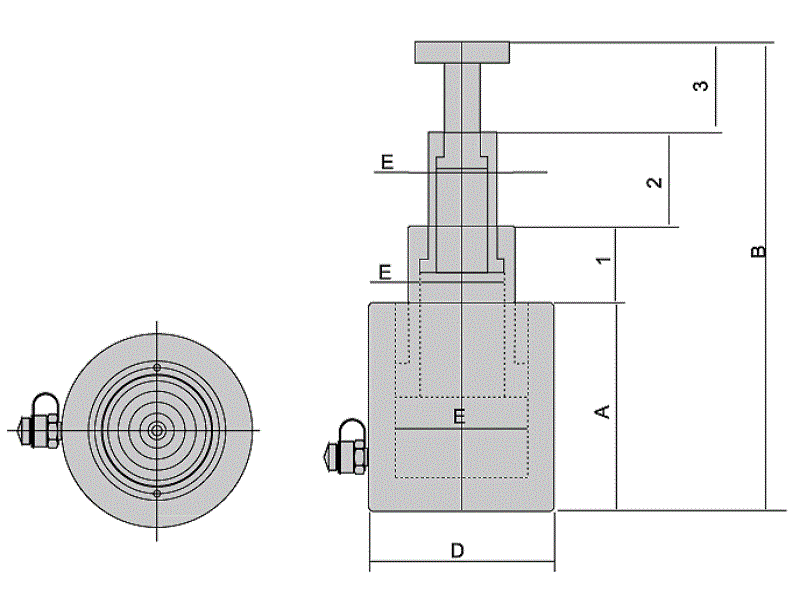

| MODEL | CAPACITY | STAGE NUMBER | STROKE | TOTAL STROKE | EFFECTIVE AREA | OIL CAPACITY | CLOSED HEIGHT A | OUTSIDE DIA. D | Inside Dia. E | G.W | RECOMMENDED PUMP |
| HHYG-10270D | 10 Ton | 2 | 135 mm | 270 mm | 15.9 cm2 | 810 cm3 | 250 mm | 110 mm | 45 mm | 18 kg | HHB-700A / HHB-700B |
| 1 | 135mm | 44.2 cm2 | 75 mm | ||||||||
| HHYG-30300D | 30 Ton | 2 | 150 mm | 300mm | 44.2 cm2 | 2088 cm3 | 304 mm | 152 mm | 75 mm | 45 kg | HHB-700A / HHB-700B |
| 1 | 150 mm | 95.0 cm2 | 110 mm | ||||||||
| HHYG-30600D | 30 Ton | 3 | 200 mm | 600 mm | 44.2 cm2 | 6803 cm3 | 366 mm | 220 mm | 75 mm | 106 kg | HHB-630E |
| 2 | 200 mm | 95.0 cm2 | 110 mm | ||||||||
| 1 | 200 mm | 213.7 cm2 | 165 mm |
