COME-UP AC Electric Wire Rope Winch ( 500kg )
Lightweight and compact design for easy installation
Electromagnetic spring-applied failsafe brake
Heavy duty high efficiency ball bearing on all running surfaces
Planetary gears for maximum mechanical efficiency
Enclosed drum flange to prevent rope becoming trapped between drum and support steel plates
Steel plate foot mountings
Quiet running
Standard Accessories
- Wire rope 7mm x 60m
- Weight hook, CHW-0005
- Remote Control PB-331
Switch cord 3.5mm x 5C x 6m
Pendant switch PB-331 w/an emergency stop button

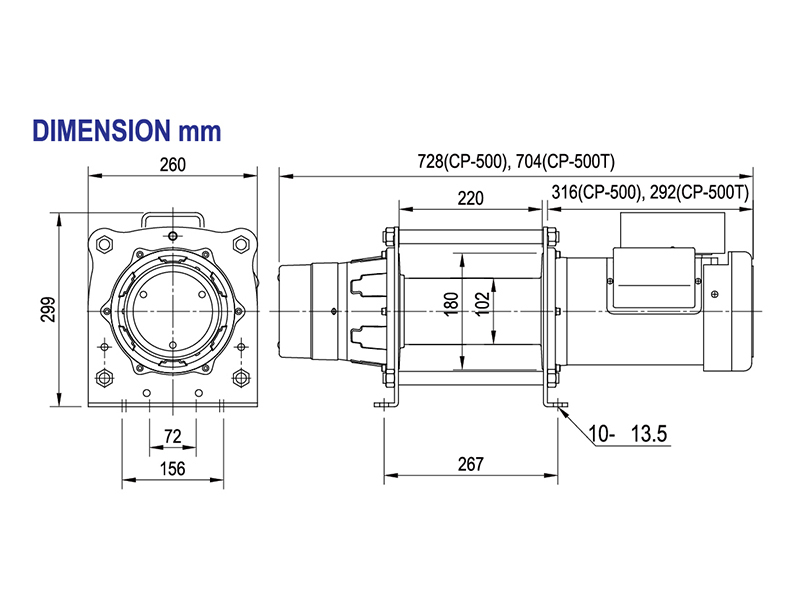

| MODEL | CAPACITY | Motor ( IP44 ) | Lifting Speed | Gear Ratio | Wire Rope | Braking Menthods | Drum Length | Drum Dia. | Drum Flange Dia. | Mounting Bolts Pattern | Packing Diamension | G.W |
| CP-500T | 500kg | 1.8kw x 415v | 12-18 m /min | 42:01:00 | 7mm x 60m | Electromagnetic | 220 mm | 102 mm | 180 mm | 267 x 156 x 267 x 72mm | 750 x 300 x 380 mm | 62kg |
| Layer of Wire rope | Lifting Capacity, kg | Lifting Speed, m/min | Total Rope on the Drum, m |
| 1st | 757 | 12 | 10 |
| 2nd | 671 | 13.4 | 22 |
| 3rd | 602 | 14.9 | 35 |
| 4th | 546 | 16.4 | 50 |
| 5th | 500 | 18 | 60 |
