FEATURES

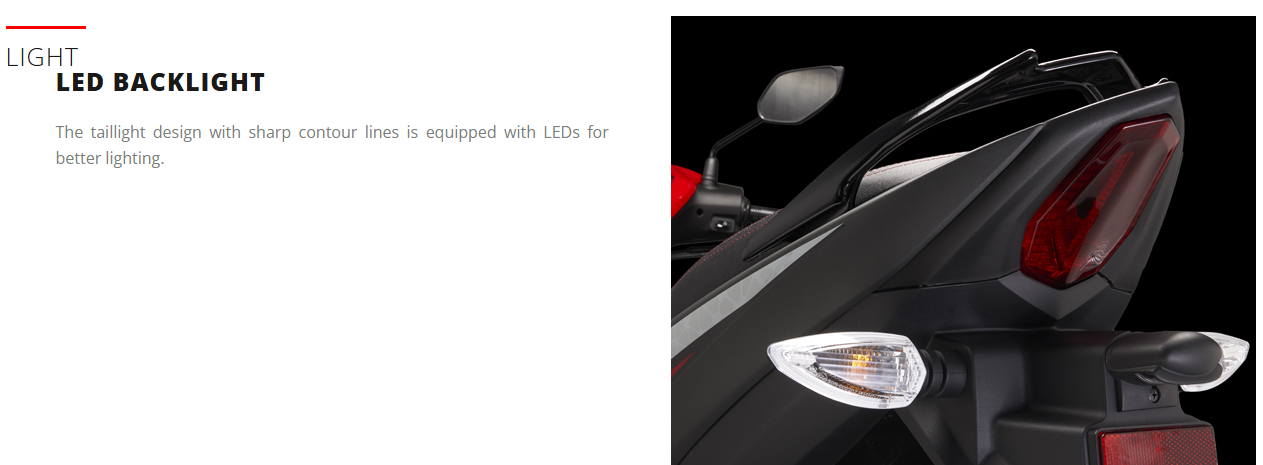

.png)

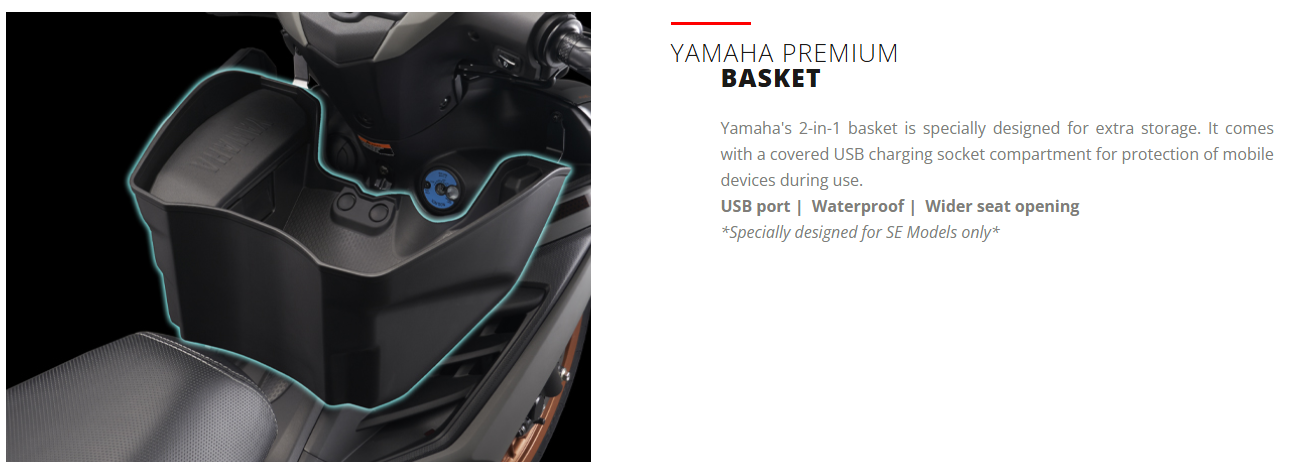

.png)

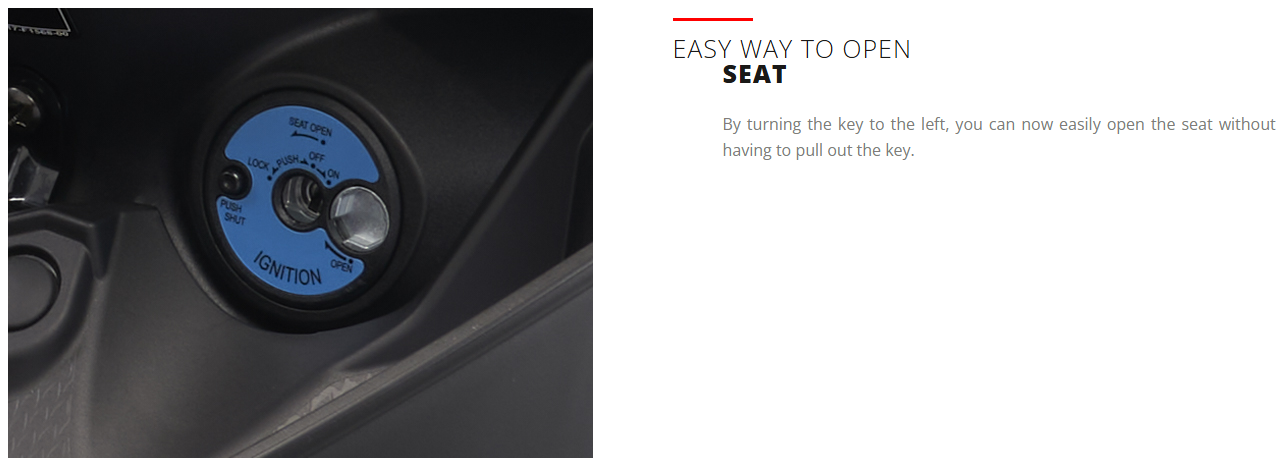

.png)

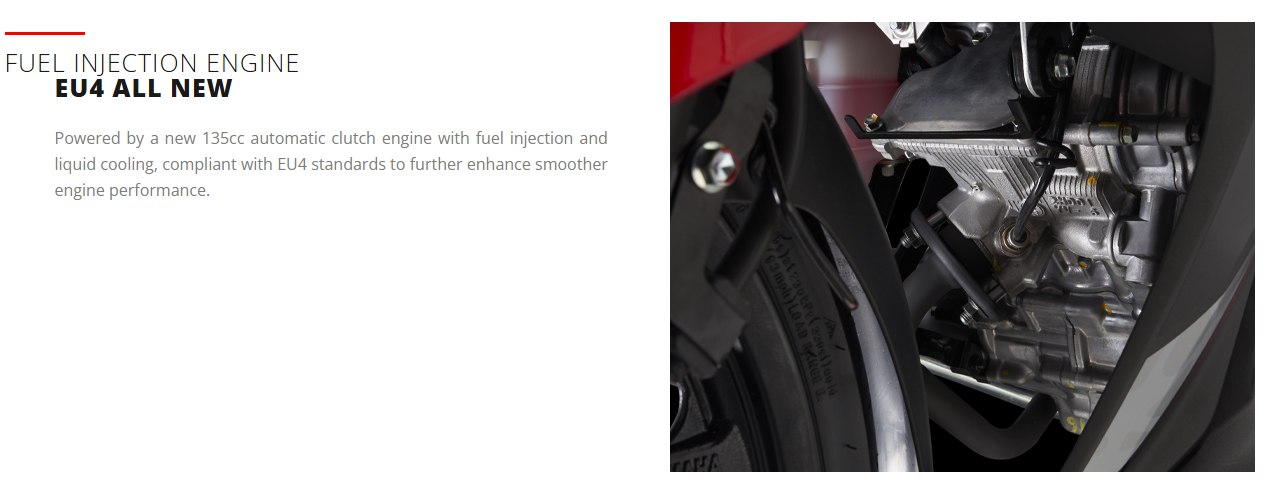

.png)

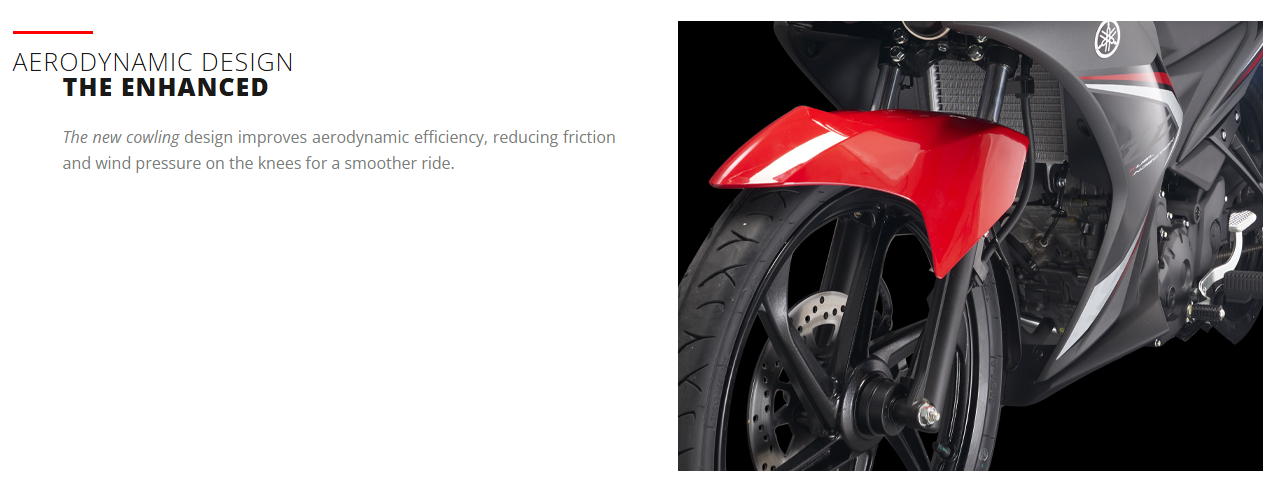

.png)

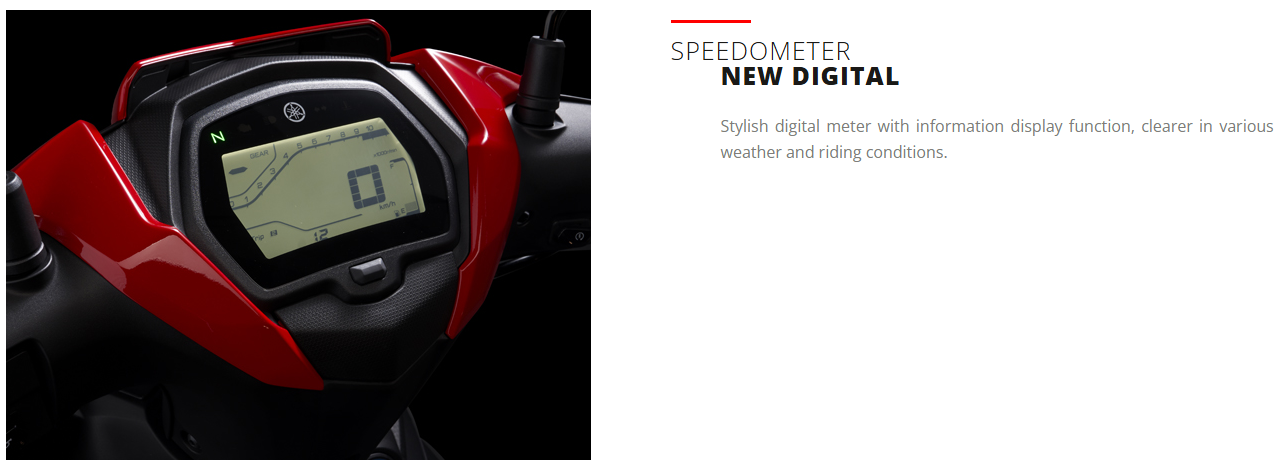

.png)

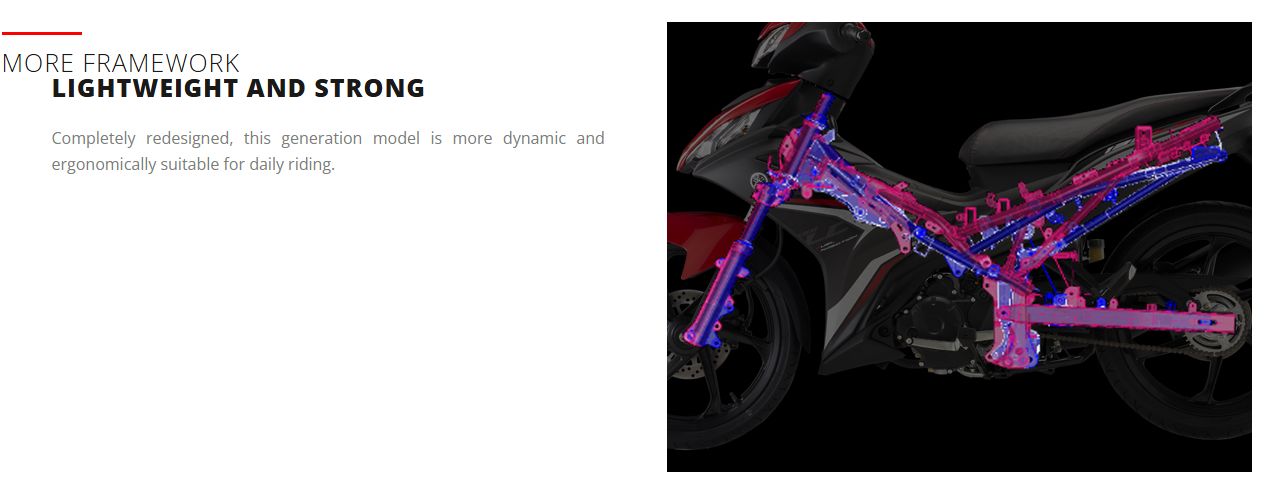

.png)

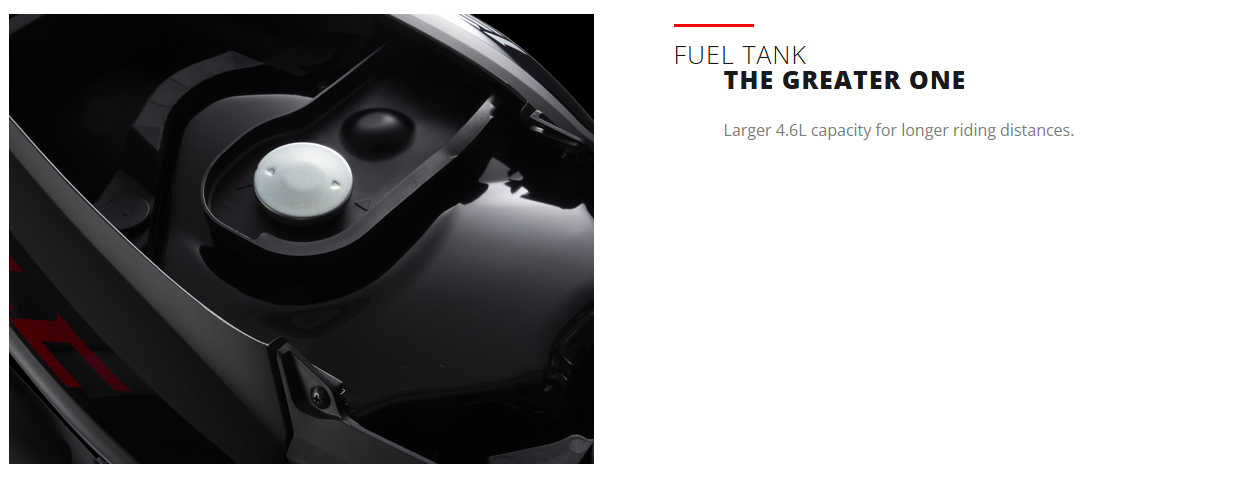

.png)
.png)
SPECIFICATIONS
| Engine | ||
| Type | : | 4-Stroke, 4 Valve SOHC, liquid cooled |
| Bore X Stroke (mm) | : | 54.0 x 58.7 mm |
| Compression Ratio | : | 10.9:1 |
| Max Power | : | 9.3kW / 8,000rpm |
| Max Torque | : | 12.2Nm / 6,000rpm |
| Lubrication System | : | Wet Sump |
| Starter | : | Electric |
| Ignition | : | TCI |
| Chassis | ||
| Front Suspension | : | Telescopic |
| Rear Suspension | : | Swing arm |
| Front Brake | : |
Hydraulic Single Disc
|

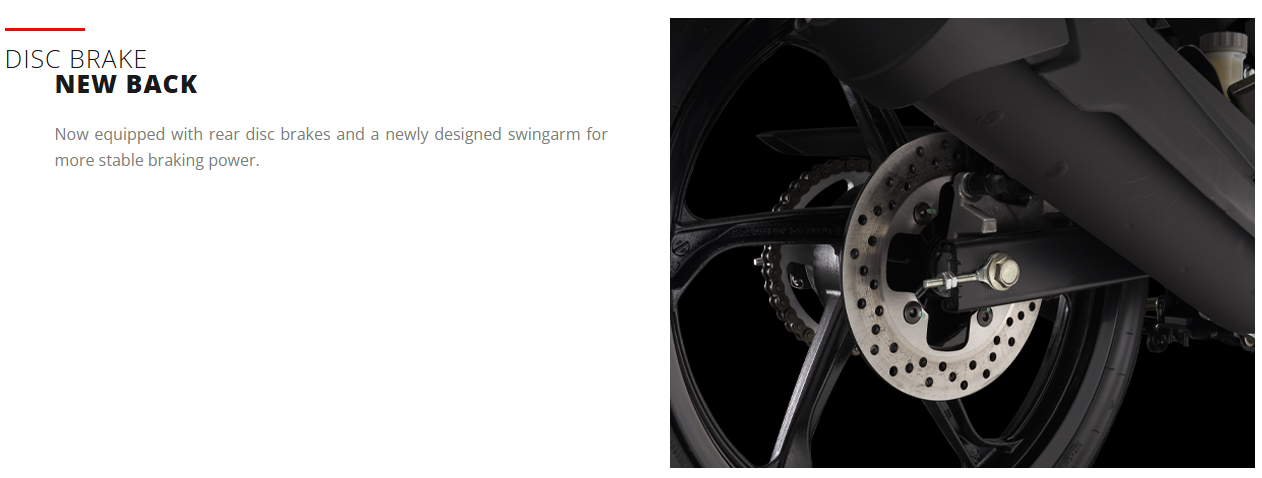

| Rear Brake | : |
Hydraulic Single Disc
|
| Front Tyre | : | 70/90 – 17M/C (38P) |
| Rear Tyre | : | 80/90 – 17M/C (50P) |
| Overall Height (mm) | : | 1,095 |
| Seat Height (mm) | : | 775 |
| Overall Length (mm) | : | 1,945 |
| Overall Width (mm) | : | 690 |
| Ground Clearance (mm) | : | 135 |
| Fuel Capacity (Liter) | : | 4.6 |
| Wet Weight | : | 109 kg |
