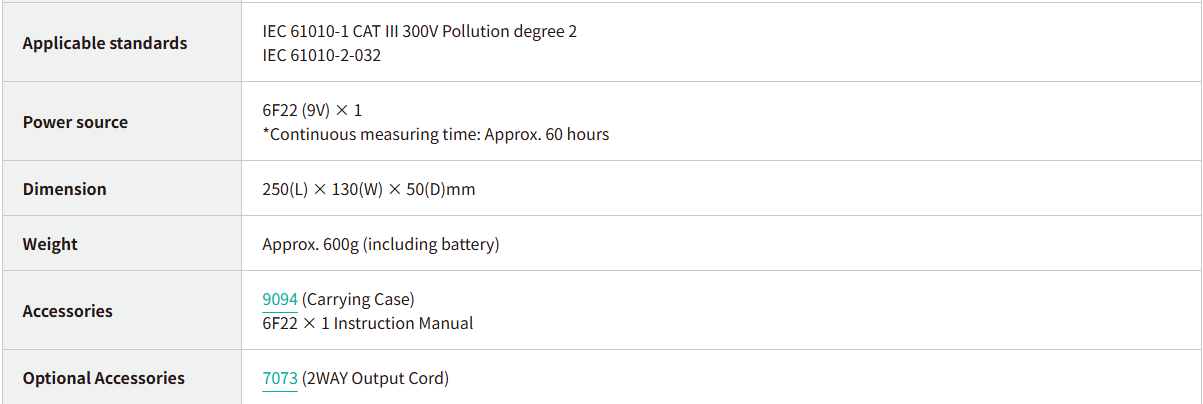

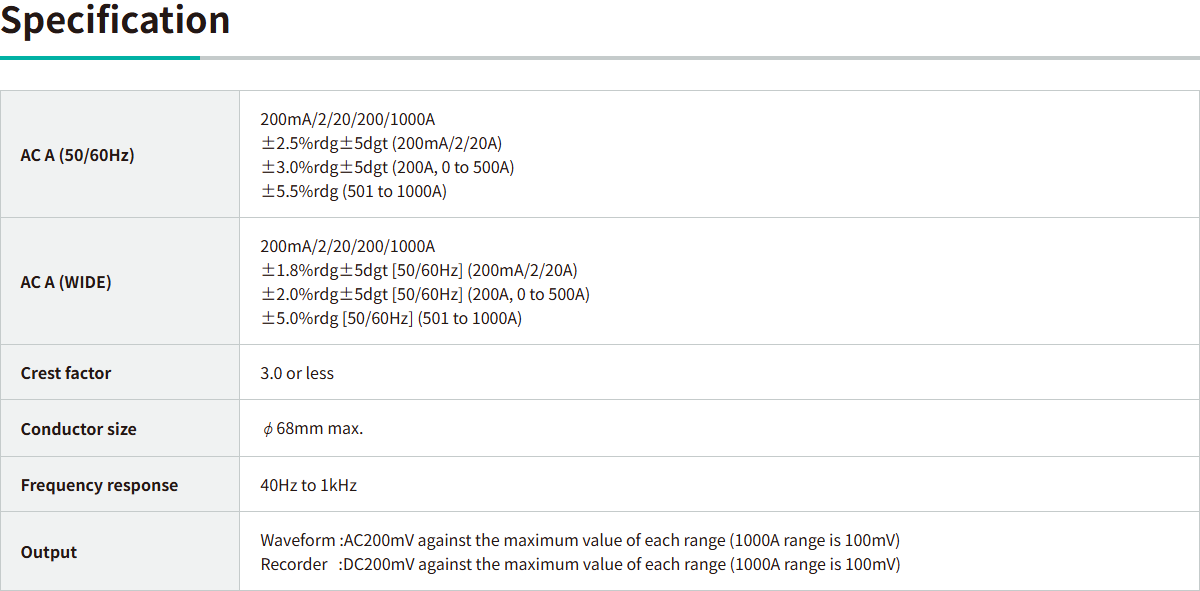

Specification :
| • | Large transformer jaws of 68mm diameter makes it possible to clamp on all three or four wires (3 phases) together for leakage current measurement. |
| • | True RMS enables an accurate measurement for distorted waveforms. |
| • |
Measurement from mA up to AC 1000A |
| • | Frequency filter switch to eliminate the effect of the harmonics. |
| • |

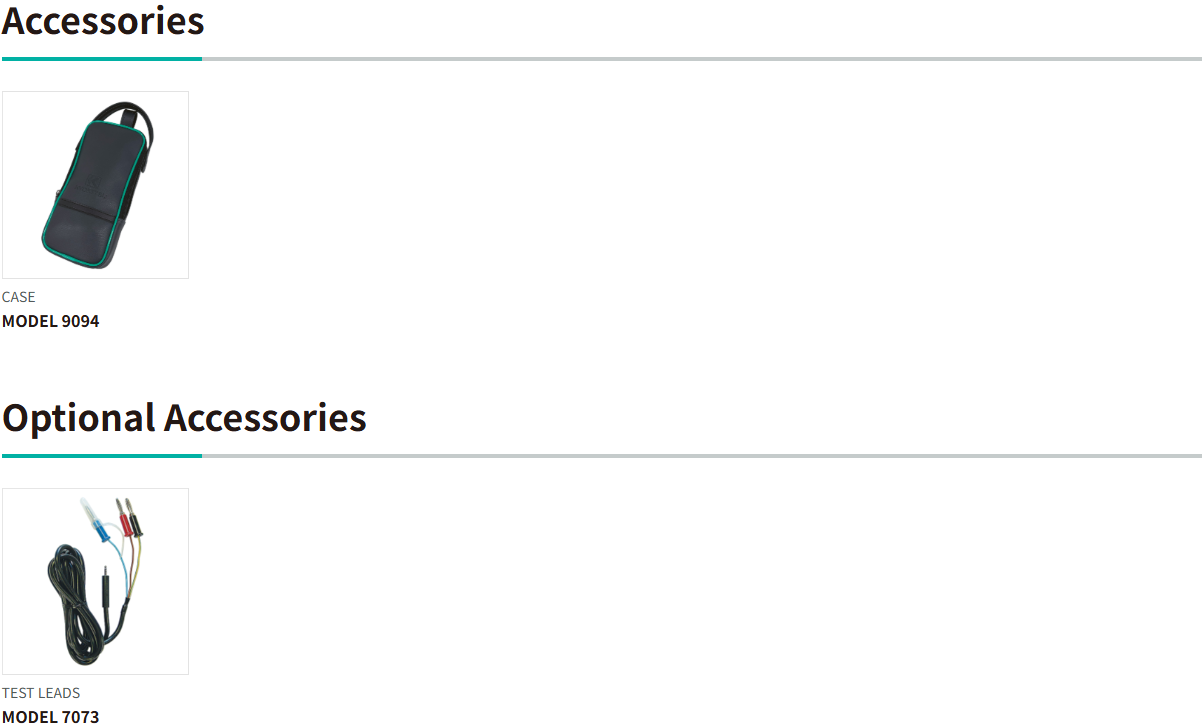

2 way analogue output terminal: AC current detected by transformer jaws is converted to AC and DC voltage. Output cord model 7073 (option) is used for monitoring waveform with an oscilloscope or for connecting to a recorder. |
