BZJ-311

Category: Color Mark Sensor Available
For more information, visit our official website at winstonelectric.com.my

Description

Main Features

BZJ Series Color Code Sensor applies the light emitting and receiving principle. It will send out modulating light, receive the reflecting lights from detected object, and distinguish the color or recognize the existence of objects according the intensity of the receiving signals. it can serve for sensor in the automatic control systems for packing machinery ,printing machinery ,texture and paper making machinery, etc and be used with other instruments to detect the existence of the object marked with color code, pattern code, line or others. it has the functions of self-locating, recognizing colors, rectifying deviation, pattern high sensitivity, quick response speed, strong anti-background interference, compact structure and convenient opera ion, etc.

Size(mm) 38×62×100
Supply voltage 10-30VDC
Ambient temperature 0-50℃
Detecting method Coaxial reflection
Sensing distance 9mm
Chromatogram of light Red、green、blue、white
Facula Circular
Response time 50us
Output current <200mA
Output type NPN
Shell material Metal
Cable Length 2m
Protection  RP-power protection, load short-circuit protection
Weight 500g

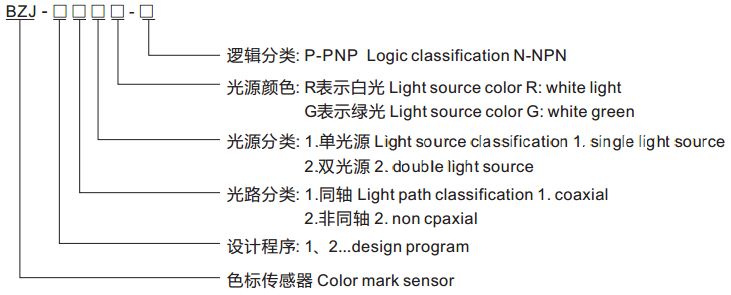

Model and technical parameters
