(MICHAUD) Multitap Aerial Connection Box

APPLICATION

The box with 3 outlets makes it possible to establish up to 6 single phase connections or up to 3 three phase connections at one point of the low voltage aerial bundled network.

The box with 7 outlets makes it possible to establish the junction of 2 overhead networks and the tap contact of 6 single phase or three phase connections maximum.
These boxes can be installed on a façade or a pole.
They can also be used at the network end.

DESCRIPTION


• The colour of the enclosure is ivory.

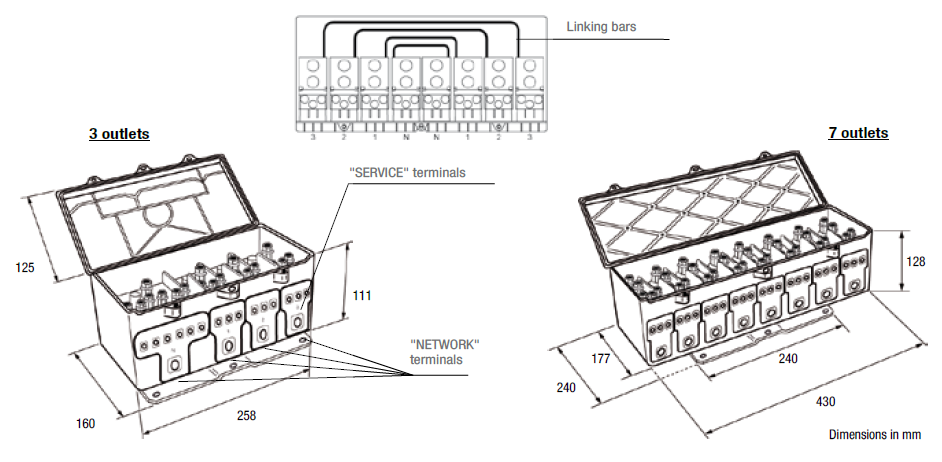

• The box with 3 outlets is equipped with 4 connection blocks (1 neutral + 3 phases). The ''neutral block'' consists of one inlet and 6 outlets: each ''phase box'' consists of one inlet and 3 outlets.
• The box with 7 outlets is equipped with 8 connection blocks.
• The network terminals use insulation piercing technology, and the service terminals use stripping technology. The connection blocks are linked 2 by 2 by linking bars.
• Each connection block is accessible with the contact pin of a test probe.
• The inlet and outlet of the conductors in the lower part are performed by elastomer sealed tulip-shaped sockets.
• The box is delivered with an aluminum alloy integral fixing plate, which is resistant to corrosion. The rigidity of this plate allows it to be installed on uneven surfaces.
• The cover is closed using 2 stainless steel screws.
• An integrated device enables the assembly to be sealed and possibly padlocked.
• The terminal separators inside the box enable the conductors to be connected in any order.
• The degree of protection of the enclosure is IP43 (according to NF EN 60529).
• When the cover is open, the degree of protection of the live parts is IP2X.
• These boxes meet the criteria of HN 62-S-33.

• Based on the assessment by TNB Labs Sdn Bhd. , the above equipment has complied with the specified requirements of TNB Technichal Specification and is hereby accepted for use in the TNB system.
