Beta Three N8 100W (RMS) 8" Two Way Full Range Passive Speaker System

Brand: Beta Three
Product Code: N8

Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship, Events, Clubs, Rehearsal Halls etc. The N Series delivers extraordinary performance at unmatched value.

• High output SPL and sensitivity
• 1 x 8” high power transducer
• 1 x 1.3” diaphragm compression driver
• 90º x 90º controlled coverage pattern
• Heavy duty protective grill
• Injection molded
• 1 x NL4 connector
• Cabinet design for FOH and Monitor use
• Suitable for use as a main system with or without sub speaker augmentation
• Portable system (stand), or permanent installation (wall, ceiling, under balcony)
• Arrays with all active high power N Series sub speakers for extended low frequency, high quality music reproduction
• Monitor kit-optional

Cabinet Dimension:

Specifications
Construction	Plastic
Transducers	1 x 1.3” HF + 1 x 8” LF
Frequency Response (-3dB)	65Hz-18kHz
Rated Power	100W(RMS)
Maximum SPL (1W @ 1m)	92dB
Input Impedance	118dB (Peak)
Rated Impedance	8Ω
Dispersion (H x V )	90° x 90°
Connector	2 x NL4
Dimensions (W x D x H)	277mm (10.9”) x 257mm (10.1”) x 400mm (15.7”)
Packaging Dimensions (1 piece/pack)	330mm (13”) 350mm (13.8”) x x 470mm (18.5”)
Net Weight (1 piece/pack)	6.5kg (14.3lb)
Gross Weight (1 piece/pack)	8.5kg (18.7lb)

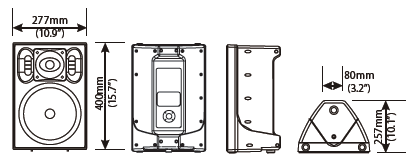

Installation drawing:
