Beta Three N15a 15” Two Way Full Range Active Plastic Speaker

Beta Three N15a 15” Two Way Full Range Active Plastic Speaker

Category: Active Speaker Available
For more information, visit our official website at phgproaudio.com.my

Description

Brand: Beta Three
Product Code: N15a

Product Description:
Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship, Events, Clubs, Rehearsal Halls etc. The N Active Series delivers extraordinary performance at unmatched value.
Key Features and Benefits:

Cabinet Dimension:



Specifications
Construction Plastic
Transducers 1 x 2” HF + 1 x 15” LF
Frequency Response (-3dB) 40Hz-18kHz
Rated Power 100W HF, 300W LF (RMS)
Amplifier Type Class H
Maximum SPL (1W @ 1m) 120dB (Peak)
Input Impedance Balanced 20kΩ, Unbalanced 10kΩ
Rated Impedance
Dispersion (H x V ) 90° x 90°
Connector 2 x XLR
Power Supply 110V/220V
Dimensions (W x D x H) 485mm (19.1”) x 460mm (18.1”) x 700mm (27.6”)
Packaging Dimensions (1 piece/pack) 545mm (21.5”) x 515mm (20.3”) x 800mm (31.5”)
Net Weight (1 piece/pack) 30.5kg (67.2lb)
Gross Weight (1 piece/pack) 33.7kg (55.6lb)

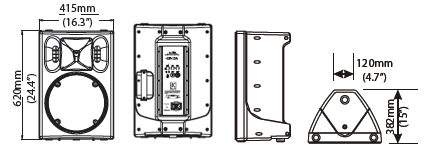

Installation drawing:
