Auto Pre Stretch Pallet Wrapping Machine

Controls

• OMRON PLC.
• Photo-eye pallet height sensor.
• Separate top, bottom & up-down wrap times Selected
• Over wrap time is set to create an over wrap (secure top part of the load better).
• Reinforce wrap times is set to better secure 2 loads placed on top of each other.
• Film Tension Control adjustment on the panel.
• Separate start, reset and emergency stop buttons.
• Manual carriage up / down.
• Variable Turntable Speed.
• Variable Carriage speed for up / down.
• Manual / automatic exchangeable.

Film carriage

• Powered pre-stretch system up to 300% to minimise film consumption.
• Prestretch ratio can be special made according your requirements.
• Carriage door opens for effortless roll change and thread film.
• Film delivery variable speed by separate DC Drive Motor.
• Electronic film tension control adjsutment on panel.
• Film movement-bar with variable speed output.

Turntable

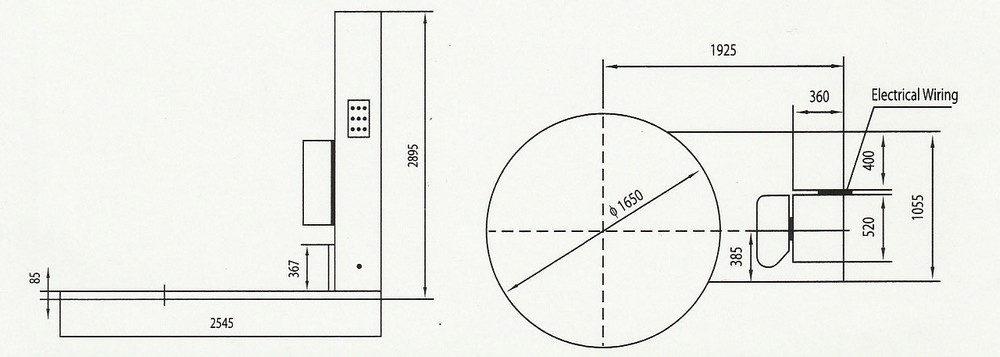

• 1650 mm Diameter Structural steel plate.
• 85 mm low profile turntable.
• Variable turntable speed controlled by frequency controller.
• Position turntable alignment.
• Soft start.

Film carriage Drive

• Heavy duty double-chain carriage lift, calm and safety.
• Film carriage variable speed controlled by frequency controller.

Other

• Hinged mast for easy handling.
• Forklift transportable.

Option

• Ramp (for loading with pallet jack).
