High Performance Pallet Truck - AC Series
The AC Series hand pallet trucks are the standard of high performance heavy duty hand pallet trucks. AC Series are the universal hand pallet truck, suitable for all manual transport tasks over short distances. AC Series hand pallet trucks with innovative design and solid construction ensure long-lasting value and versatility.
Performance of AC Series Hand Pallet Trucks
-
Ergonomic cushioned handle with 3 function trigger for raise, lower and neutral operation.
-
Highest quality pump with special lowering valves and an Anti-Overload System.
-
Optimised hydraulic system design for lifting heavy loads with minimum effort.
-
Totally sealed pump unit with galvanized housing (impervious against air, water or dirt) incorporating an overload release valve.
-
Solid & robust one - piece "C" section forks for greater strength and durability.
-
Fully adjustable push rods to aid level running.
-
Fork tip roller system for smooth transition in and out of pallets
-
The chromed bearing bushes and joints ensure quiet running properties and particularly long service life.
-
Customized configurations and designs can be considered on request.
-
Conforms to EN 1757-2 Standards.
Service Simplicity
Geolift builds long-term value into all of its trucks and the AC Series hand pallet trucks is no exception. Excellent galvanised whole casting hydraulic pump system and valve cartridge design minimizes contamination and testing to over one million cycles to ensures a long life. Geolift also uses self-lubricating bushings to reduce maintenance. Geolift also makes it easy to perform service on the hand pallet truck.
-
Easily replaceable pump valve cartridge
-
Snap rings to connect push rods to lift linkage assembly
-
Bolt and lock nuts used for steer axle mounting
Option of single and double load wheels.
· Additional entry and exit fork rollers guarantees maximum stability and safety for transporting goods on slopes.
-
Ergonomically designed handle with comfortable rubber grip allows optimized safety as well as comfort.
-

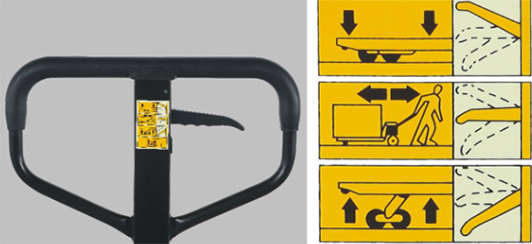

Three position operational handle lever for lifting, transporting and lowering purposes.
-
Lower Position---to lower load, pull up on the finger tip control.
-
Neutral Position—to place finger tip control in this position during pulling the truck or load.
-
Lift Position—to raise load, push down on finger tip control, pump handle to raise the load.
-
Excellent galvanized whole casting hydraulic pump, robust and durable, with fine control of lowering speed and overload valve, low routine maintenance.
-
-

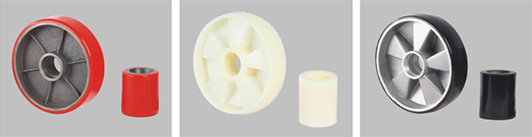

· Option of different coating material for both steering wheel and fork rollers.
-
Polyurethane Ideal for delicate floors with hard wearing and non-marking property, quiet and durable.
-
Nylon---low drag efforts, high resistance to chemicals, non-marking, preferred in food, fishing and chemical industries with smooth level floors.
-
Rubber---Best choice for quiet and durable demands, ideal for smooth and rough floors.
