Network Video Recorder With RAID Storage (SNVR-9632R_9664R NVR)

Network Video Recorder With RAID Storage (SNVR-9632R_9664R NVR)

Category: Kodio Available
For more information, visit our official website at uniqueamp.com.my

Description

Introduction
SNVR-9600 series NVR (Network Video Recorder) is a new generation recorder developed by Kodio independently.  Combined with multiple advanced technologies, such as audio and video decoding technology, embedded system technology, storage technology, network technology and intelligent technology, it can both work alone as a recorder and coorporate with other device to build a comprehensive surveillance system.
The SNVR-9600 series NVR can be widely applied in the areas of finance, public security, military, communication, transportation, education etc.

Key Features
•   Dual-OS design to ensure high reliability of system running
•   ANR technology to enhance the storage reliability when the network is disconnected
•   HDD hot swap with RAID0, RAID1, RAID5 and RAID10 storage scheme configurable
•   H.265/H.264/MPEG4 video formats
•   Connectable to the third party network cameras
•   Up to 64 IP cameras can be connected
•   Recording at up to 12MP resolution
•   Support live view, storage, and playback of the connected camera at up to 12MP resolution
•   HDMI1/VGA1 and HDMI2/VGA2 outputs provided
•   HDMI1 Video output at up to 4K (3840 x 2160) resolution
•   Up to 8 SATA interfaces and 1eSATA interface connectable for recording and backup
•   Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format.
•    2 self-adaptive 10M/100M/1000M network interfaces, and two working modes are configurable:   multi-address and network fault tolerance
•   Centralized management of IP cameras, including configuration, information import/export,   real-time information display, two-way audio, upgrade, etc.
•   Connectable to smart IP cameras from Kodio and the recording, playing back, and backing up   of VCA alarms can be realized
•   VCA detection alarm is supported
•   Instant playback for assigned channel during multi-channel display mode .
•   Smart search for the selected area in the video; and smart playback to improve the playback   efficiency
•   Supports HDD quota and group modes; different capacity can be assigned to different   channels

Specification
Item SNVR-9632R SNVR-9664R
Video /Audio
Input
IP video input 32CH 64CH
Up tp 12 MP resolution
Two-way audio 1-ch, BNC (2.0 Vp-p, 1kΩ)
Network Incoming bandwidth 320Mbps or 200 Mbps (When RAID is enabled)
Outgoing bandwidth 256Mbps, or 200 Mbps (when RAID is enabled)
Remote bandwidth 128
Video / Audio
output
Recording resolution 12MP /8MP /6MP/5MP/4MP/3MP/1080P/ UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
VGA1/HDMI1 Output resolution HDMI1:4K (3840 x 2160)/60Hz, 4K (3840x2160)/30Hz, 2K(2560x1440)/60Hz,
1920 x 1080P/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
  VGA1 : 2K (2560x1440)/60Hz, 1920x1080p/60Hz, 1600x1200/60Hz,
1280x1024/60Hz, 1280x720/60Hz, 1024x768 /60Hz
VGA2/HDMI2 output resolution 1920 x 1080P /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz
Audio output 2-ch, RCA (2.0Vp-p, 1kΩ)
Decoding Decoding format H.265/H.264/MPEG4
Live view / Playback  resolution 12MP /8MP /6MP/5MP/4MP/3MP/1080P/ UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Synchronous playback 16-ch
Capability 4CH@4K, or 16CH@1080P
Hard disk SATA 8 SATA interfaces for 8HDDs
eSATA 1 eSATA interface
Capacity Up to 6TB capacity for each HDD
Disk Array Array Type RAID0, RAID1, RAID5, RAID10
Number of Array 4

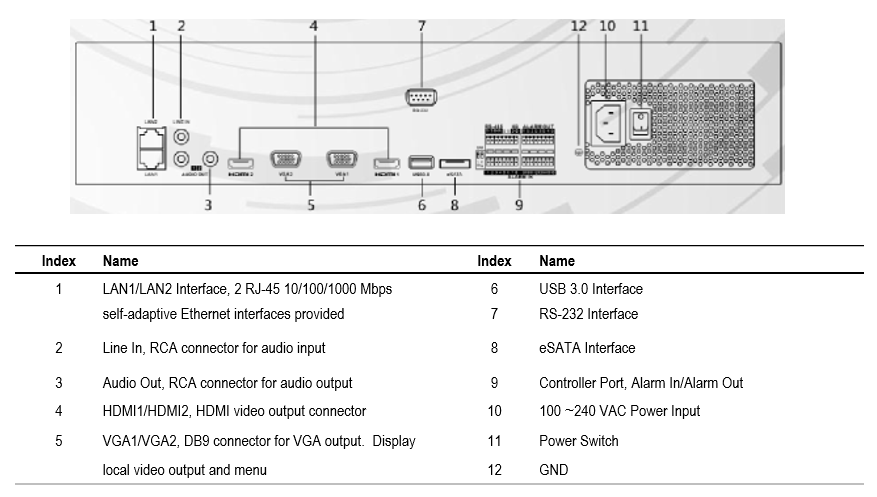

External
Interface
Network interface 2 RJ-45 10/100/1000 Mbps self adaptive Ethernet interfaces
Serial interface RS-232; RS-485; Keyboard
USB interface Front panel : 2 x USB 2.0; Rear panel: 1 x USB3.0
Alarm in/out 16/4
General Power supply 100~240 VAC, 50~60Hz
Max. power 200W
Consumption (without hard disk) < 30W
Working temperature -10°C~+55°C (14°F~131°F)
Working humidity 10~90%
Chassis 19-inch rack-mounted 2U chassis
Dimensions (WXDXH) 445 x 470 x 90mm (17.5" x 18.5" x 3.5")
Weight (without hard disk) < 10KG (22 lb)
