Features
1. The series are more preferable working in Milling Machines, NC & CNC Machines and Machining Centers.

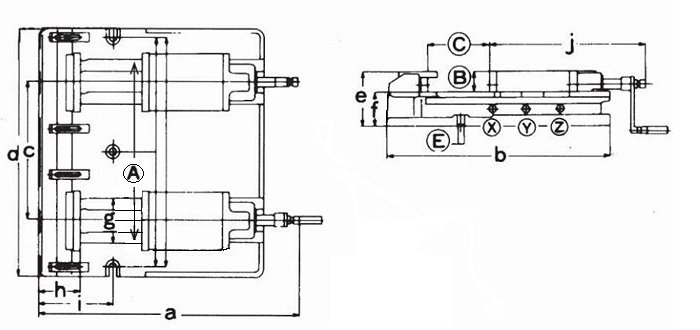

| MODEL | A | B | C | a | b | c | d | e | f | g | h | i | j |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AHG-2P-6 | 484 | 53 | 300 | 807 | 610 | 330 | 550 | 135 | 82 | 116 | 123 | 205 | 380 |
Unit/mm
| MODEL | Clamping range X | Clamping range Y | Clamping range Z | Clamping force (kg) | Weight(kg) |
|---|---|---|---|---|---|
| AHG-2P-6 | 0~100 | 98~200 | 198~300 | 5000 | 145 |
