Description
Features
1. Self Centring Precision Vise is suitable for 4 and 5 Axis CNC Rotary Table usage, either in horizontal or vertical machining.
2. Vise precision of its center repetition position is ±0.01mm.
3. Using high quality alloy steel Slideway has high frequence heat treatness at HRC 45 or more to keep the accuracy and its long use life.
4. Vise hard jaw material is full Steel and heat treatness at HRC 55° or more.
5. Special design for the Self Centring Precision Vise to prevent work piece from bending during clamping and machining. Thus,it has the best solution in clamping the work piece.
Model : SCV127
Description
SELF CENTRING VISE

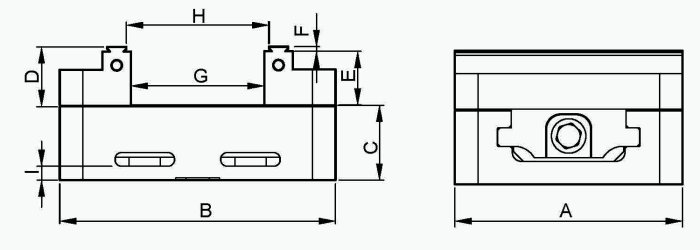

Unit/mm
|
Model |
SCV1275 |
SCV1276 |
SCV1278 |
|
A |
127 |
127 |
127 |
|
B |
127 |
153 |
210 |
|
C |
42 |
42 |
42 |
|
D |
33 |
33 |
33 |
|
E |
30 |
30 |
30 |
|
F |
3 |
3 |
3 |
|
G |
46 |
72.5 |
122 |
|
H |
51 |
79 |
127 |
|
I |
7.62 |
7.62 |
7.62 |
|
J |
63.5 |
76.5 |
101.5 |
|
K |
63.5 |
63.5 |
63.5 |
|
L |
101 |
101 |
101 |
|
M |
96 |
96 |
96 |
|
N |
96 |
96 |
96 |
