It uses the FANUC robot arms and FANUC operating system imported from Japan, making it convenient to use.
.png)

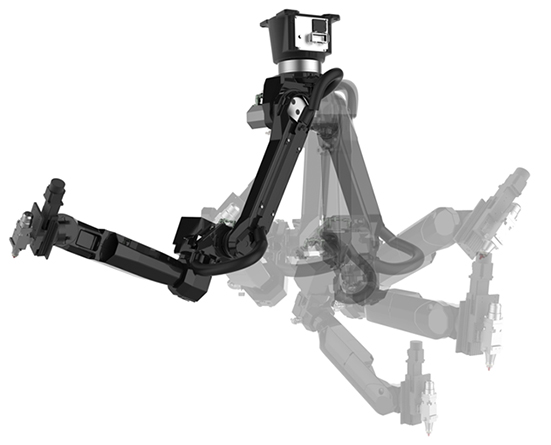

The machine can cut non-standard shape material. It can be six axis feed and is able to cut from 360 degree. Moreover, some non-standard materials, such as some with fixed geometry and angle, can also be cut by it.
Large processing area. The maximum working radius of six-axis is 2010mm.

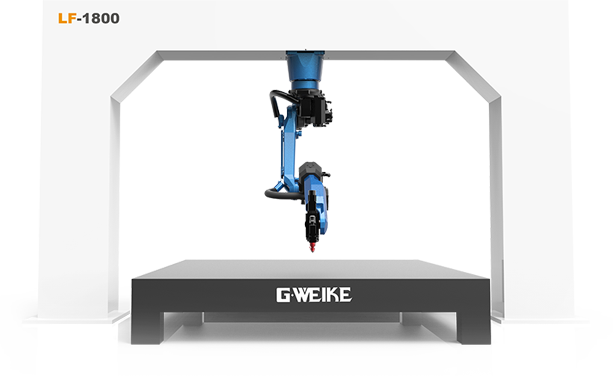

Equipped with a gantry which can expand the processing space and ensure the flexibility of cutting head.
| Machine model | LF1800 |
| Laser type | Imported fiber laser source |
| Laser power | 500W 750W 1000W ( optional) |
| Working area | 1800mm |
| Repeated positioning accuracy | ±0.05mm |
| Installation | Floor stand /Hang upside down /Wall mounted |
Industry Applications

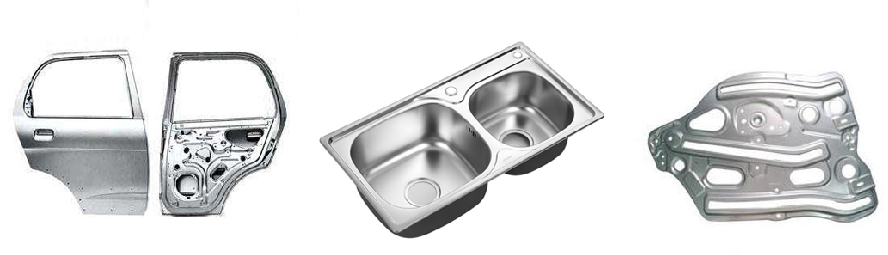

There are various irregular shape materials for processing automotive sheet metal, 3d kitchen ware and sports equipment. General fiber laser cutting machine can not achieve the precise processing of irregular materials, but LF1800 can play well in these industries.
Automotive sheet metal, 3D kitchen tools, sporting equipment, etc.
