LF3015GCR Plate And Tuble Laser Cutting Machine

LF3015GCR Plate And Tuble Laser Cutting Machine

Category: Lube And Plate Fiber Laser Available
For more information, visit our official website at abilitystech.com

Description

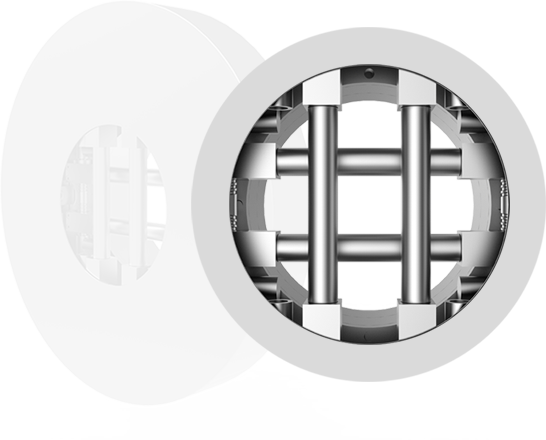

Clamp Design

It adopts an electric clamp design on both sides and it can modulate the center automatically.
The diagonal adjustable range is 20-200mm.

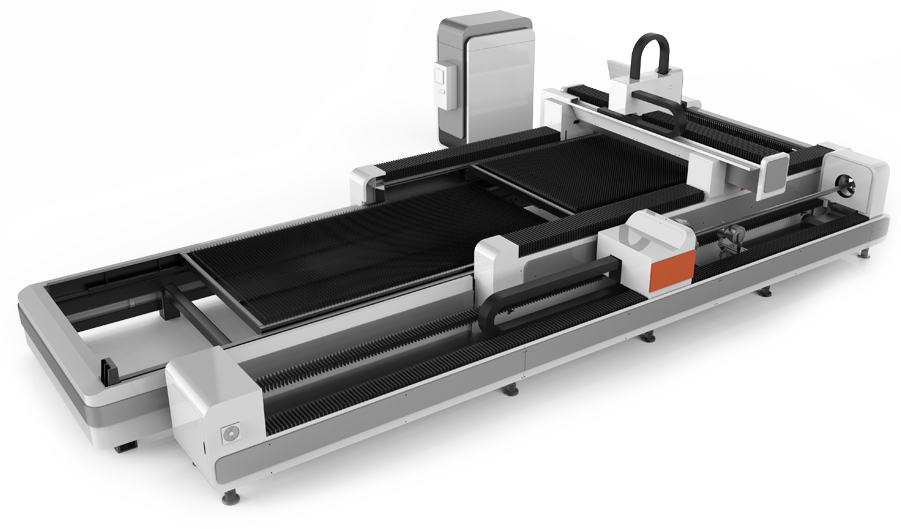

Exchanging Platform

It adopts an up and down exchange platform, and the converter is responsible for controlling the exchanging motor.
The machine is able to finish the platform exchanging within 15s.

The Third Generation Aviation Aluminum Gantry


3rd Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

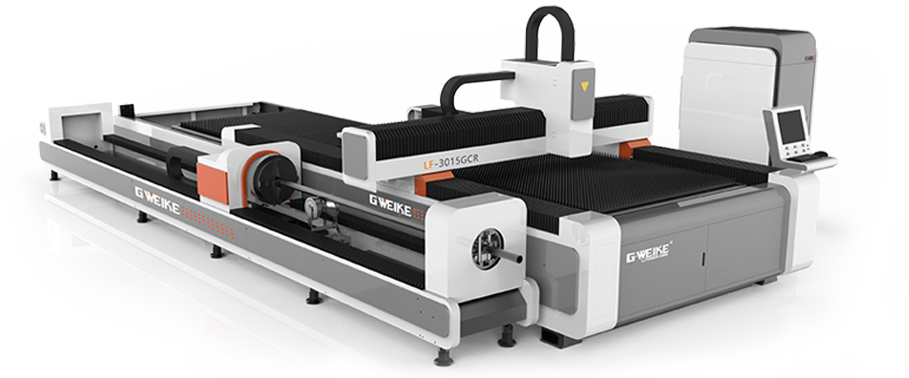

Dual Use and Cost-saving

LF3015GCR fiber laser cutting machine can not only cut metal plates, but also metal pipes.
It has many uses and can save the space of more than 50%, which effectively improve productivity.

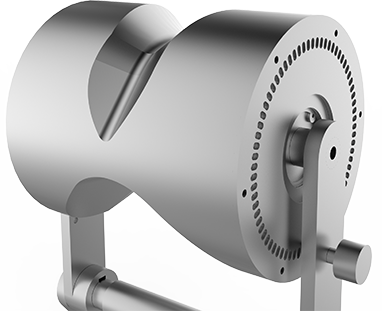

Fractional Automatic Support Installation

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.

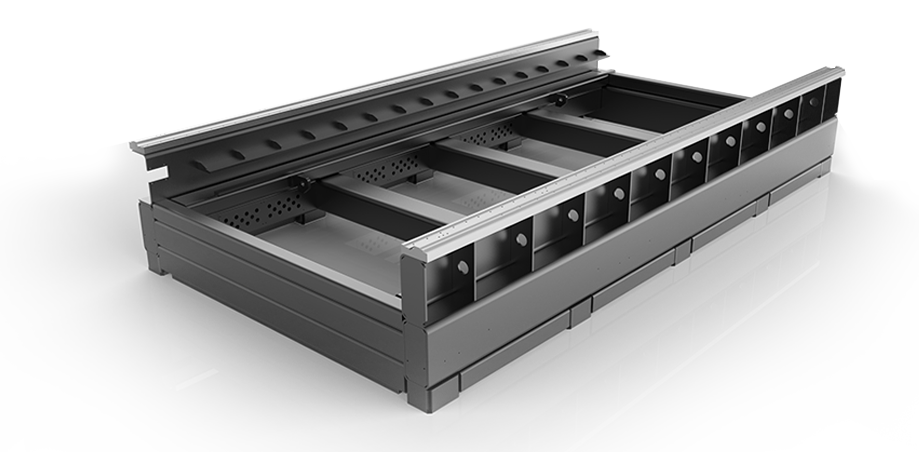

The Segmented Rectangular Tube Welded Bed

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.


Without manual operation, it can focus automatically

  • Without manual focusing

    The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
  • Bigger adjustment range

    Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
  • Long service life

    Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

Transmission and Precision

 German Tech Quality

G·WEIKE fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and German Neugart reducer.
The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to 10 years.



Technical Parameters


Machine model LF3015GCR
Laser power 1000W 2000W 3000W 4000W 6000W 8000W(Optional)
Dimensions 7800*3580*2150mm
Working area 3000mm x 1500mm
Repeat positioning accuracy ±0.02mm
Maximum speed 120m/min
Maximum acceleration 1.5G
Specified voltage and frequency 380V 50Hz/60Hz

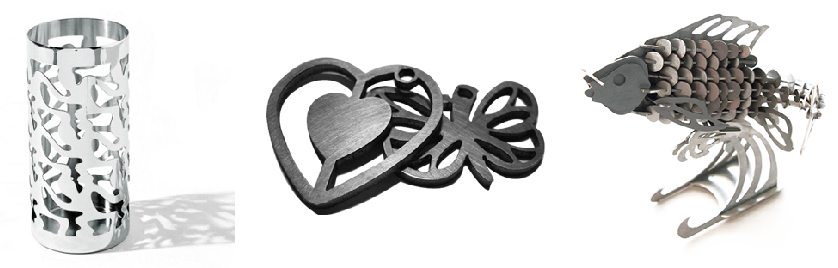

Industry Applications

Widely used in the processing of metal tube structure, advertising board, spring coil slic, textile machinery parts, kitchen utensils, car, machinery, elevator, Hv/lv electrical ark production, electric parts, subway line spare parts, etc.
Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum- plating zinc plate, copper and other metals.
