Swan Oil Less Air Compressor 15HP 8Bar 1320L/min 275kg SDU-415

Description

Description

Model: SDU-415

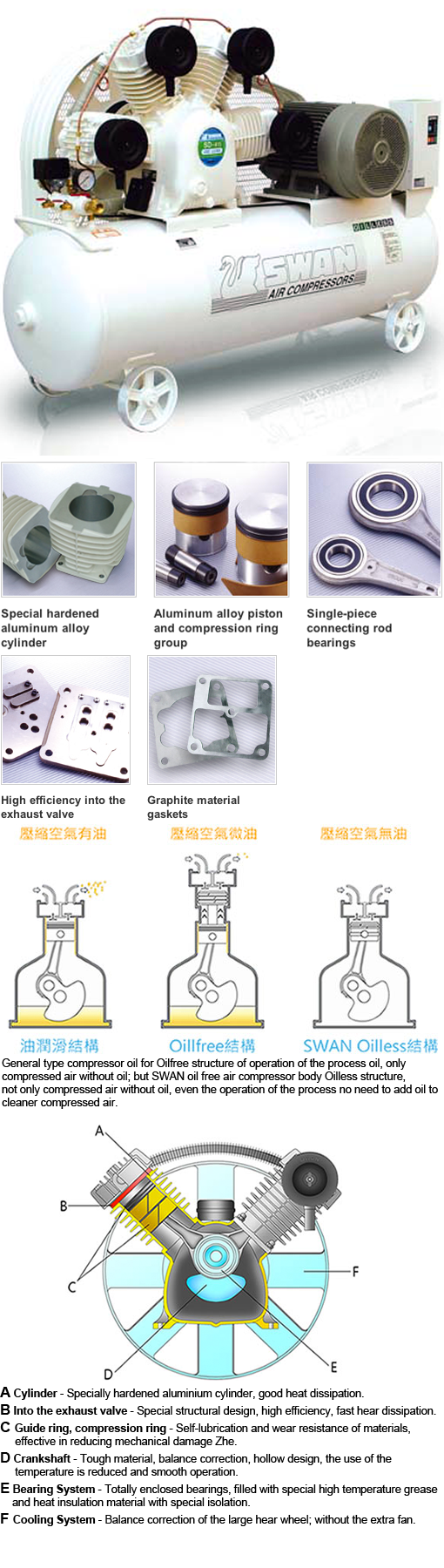

The SWAN exclusive patented oil free air compressor body, the real oil Oilless structural design, Oil-free clean compressed air, greatly reduce the cost of the Clean Air System, To provide better air quality. Environmental protection, without the addition of lubricants, oil-free clean compressed air quality, suited to the needs of the electronics, hospitals, laboratories, food manufacturing industry.

Features

• No oil in the compressor. Completely eliminate oil from the compressed air system.
• Low maintenance and less operational costs.
• Air receiver made by stainless steel or painted with powder coating for rustproof.
• Various options for different application.
• The best solution for Pure, oil-less quality air.

Control System

• Pressure Switch System 'P' Type
  The automatic pressure switch will stop and restart the compressor according to air demand.
  It is normally recommended for intermittent operation and smaller compressor units.

Specifications

Motor	15 hp
Working Pressure (kg/cm²)	8 Bar
Compressor Speed	950 rpm
F.A.D	1320 L/min
Tank Capacity	300 Liter
Compressor Block Physical Dimension (L x W x H)	850mm x 560mm x 700mm
Weight (Bare Head only)	105kg
Compressor Unit Physical Dimension (L x W x H)	1750mm x 650mm x 1300mm
Weight (Whole Unit)	275kg
