Application
Instrumentationcable for optimal, lossless transmission of analogous and digital signals in measurement and process control technology. Suitable for intrinsically safe systems zone 1 and zone 2 group II classified areas acc. IEC 60079-14. Suitable for dry and humid rooms as well as outdoor use and laying underground.
Technical Specification :
| Conductor material | Bare copper strand |
| Core insulation | XLPE (cross-linked polyethylene) |
| Stranding | Pairs stranded in layers |
| Outer sheath | PVC |
| Shield | Plastic clad aluminium foil (24 μm) with subjacent tinned drain wire 0.5mm² (7x0.30 mm) |
| Shield | Galvanized round or flat steel-wires (SWA) |
| Rated voltage | 300 V |
| Operat. temp. fixed min/max | -40°C / +70°C |
| Operat. temp. moved min/max | -5°C / +50°C |
| Burning behavior | Self-extinguishing and flame-retardant acc. to IEC60332-1-2 and IEC 60332-3-24 (Cat. C) |

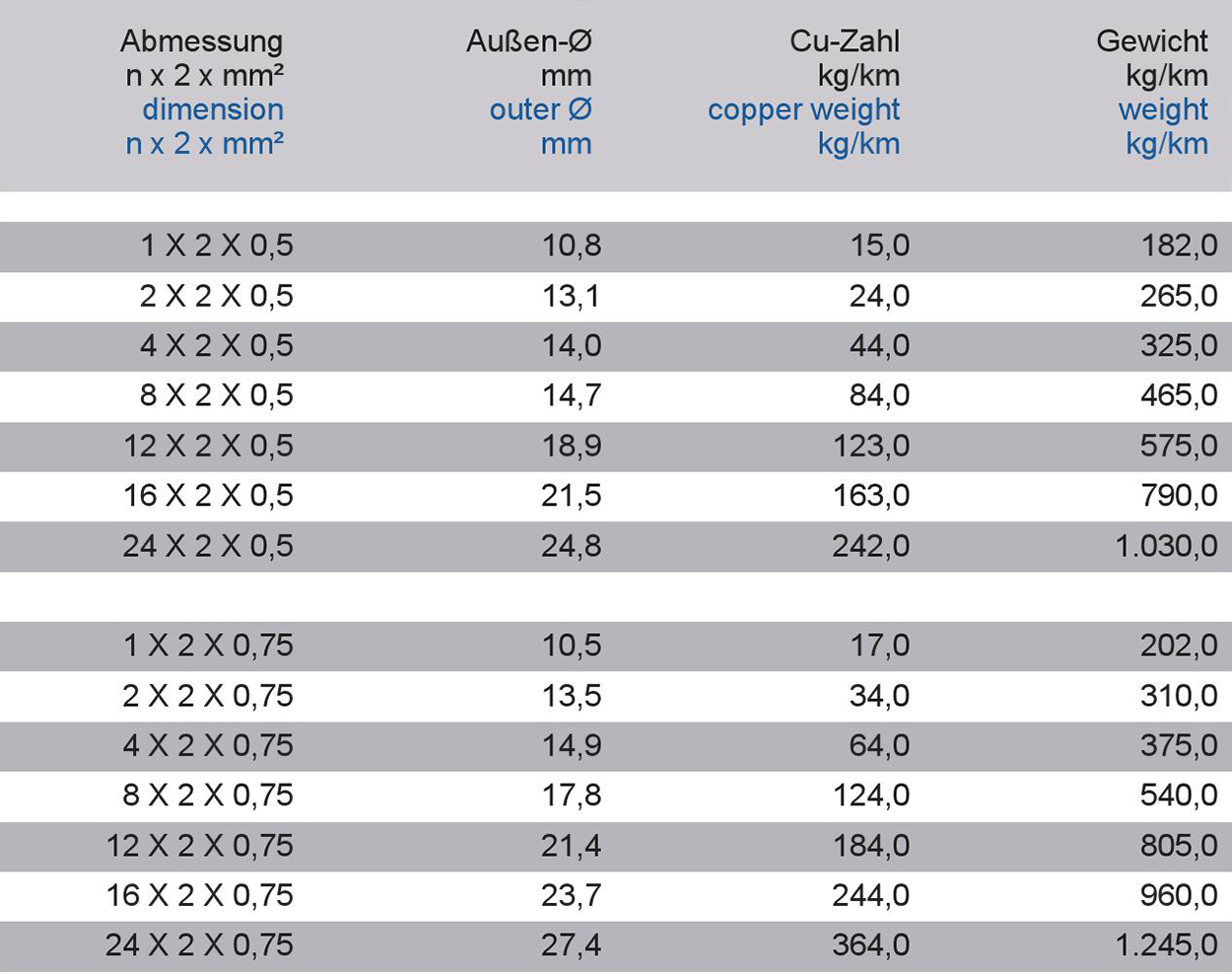

YSWA_FL_000002_01.jpg)

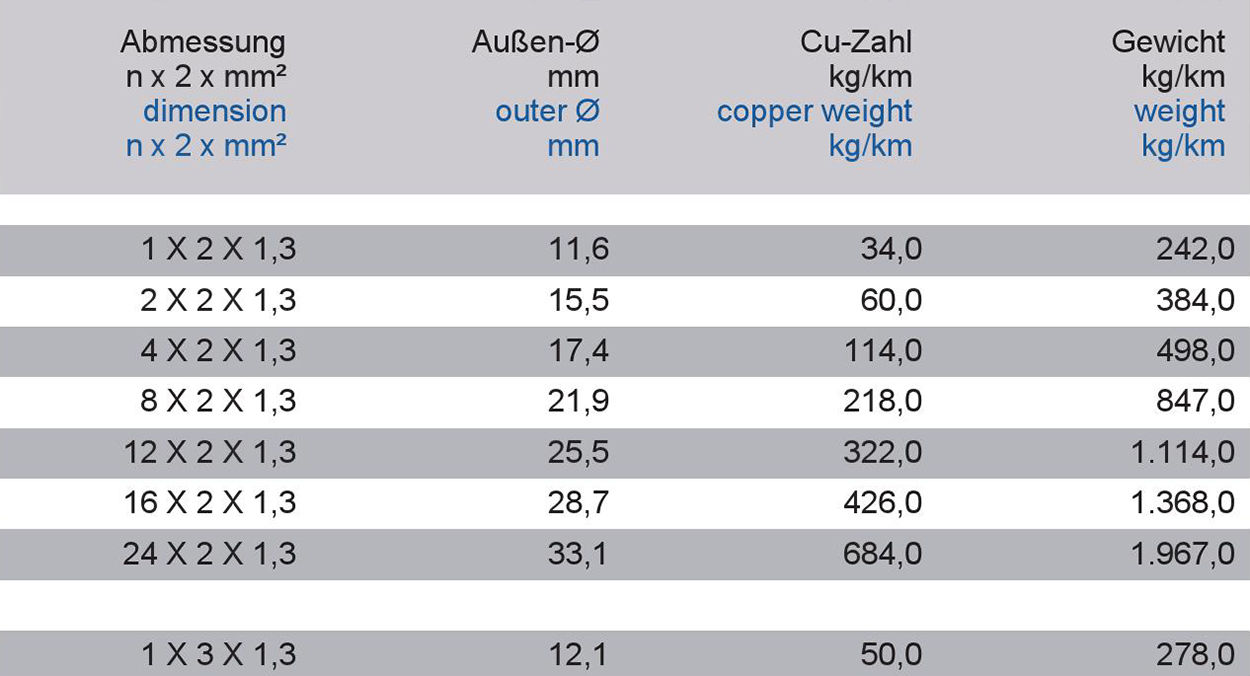

YSWA_FL_000002_02.jpg)
