This welding head is a specially designed TIG welding head for small tube to tube-sheet, suitable for carbon steel, stainless steel, mainly for protruded tube, flush tube and indented tube connection with or without wire feeding.
It can weld high protection requirement material such as titanium alloy with tow cover. Support equipment: i-Arc400 Programmable Orbital Welding Power Source.
Application: chemical, food, medicine, heat exchanger, power plant, military facility, nuclear facility and so on.
| Material | Carbon steel, stainless steel, titanium alloy(with cover) |
| Tube OD(mm) | Φ8~Φ32(3/8'~1 1/4') |
| Connection | Retract tube, protrusion tube, flush tube |
| Rotation Speed(rpm) | 0.37~7.39 |
| Arc Adjusting Distance(mm) | 18 |
| Max Wire Feeding Speed(mm) | 1800 |
| Wire Diameter(mm) | Φ0.8 |
| Protective Gas | Ar |
| Cooling | Water |
| Cooling flow(ml/min) | ≥600 |
| Duty cycle | 300A 60% |
| Weight(kg) | 11(no cable) |

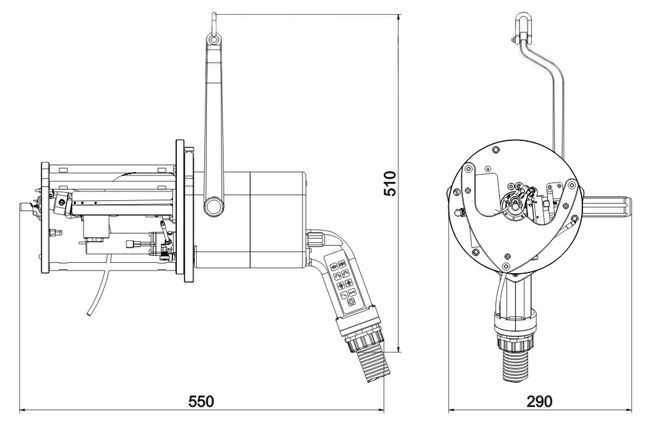

| Dimension (mm) | 550x290x510 |
