Product Description
This is a specially designed TIG welding head for tube to tube-sheet, which is used for carbon steel, stainless steel, mainly for flush tube connection without wire feeding.
Support equipment: i-Arc200 and i-Arc400 programmable orbital welding power source.
Application: chemical, food, medicine, heat exchanger, power plant, military, nuclear facility, and so on.
Features
-
Widely used in power plant/condenser stainless steel/titanium alloy tube to tube-sheet welding
-
Without wire feeding, small size and light, easy for operation
-
Expandable collet positioning design, precise position
-
Closed welding achieving perfect welding quality
-
No wire winding, enhanced water cooling system, high duty cycle for long time using
Specification
|
Material |
Carbon steel, stainless steel, titanium alloy |
|
Tube OD(mm) |
Φ16 - Φ38(5/8' - 1 1/2') |
|
Connection |
Flush tube |
|
Tungsten OD(mm) |
￠2.4 |
|
Rotation Speed(rpm) |
0.6~12 |
|
Welding Angle |
0º, 7º option(standard 7º) |
|
Protective Gas |
Ar |
|
Cooling |
Water |
|
Cooling Flow(ml/min) |
≥600 |
|
Rate current |
100A 60% |
|
Weight(kg) |
3.65(no cable) |
|

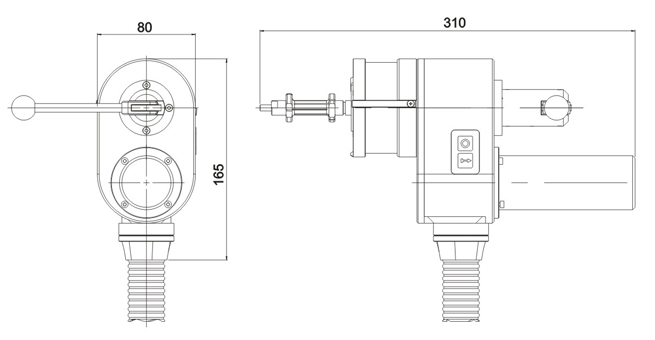

Dimension(mm) |
310x80x165 |
