Most popular inner hole welding expert
-
Suitable for inner hole tube to tube-sheet welding, with AVC tracking and long distance no- twisting
Product Description
This welding head is specially designed for inner tube to tube-sheet TIG welding, suitable for carbon steel, stainless steel, fusion, wire feeding or wire feeding after self-fusion. Tube ID should >φ25mm.
Support equipment: iArc400 Programmable Orbital Welding Power Source.
Application: Boiler, heat exchanger, military, power plant, petrochemical and so on.
Features
-
Inner hole with wire feeding, meet various process requirements
-
No-wire-twist design and special wire feeding design to meet complex single-or multi-layer welding requirements
-
Auto AVC controlling on or off for manually adjusting
-
Specially made water cooling construction
-
Wire feeding with no twisting, with integrated wire feeding, 1.0KG wire spool
Specification
|
Material |
Carbon steel, stainless steel |
|
Tube OD(mm) |
≥Φ25 |
|

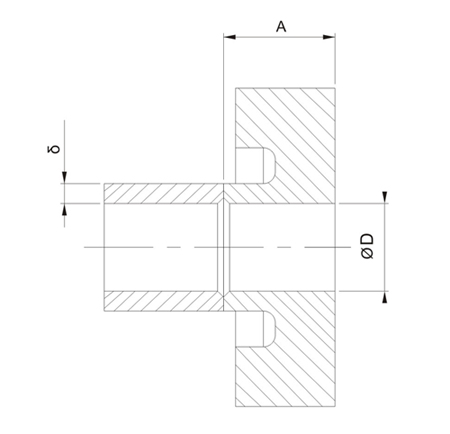

Depth for Inner Tube(mm) |
20~80 |
|
Connection |
Tube insert, flush tube |
|
Tungsten Diameter(mm) |
￠2.4 |
|
Rotation Speed(rpm) |
0.37~7.39 |
|
Arc adjusting Distance(mm) |
15 |
|
Max Wire Feeding Speed(mm/min) |
1800 |
|
Tungsten Diameter(mm) |
￠0.8 |
|
Protective Gas |
Ar |
|
Cooling |
Water |
|
Cooling Flow(ml/min) |
≥600 |
|
Weight(kg) |
12(no cable) |
|
Dimension(mm) |
570x290x510 |
