Description

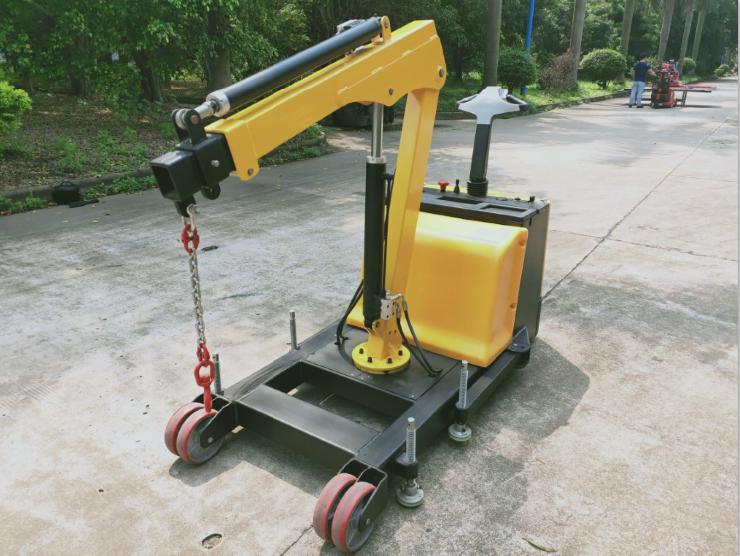

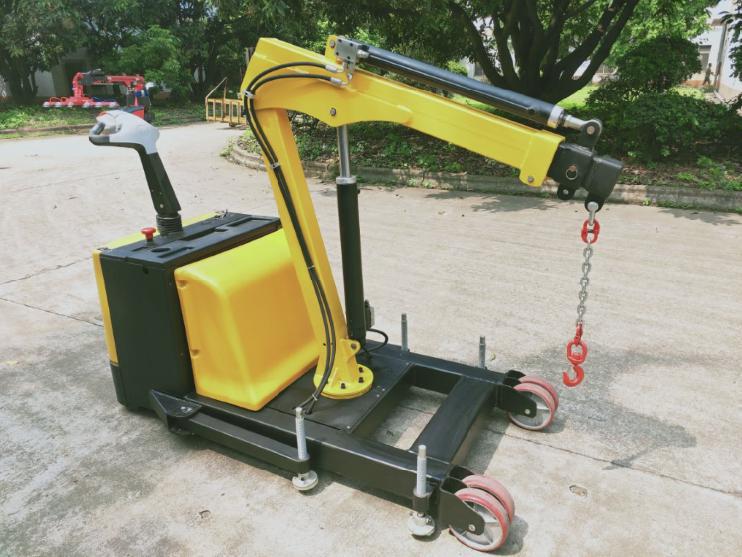

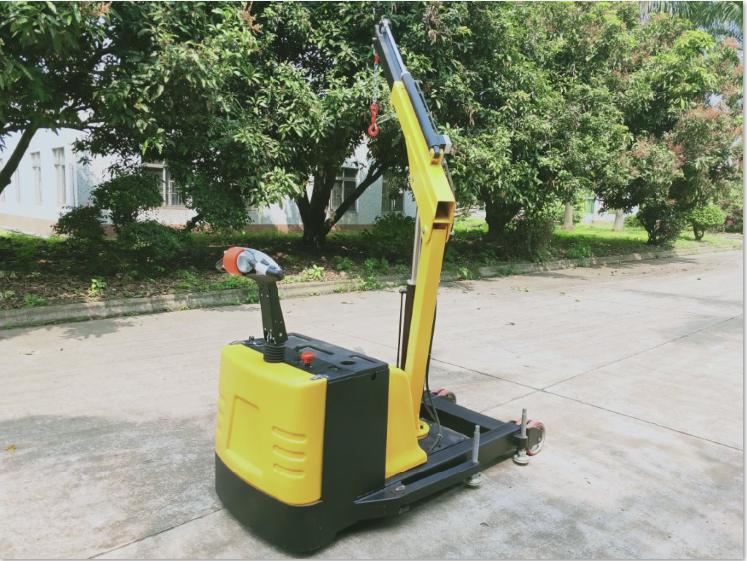

EPSC Serial Workshop Floor Crane is widely used in warehouse to lift the goods or heavy materials.With battery fully powered, the operator can control its moving and lifting easily, quickly and safely.
The type floor crane can be rotated left/right 120degree, which greatly extend the working range horizontally.
| | Capacity | Capacity | Lift Range | Max Height | Rotating | Battery | Drive Speed | Lift | Max Length | Retracted | Net |
| Model | (Retracted) | (Extended) | Retracted/ | Crane | Left/Right (掳) | Power | Unload/Loaded | Speed | Legs | (W X L X H) mm | Weight |
| | (Kg) | (Kg) | Extended (mm) | Extended (mm) | | | Km/h | mm/s | Extended (mm) | | (Kg) |
| EPFC-25 | 1000 | 500/250 | 2220/3310 | 813 | | 2 X 12V/85Ah | 2.2/2.8 | 18 | 600 | 762 X 2032 X 1600 | 500 |
| EPFC-CB-15 | 650 | 350/150 | 2250/3340 | 813 | | 2 X 12V/95Ah | 2.2/2.8 | 18 | | 889 X 2794 X 1727 | 770 |
| EPSC900R | 900 | 450/250 | 2500 | 2650/3180 | 60 + 60 | 2 X 12V/120Ah | 4.5/4.0 | 35 | | 2090 X 2000 X 1635 | 900 |
