AP2RA S450: Top Choice in Penang, Malaysia, Seberang Perai K Innovation Sdn Bhd

Description

DOWNLOAD TDS

Product Description
FIRE RETARDANT DOUBLE SIDED 8 LAYERS REFLECTIVE ALUMINIUM PAPER FOIL, 16x8 FIBERGLASS SCRIM REINFORCED
PRODUCT FEATURE

99% Pure Aluminum Foil with high reflectivity (>0.98) and low emissivity (<0.02) surface.
Reinforced with bidirectional (8x8) fiberglass scrim to increase the mechanical product strength and durability.
Special bonding layers giving superior vapor barrier
Comply with Fire Retardant properties in accordance to BS 476 Part 6 & 7
Suggestion Size :

Width(m) Length (m)

1.22 – 1.25 ± 2% 60 ± 1%

Optimum packing pallet = 90 rolls

Customize size available upon request and machine capacity

TECHNICAL SPECIFICATION

GRAMMAGE	210 – 230gsm
THICKNESS	250 – 360 microns
THERMAL RESISTANCE (ISO 8301,MS ISO8302)	~1.375m²K/w
REFLECTIVITY (ASTM C 1371)	0.98
EMISSIVITY (ASTM C 1371)	0.02
RESISTANCE TO DRY LAMINATION (AS/NZS 4201.1)	No Delamination
RESISTANCE TO WET LAMINATION (AS/NZS 4201.1)	No Delamination
VAPOUR BARRIER (ASTM E96)	0.002 – 0.14μg/N.s
SHRINKAGE (AS/NZS 4201.3)	MD:<0.5% CD:<0.5%
TENSILE STRENGTH (AS/NZS 1301.448s)	MD:>5 kN/m CD:>3 kN/m
EDGE TEAR RESISTANCE (TAPPI T470)	MD:>30N CD:>20N
FOLDING RESISTANCE (AS/NZS 1301.423rp)	MD:>2.00 LOG₁₀100 CD:>1.70 LOG₁₀ 50

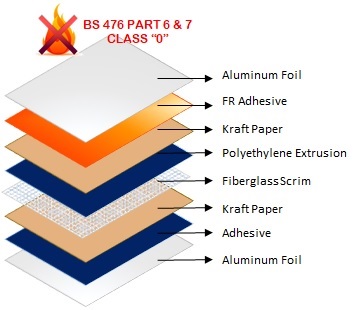

STUCTURE	FILM \| 2 WAY \|8 KRAFT \| FILM
REINFORCEMENT	Bidirectional Fiberglass Scrim (16x8 threads/100m)

Technical information provided in this data sheet are typical laboratory averages and are subject to variation.
While the information is believed to reliable and correct, no guarantee or warranty (expressed or implied) can be made regarding specific applications or patent right.
Product specifications are subject to change without prior notice

RECOMMENDED APPLICATION

Heat insulation industrial material
HVAC duct insulation
Building wrapping
Cold room installation
Thermal Tank
Wall insulation
Sauna room
