AN-DV-E1 series E1 video coder & decoder, mainly used in long-distance video monitoring, have function of E1 single directional transmitting video signal.
It is ensured that any device with E1 interface, such as PBX, Mobile base station, SS7 signaling device and voice post system, can seamlessly connect to E1 video coder & decoder. Also, E1 video coder & decoder can be applied in E1 based communication system, such as: LAN, WAN. MAN and wireless network.
Features
-
Video over E1 transparent transmission;
-
Optional 1 inverted data channel of RS485/422/232/Manchester;
-
Optional 1 positive directional data channel of 485/422/232/Manchester
-
Optional 1 inverted audio channel
-
Optional 1 positive directional audio channel
-
E1 single directional transmition signal at fractions (N*64K), according with G.703/704
-
High transmition efficiency, low transmition delays;
-
High quality of video signal, video cameras can be controled by PTZ using RS-232/485 interfaces
-
Console port for configuration issues;
Specification
E1 interface
-
Standard: E1 interface compatible with G.703 standard.
-
Rate: n*64 kbps (n=10-31)
-
Coding: HDB3
-
Impedance: 75Ω (unbalance), 120Ω (balance)
-
Connector: BNC (75Ω), RJ45 (120Ω)
-
Jitter Performance: According to G.742 and G.823
Video interface
-
Format: PAL/NTSC
-
Video Signal: 1VP-P
-
Video Impedance: 75Ω
-
Bandwidth: 8MHz
-
Digitization: 8bit
-
DG: 1% (Typical value)
-
DP:1˚(Typical value)
-
SNR: 67dB (Typical value)
-
Color brightness time extension difference: 10ns (Typical value)
-
Color brightness gain difference: ±10% (Typical value)
-
Compression algorithm: H264 (accord with ISO/IEC qua 14496-10 international standard)
-
Video input: 1 complex TV signal CVBS
-
Connector: RCA
-
Sample frequency: 7.27MHz
-
Data deal format: ITU-R BT.656 YCrCb 4:2:2
Asynchronous data
-
Interface: RS232/RS485/RS422/ Manchester
-
Working mode: Full / half duplex
-
Transmit rate: 300~115.200Kbps
-
Error code rate: <1×10 –9
-
Data connector: RJ45
Console
-
Interface: RS232
-
Working mode: Full/half duplex
-
Baud rate: 9600
-
Data bit: 8
-
Odd & even: none
-
Stop bit: 1
-
Data stream control: none
-
BACKSPACE choice: ctrl+h, space
-
Data connecter: RJ45

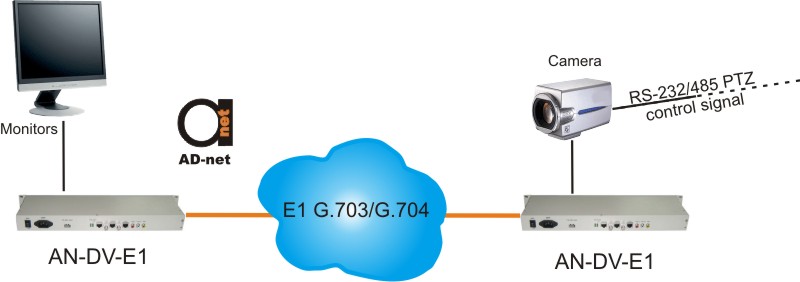

Application:
Ordering Information
|
AN-DV-E1/T |
Video over E1, 1 channel positive-direction video transmitter, E1 support BNC(75ohm) and RJ45(120ohm), AC110-220V or DC48V
|
|
AN-DV-E1/R |
Video over E1, 1 channel positive-direction video receiver, E1 support BNC(75ohm) and RJ45(120ohm), AC110-220V or DC48V
|
|
AN-DV-E1-DT |
Video over E1, 1ch positive-direction video +1 channel reverse RS485 date transmitter, E1 support BNC(75ohm) and RJ45(120ohm), 110-AC220V, or DC48V
|
|
AN-DV-E1-DR |
Video over E1, 1ch positive-direction video + 1 channel reverse RS485 receiver, E1 support BNC(75ohm) and RJ45(120ohm), AC110-220V, DC48V
|
|
AN-DV-E1-DAT |
Video over E1, 1ch positive-direction video + 1 Audio +1 channel reverse RS485 date transmitter, E1 support BNC(75ohm) and RJ45(120ohm), 110-AC220V, or DC48V
|
|
AN-DV-E1-DAR |
Video over E1, 1ch positive-direction video + 1 Audio +1 channel reverse RS485 date receiver, E1 support BNC(75ohm) and RJ45(120ohm), 110-AC220V, or DC48V
|
Additional Information
|
Video & Audio |
Any |
|
E1 ports |
1 |
