Description

Agilent Isolated Dry Scroll Pumps (IDP) are oil-free, compact, quiet, high performance vacuum pumps. IDP pumps use a single-sided scroll design that allows for a straightforward 15-minute maintenance procedure with simple tools. Large pumping speeds and compact sizes are ideal for many applications in the research, analytical instrument, and laboratory markets.

IDP pumps are hermetic, with the motor and all bearings completely isolated from the vacuum path. This design extends the bearing life and provides clean, dry vacuum to the application. An inlet isolation valve is available as an integral option that adds no additional height to the pump. The IDP-10 uses an inverter driven motor, which provides uniform vacuum performance at all global frequencies and input voltages. Its uniform global performance and compact size make it an ideal choice for analytical instruments and industrial OEMs.

Specifications

IDP-3

IDP-7 X
Pumping Speed	60 Hz/24 VDC: 60 l/m, 3.6 m3/hour 50 Hz: 50 l/m, 3.0 m3/hour
Base Pressure	3.3 x 10-1 mbar, 2.5 x 10-1 Torr
Motor Rating/Operating Voltage	0.16 HP (120 W)/100-120; 200-240 VAC
Common Applications	Leak Detection GC Mass Spectrometry Helium Recirculation
Choose this model if...	You want the lightest, most compact primary pump. You need to integrate the pump into your instrument. You want a 24V drive. You have an Agilent GC/MS.
Pumping Speed	60 Hz: 152 l/m, 9.1 m3/hour 50 Hz: 120 l/m, 7.2 m3/hour
Base Pressure	60 Hz: 2.6 x 10-2 mbar, 2.0 x 10-2 Torr 50 Hz: 4.0 x 10-2 mbar, 3.0 x 10-2 Torr
Motor Rating/Operating Voltage	0.38 HP (300 W)/100-120; 200-240 VAC
Common Applications	Vacuum Ovens Helium Recirculation Backing High Vacuum Pump General Laboratory Vacuum
Choose this model if...	You need a bit more pumping speed, but you want a compact, tabletop pump. You need to handle water vapor. Download IDP-7 Dry Scroll Pump 3D Model.
IDP-10 X
Pumping Speed	170 L/min, 10.2 m3/h at full rotational speed
Base Pressure	2.0 x 10-2 mbar 1.5 x 10-2 Torr
Motor Rating/Operating Voltage	0.5 HP (350 W)/100-127; 200-240 VAC
Common Applications	Microscopy Instruments Surface Analysis Instruments Helium Recirculation Thin Film Deposition
Choose this model if...	You want to guarantee universal pumping performance at all input frequencies. You want remote speed control or on/off capability. Download IDP-10 Dry Scroll Pump 3D Model. You have an Agilent GC/QQQ.
IDP-15 X
Pumping Speed	60 Hz: 256 l/m, 15.4 m3/hour 50 Hz: 214 l/m, 12.8 m3/hour
Base Pressure	1.33 x 10-2 mbar 1 x 10-2 Torr
Motor Rating/Operating Voltage	0.75 HP (560 W)/100-115; 220-230 VAC
Common Applications	General Laboratory Vacuum Thin Film Deposition LED, Bulb Manufacturing
Choose this model if...	You want the quietest pump available. You want the lowest vibration at inlet available. You need to evacuate a large chamber. Download IDP-15 Dry Scroll Pump 3D Model.
Add the inlet isolation valve if...
Common Applications	Instrumentation Beam and Particle Physics Backing a Turbo Pump
Choose this model if...	You want to protect your system and high vacuum pump in case of power loss. You want to isolate the pump inlet during turbulent stop and start.

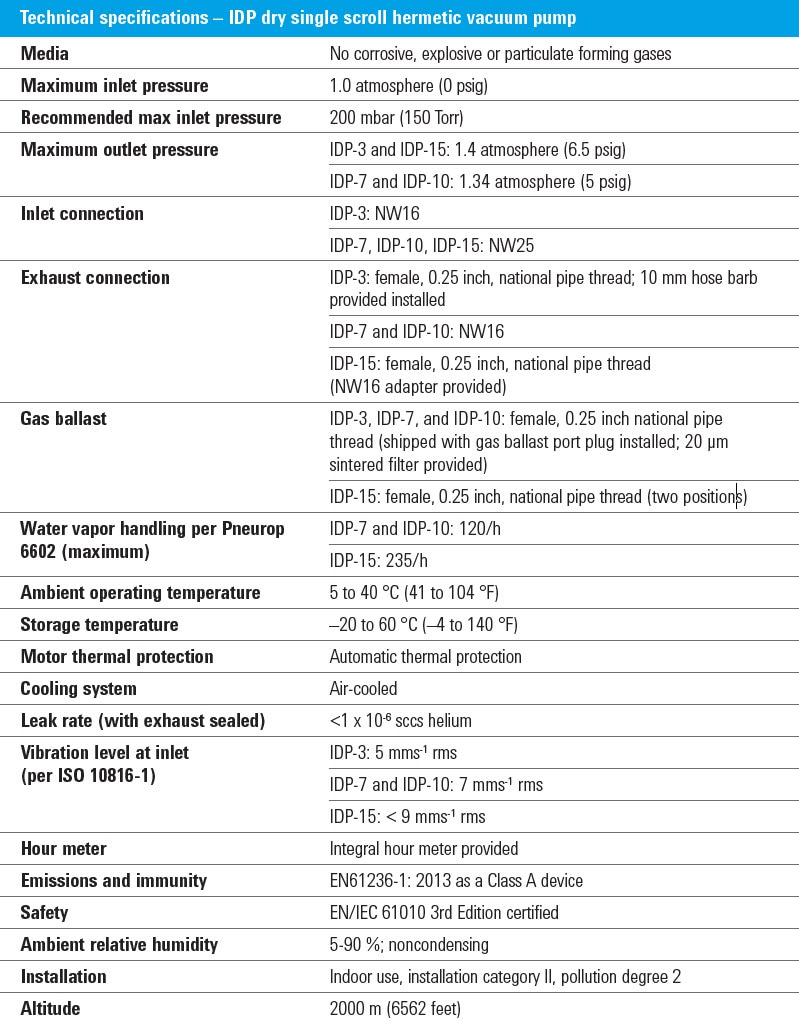

IDP Family Technical Specifications X
Outline Drawings	IDP-3 X IDP-7 X IDP-10 X IDP-15 X

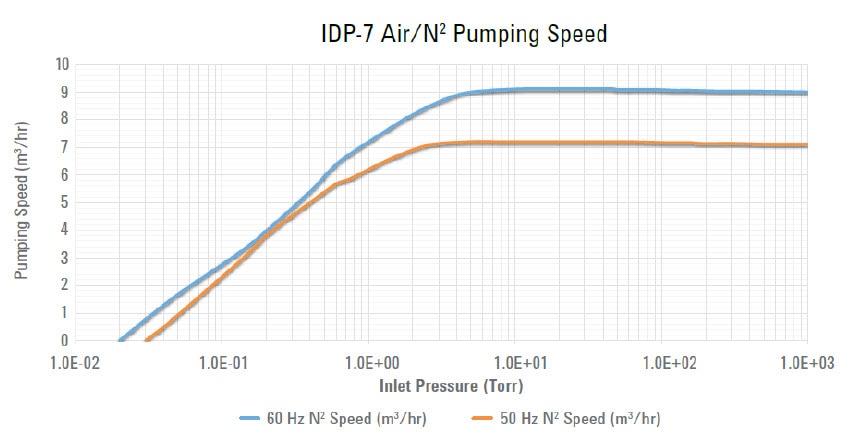

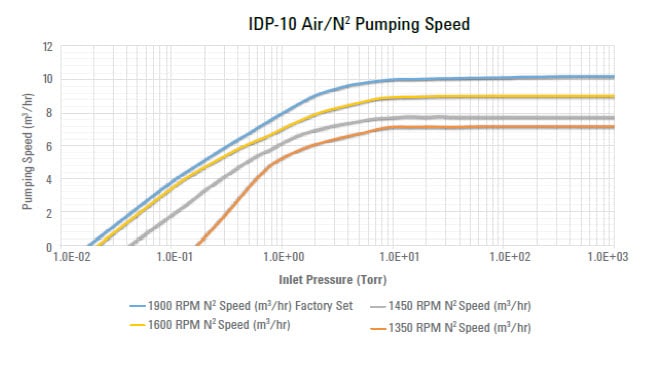

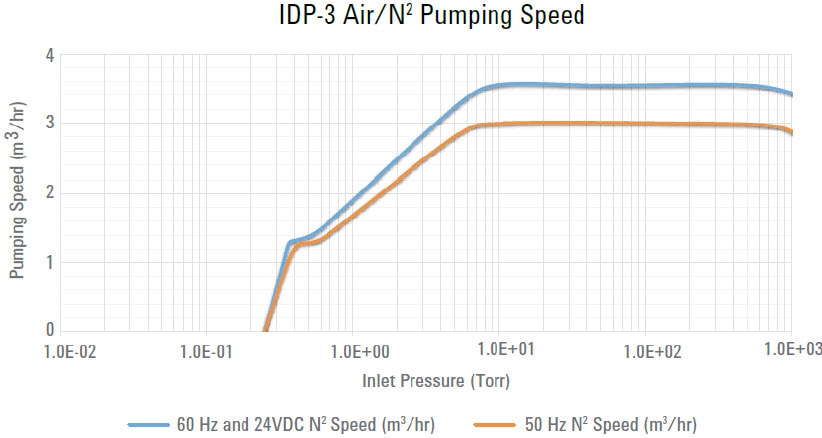

Pumping Speed Graphs	IDP 3 X IDP 7 X IDP 10 X IDP 15

Order Information

IDP-3
Description Part number
IDP-3, 1φ, 220 V, 50/60 Hz IDP3A01
IDP-3, 1φ, 115 V, 60 Hz IDP3B01
IDP-3, 1φ, 100 V, 50/60 Hz IDP3C01
IDP-3, 24 VDC IDP3D01

With inlet isolation valve:
IDP-3, 1φ, 220 V, 50/60 Hz IDP3A21
IDP-3, 1φ, 115 V, 60 Hz IDP3B21
IDP-3, 1φ, 100 V, 50/60 Hz IDP3C21
IDP-3, 24 VDC IDP3D21

Service part numbers:
IDP-3 tip seal replacement kit IDP3TS

Accessory part numbers
Exhaust silencer kit EXSLRIDP3
Inlet trap SCRINTRPNW16
Vibration isolation kit IDP3VIBISOKIT

IDP-7
Description Part number
IDP-7                                                              X3807-64000
IDP-7 with inlet isolation valve X3807-64010

Service part numbers
IDP-7/10 tip seal replacement kit X3807-67000

Accessory part numbers
Exhaust silencer kit X3807-68003
Purge kit                                                        X3807-68004
Gas ballast kit X3807-68008
Inlet trap SCRINTRPNW25
Vibration isolation kit SH110VIBISOKIT

IDP-10
Description                                                   Part number
IDP-10 X3810-64000
IDP-10 with inlet isolation valve X3810-64010

Service part numbers
IDP-7/10 tip seal replacement kit X3807-67000

Accessory part numbers
Exhaust silencer kit                                      X3807-68003
Purge kit X3807-68004
Gas ballast kit X3807-68008
Inlet trap SCRINTRPNW25
Vibration isolation kit SH110VIBISOKIT

IDP-15
Description                                                   Part number
IDP-15 X3815-64000
IDP-15 with inlet isolation valve X3815-64010

Service part numbers
IDP-15 tip seal replacement kit X3815-67000

Accessory part numbers
Exhaust silencer kit EXSLRSH110
Purge kit                                                        X3807-68004
Gas ballast kit                                               X3807-68008
Inlet trap SCRINTRPNW25
