TREFOIL ALUMINIUM (NON FERROUS TYPE) CABLE CLEAT

Product Description

The Trefoil Aluminium Cable Cleats are made from high quality aluminium and are used to secure and retain three phase low voltage(LV) & high voltage(HV) cables in the trefoil formation which will reduce the induction of eddy currents while still maintaining the current carrying capacity of the electrical circuit. The trefoil formation is usually used when protection against high short circuit faults in a single core power cable is required. Our cable cleats has been thoroughly tested and approved in accordance with IEC61914.

Product Benefits

** Can be used in various types of cable routes.
** Operating temperature is from -40°C to 100°C.
** For single core cables laid in trefoil formation.
** Can be used indoor and outdoor.
** Resistance to Very heavy Impact

Product Specification

Item Code	Cable Dia. (mm)
DSSB-CC-TAC24	22 - 24
DSSB-CC-TAC27	25 - 27
DSSB-CC-TAC30	28 - 30
DSSB-CC-TAC32	31 - 32
DSSB-CC-TAC34	33 - 34
DSSB-CC-TAC36	35 - 36
DSSB-CC-TAC40	37 - 40
DSSB-CC-TAC44	41 - 44
DSSB-CC-TAC47	45 - 47
DSSB-CC-TAC50	48 - 50
DSSB-CC-TAC53	51 - 53
DSSB-CC-TAC55	54 - 55
DSSB-CC-TAC60	56 - 60
DSSB-CC-TAC63	61 - 63
DSSB-CC-TAC65	64-65
DSSB-CC-TAC66	65 - 66
DSSB-CC-TAC70	67 - 70
DSSB-CC-TAC73	71 - 73
DSSB-CC-TAC77	74 - 77
DSSB-CC-TAC81	78 - 81
DSSB-CC-TAC85	82 - 85
DSSB-CC-TAC90	86 - 90
DSSB-CC-TAC93	91 - 93
DSSB-CC-TAC95	93 - 95
DSSB-CC-TAC96	95 - 96
DSSB-CC-TAC99	97 - 99
DSSB-CC-TAC102	100 - 102
DSSB-CC-TAC105	103 - 105
DSSB-CC-TAC109	106 - 109
DSSB-CC-TAC112	110 - 112

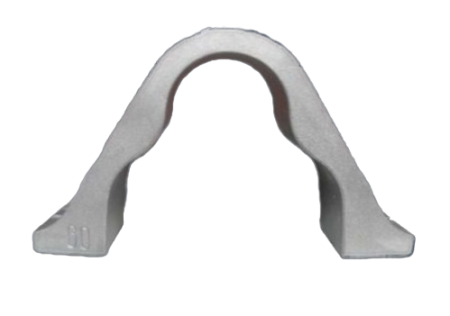

Product image
