TREFOIL NON METALLIC CABLE CLEAT

Product Description

The Trefoil Non Metallic Cable Cleats are made from high Quality engineering material. It is use to secure and retain three phases low voltage (LV) , medium voltage (MV) & high voltage (HV) cables in trefoil formation which will reduce the induction of eddy currents while still maintaining the current carrying capacity of the electrical circuit. These trefoil formation is usually use when spaces are limited wether laid on a cable tray/ ladder or on the ground. Our cable cleats has been thoroughly tested in accordance with international Standard IEC 61914.

Product Benefits

** Can be used in various types of cable routes
** For single core cables laid in trefoil formation
** No magnetism
** No conduction
** Extremely resistant against all kind of chemicals
** Easy to be installed
** No sharp corners
** Does not oxidize
** Can be used indoors and outdoors ( UV Resistant )
** Resistant to very heavy Impact
** RoHS compliant
** Made of halogen free product

RoHS stands for Restriction of Hazardous Substances. RoHS, also known as Directive 2002/95/EC, restricts the use of specific hazardous materials found in electrical and electronic products (known as EEE).

Product Specification

Item Code	Cable Dia. (mm)	Type
DSSB-CC-TNC 24	22 - 24	T1
DSSB-CC-TNC 27**	25 - 27	T2
DSSB-CC-TNC 30	28 - 30	T1
DSSB-CC-TNC 33**	31 - 33	T2
DSSB-CC-TNC 36	34 - 36	T1
DSSB-CC-TNC 40**	37 - 40	T2
DSSB-CC-TNC 44	41 - 44	T1
DSSB-CC-TNC 47	45 - 47	T1
DSSB-CC-TNC 50**	48 - 50	T2
DSSB-CC-TNC 53	51 - 53	T1
DSSB-CC-TNC 55	54 - 55	T1
DSSB-CC-TNC 58	56 - 58	T1
DSSB-CC-TNC 60**	56 - 60	T2
DSSB-CC-TNC 63	61 - 63	T1
DSSB-CC-TNC 65	64 - 35	T1
DSSB-CC-TNC 67	64 - 67	T1
DSSB-CC-TNC 70	68 - 70	T1
DSSB-CC-TNC 73**	71 - 73	T2
DSSB-CC-TNC 77	74 - 77	T1
DSSB-CC-TNC 81	78 - 81	T1
DSSB-CC-TNC 85	82 - 85	T1
DSSB-CC-TNC 90	86 - 90	T1
DSSB-CC-TNC 93	91 - 93	T1
DSSB-CC-TNC 96	94 - 96	T1
DSSB-CC-TNC 99**	97 - 99	T2
DSSB-CC-TNC 102	100 - 102	T1
DSSB-CC-TNC 105	103 - 105	T1
DSSB-CC-TNC 109	106 - 109	T1
DSSB-CC-TNC 112**	110 - 112	T2

_{**: Available in Ver. 2

Other size please send/ call for enquiry}

_{Note:- All Are UV Resistant}

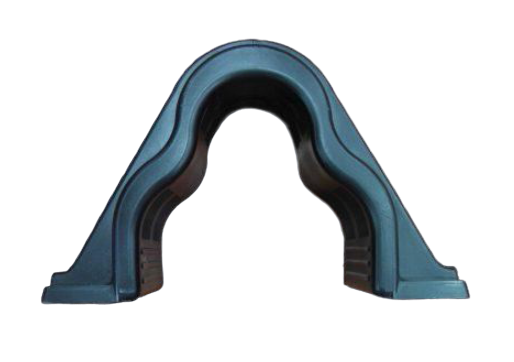

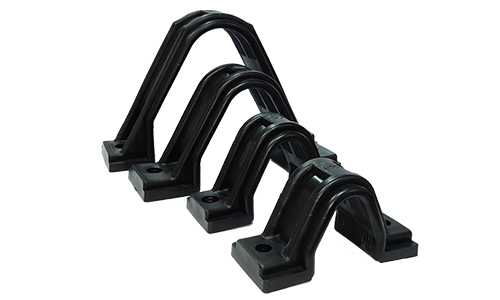

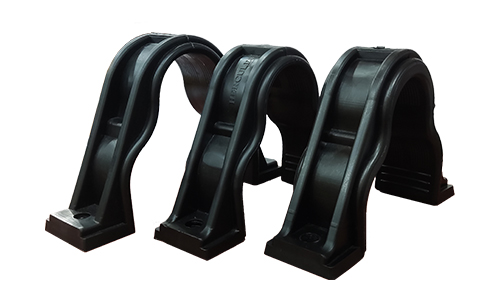

Product Image
