Description

ZERO HALOGEN, FLEXIBLE FLAME RETARDANT HEAT SHRINKABLE TUBING

Product Description

The Zero Halogen, Flexible Flame Retardant Heat Shrinkable Tubing has excellent flame retardancy with reduced harmful gas emission and smoke production. The shrink temperature is 115°C and an operating temperature from -55°C to 125°C. It is to be used when high safety against fire hazards or overheating of electrical circuits are required.

Product Specification

** Special size, cut pieces are available on request.

Item Code	Normal Size (mm)	As supplied (mm)	After recovered (mm)		Standard length (m/spool)
Item Code	Normal Size (mm)	Inside diameter (mm)	Wall thickness (nominal)	Wall thickness (nominal)	Standard length (m/spool)
DSSB-EC-HSFRZH1.0	Φ 1.0	1.5 ± 0.2	0.65	0.28	200
DSSB-EC-HSFRZH1.5	Φ 1.5	2.0 ± 0.2	0.85	0.32	200
DSSB-EC-HSFRZH2.0	F 2.0	2.5 ± 0.2	1	0.35	200
DSSB-EC-HSFRZH2.5	Φ 2.5	3.0 ± 0.2	1.3	0.38	200
DSSB-EC-HSFRZH3.0	Φ 3.0	3.5 ± 0.2	1.5	0.4	200
DSSB-EC-HSFRZH3.5	Φ 3.5	4.0 ± 0.2	1.8	0.42	200
DSSB-EC-HSFRZH4.0	Φ 4.0	4.5 ± 0.2	2	0.45	200
DSSB-EC-HSFRZH4.5	Φ 4.5	5.0 ± 0.2	2.3	0.5	200
DSSB-EC-HSFRZH5.0	Φ 5.0	5.5 ± 0.2	2.5	0.55	100
DSSB-EC-HSFRZH6.0	Φ 6.0	6.5 ± 0.2	3	0.55	100
DSSB-EC-HSFRZH7.0	Φ 7.0	7.5 ± 0.3	3.5	0.55	100
DSSB-EC-HSFRZH8.0	Φ 8.0	8.5 ± 0.3	4	0.6	100
DSSB-EC-HSFRZH9.0	Φ 9.0	9.5 ± 0.3	4.5	0.6	100
DSSB-EC-HSFRZH10.0	Φ 10.0	10.5 ± 0.3	5	0.6	100
DSSB-EC-HSFRZH11.0	Φ 11.0	11.5 ± 0.3	5.5	0.6	100
DSSB-EC-HSFRZH12.0	Φ 12.0	12.5 ± 0.3	6	0.6	50
DSSB-EC-HSFRZH13.0	Φ 13.0	13.7 ± 0.3	6.5	0.65	100
DSSB-EC-HSFRZH14.0	Φ 14.0	14.5 ± 0.3	7	0.65	100
DSSB-EC-HSFRZH15.0	Φ 15.0	15.5 ± 0.4	7.5	0.7	100
DSSB-EC-HSFRZH16.0	Φ 16.0	16.5 ± 0.4	8	0.7	100
DSSB-EC-HSFRZH17.0	Φ 17.0	17.5 ± 0.4	8.5	0.7	100
DSSB-EC-HSFRZH18.0	Φ 18.0	19.0 ± 0.5	9	0.8	100
DSSB-EC-HSFRZH20.0	Φ 20.0	21.0 ± 0.5	10	0.8	100
DSSB-EC-HSFRZH22.0	Φ 22.0	23.0 ± 0.5	11	0.8	100
DSSB-EC-HSFRZH25.0	Φ 25.0	26.0 ± 0.5	14	0.9	50
DSSB-EC-HSFRZH28.0	Φ 28.0	29.0 ± 0.8	14	0.9	50
DSSB-EC-HSFRZH30.0	Φ 30.0	31.5 ± 1.0	15	0.95	50
DSSB-EC-HSFRZH35.0	Φ 35.0	36.5 ± 1.0	17.5	1	50
DSSB-EC-HSFRZH40.0	F 40.0	41.5 ± 1.0	20	1	50
DSSB-EC-HSFRZH45.0	Φ 45.0	46.5 ± 1.0	22.5	1	25
DSSB-EC-HSFRZH50.0	Φ 60.0	≥50	25	1	25
DSSB-EC-HSFRZH60.0	Φ 60.0	≥60	22.5	1	25
DSSB-EC-HSFRZH70.0	Φ 70.0	≥70	36	1.3	25
DSSB-EC-HSFRZH80.0	Φ 80.0	≥80	41	1.46	25
DSSB-EC-HSFRZH90.0	Φ 90.0	≥90	46	1.46	25

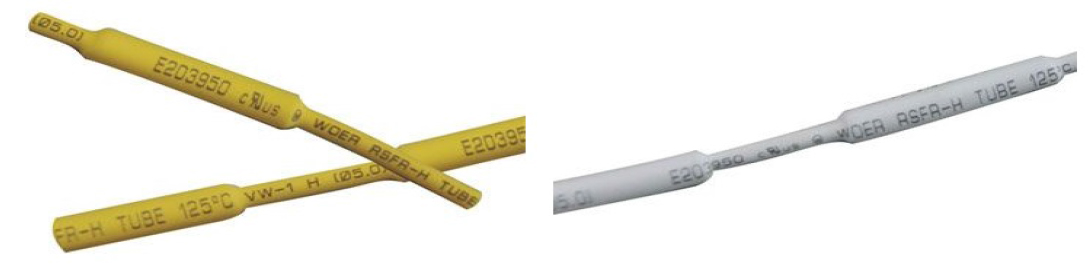

Product Image
