Description
Ozone Aging Test Chamber CY013
Model: CY013
Use conditions:
-
Ambient temperature: 0 ˚C ~ 35 ˚C
-
Pressure: standard atmospheric pressure
-
Relative humidity: ≤90%RH
-
Power: 220V±10%
Technical Indicators:
This series of test cases of ozone produced by ozone generator can be used in the nonmetallic material, organic material, coating, rubber, plastic, paint, paint, etc.) Under the condition of the ozone ageing test.
1. Internal chamber size (mm): 400 * 400 * 500
2. Ozone concentration: 25 ~ 500 PPHM (adjustable)
3. Deviation of ozone concentration: ≤5%
4. Laboratory temperature: RT + 10 ˚ ~ 60 ˚C
5. Temperature fluctuation degree: ±0.5˚C
6. Evenness±2˚C
7. Test gas flow: 20～80L/min
8. Test device: static
9. Sample holder speed: 360 rotary racks (speed 1 revolutions per minute)
10. Ozone source: ozone generator
11. Sensor: British import ozone concentration sensor, can achieve precise control

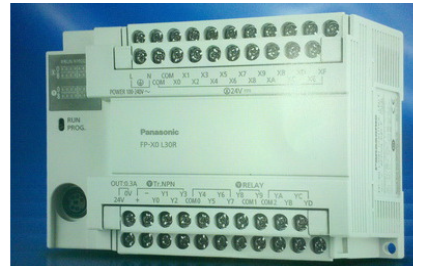

12. PLC controller

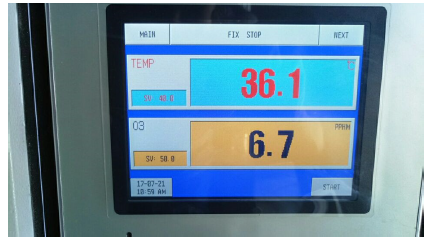

13. Main control interface
14. Standard: GB/T7762-2003, ASTM1149 ,ISO1431,GB/T136421-92,HG/T2869-97
Power:
-
The rated power: 4.5 KW
-
Power supply: AC220V±10%， 50HZ
-
Machine noise: ≤70dbA
