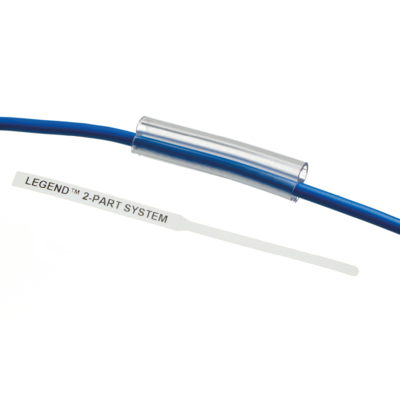

View Catalogue / PrintThe system consists of a clear plastic tubing with 2 recesses; one for the label and one for the wire. The label recess remains same size. The wire recess changes according to diameter of wire to be marked . Diameter range: 1.2mm è 14mm. There are 3 different label lengths; 20mm, 30mm and 50mm with matching lengths of clear tubing. The flexible polypropylene label has a special ‘bottle’ shape allowing it to be pulled into the clear tubing, this style makes it quick and easy to ‘load/unload’ label.
Typical uses include; sub-stations, control rooms or any application where the ID is likely to need frequent changes.
Testing
This label has been tested for High/Low Temperature and Salt Mist Spray according to Lloyds Register Type Approval System.
Colour Options
White – also consider Red/Blue/Green/ thermal ribbons.
Printing
Print via Fox-in-a-Box® thermal printer using One software, One printer, One ribbon for our whole range of thermal labels.
A 300m thermal ribbon will yield approximately 40,000 labels.
Product Specification
| Item Code | Label Dimensions (mm) | Labels Per Roll | Rolls Per Pack | Colours |
| DSSB-CIA-2PL-L6/20T | 20 x 5 | 5000 | 1 Roll | White |
| DSSB-CIA-2PL-L6/30T | 30 x 5 | 5000 | 1 Roll | White |
| DSSB-CIA-2PL-L6/50T | 50 x 5 | 5000 | 1 Roll | White |
| Specification | Description |
| Material | Polypropylene |
| RoHS | RoHS Complaint |
| Printing | Silver Fox DTP-1 Thermal Printer |
| Thermal Ribbon | TSR3/300 |
| Network Rail | Authorised for Use |
Product Image
