LINE END CLAMPS



Product Description


P&B Weir Electrical design and manufacture a large range of Substation Portable Earthing clamps for many applications. The design of all line end clamps is such that once hooked over the bus bar they become self- supporting whilst the operating screw is tightened or loosened. All types, whether sprung loaded or not should be applied by means of an operating socket attached to an insulated operating pole.

Substation Portable Earthing clamps should be inspected at regular intervals and prior to each application. All clamps should operate freely and moving parts should be lightly lubricated, springs should be protected by heavy grease and contact faces should be clean.



Product Benefits

** Lightweight
** Precision machined for rigidity


Product Specification


Item Code Clamp Diameter Short Circuit Rating Max Number of leads
DSSB-SLE-PEE-CE22A/ESI-L1 10mm - 38mm 17.5kA for 2 secs  1 lead
DSSB-SLE-PEE-CE22 A+B 19mm - 76mm 17.5kA for 2 secs 1 lead
DSSB-SLE-PEE-CE25 35mm - 75mm 38 kA for 2 secs 2 leads
DSSB-SLE-PEE-CE22B/ESI-L2 37mm - 76mm  17.5kA for 2 secs 1 lead
DSSB-SLE-PEE-CE22C/ESI-L3 60mm - 90mm 17.5kA for 2 secs 1 lead
DSSB-SLE-PEE-CE15  90mm 36.5kA for 2 secs 2 leads
DSSB-SLE-PEE-CE27 101.6mm 17.5kA for 2 secs 2 leads
DSSB-SLE-PEE-CE16/5/ESI-L4 127mm only  50kA for 3 secs 3 leads
DSSB-SLE-PEE-CE16/5.5/ESI-L5 140mm only 50kA for 3 secs 3 leads
DSSB-SLE-PEE-CE51 140mm - 160mm 38kA for 2 secs 2 leads
DSSB-SLE-PEE-CE50 190mm - 200mm 37kA for 2 secs 2 leads
DSSB-SLE-PEE-CE71 220mm - 250mm 17.5kA for 2 secs 1 lead




Product Image

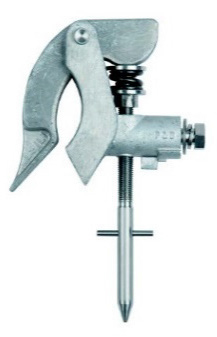

1. DSSB-SLE-PEE-CE22A/ESI-L1

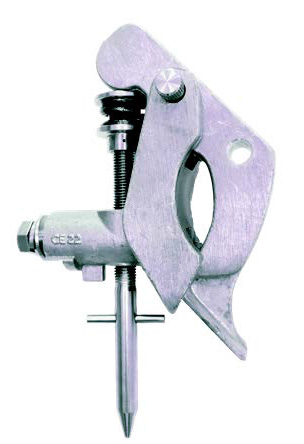

2. DSSB-SLE-PEE-CE22 A+B

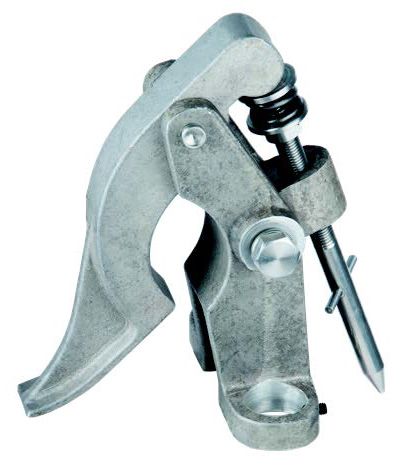

3. DSSB-SLE-PEE-CE25

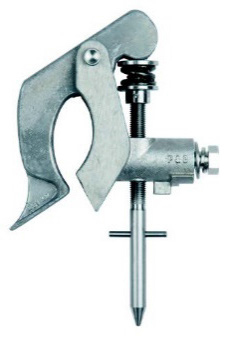

4. DSSB-SLE-PEE-CE22B/ESI-L2

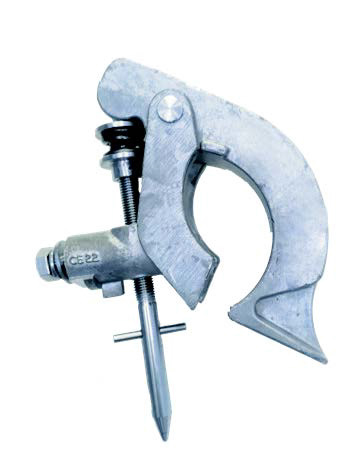

5. DSSB-SLE-PEE-CE22C/ESI-L3

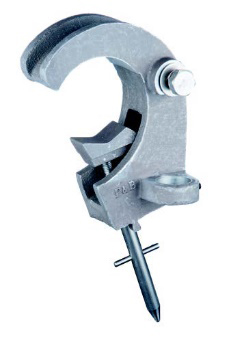

6. DSSB-SLE-PEE-CE15

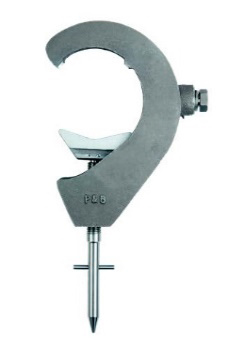

7. DSSB-SLE-PEE-CE27

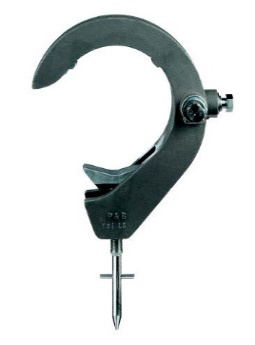

8. DSSB-SLE-PEE-CE16/5/ESI-L4


9. DSSB-SLE-PEE-CE16/5.5/ESI-L5

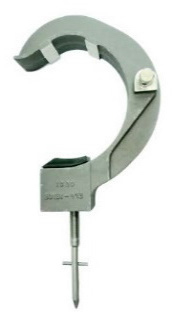

10. DSSB-SLE-PEE-CE51

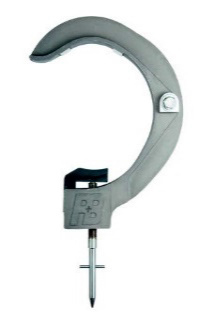

11. DSSB-SLE-PEE-CE50

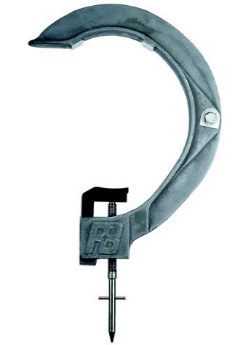

12. DSSB-SLE-PEE-CE71
