Description

BRASS CABLE GLANDS ''CW'' for Armoured Cable

Product Description

Standard : BS 6121 , IEC 62444 , EN 62444 , EN50262
Size : 20 mm to 90 mm S & L
IP Rating : IP65
Material : Brass BS 2874 CZ121 Pb3
Finishing : Natural Brass Finish , Nickel Finish
Application : For indoor or outdoor use with all types of Armoured (SWA) Cable.
Operating Temp : Standard seals -20^oC to +80^oC
Accessories : Lock Nut, Earth Tag, IP Nylon Washer, Serreated Washer. PVC / LSF Shroud.
Optional Threads : Metric, NPT, BSP & PG.

Product Specification

Item Code	Gland Size	Thread Size 'C' Metric	Minimum Length Of Thread 'D'	Cable Range
				Max 'A'	Max 'B'
				Max 'A'	Max 'B'
DSSB-CG-CW20S	20S	M20	10	11.50	15.50
DSSB-CG-CW20L	20L	M20	10	14.00	20.50
DSSB-CG-CW25S	25S	M25	10	18.00	24.00
DSSB-CG-CW25L	25L	M25	10	20.00	27.20
DSSB-CG-CW32S	32S	M32	10	26.30	33.50
DSSB-CG-CW32L	32L	M32	10	26.30	33.50
DSSB-CG-CW40S	40S	M40	13	31.50	39.50
DSSB-CG-CW40L	40L	M40	13	32.00	40.00
DSSB-CG-CW50S	50S	M50	13	38.20	46.30
DSSB-CG-CW50L	50L	M50	13	44.00	52.60
DSSB-CG-CW63S	63S	M63	14	50.10	59.00
DSSB-CG-CW63L	63L	M63	14	56.00	65.30
DSSB-CG-CW75S	75S	M75	15	62.00	71.60
DSSB-CG-CW75L	75L	M75	15	68.00	78.00
DSSB-CG-CW90S	90S	M90	18	80.50	91.00
DSSB-CG-CW90L	90L	M90	18	80.50	91.00

*All Dimension are in Millimeters (mm)
*Longer thread also available upon request (MOQ applied)

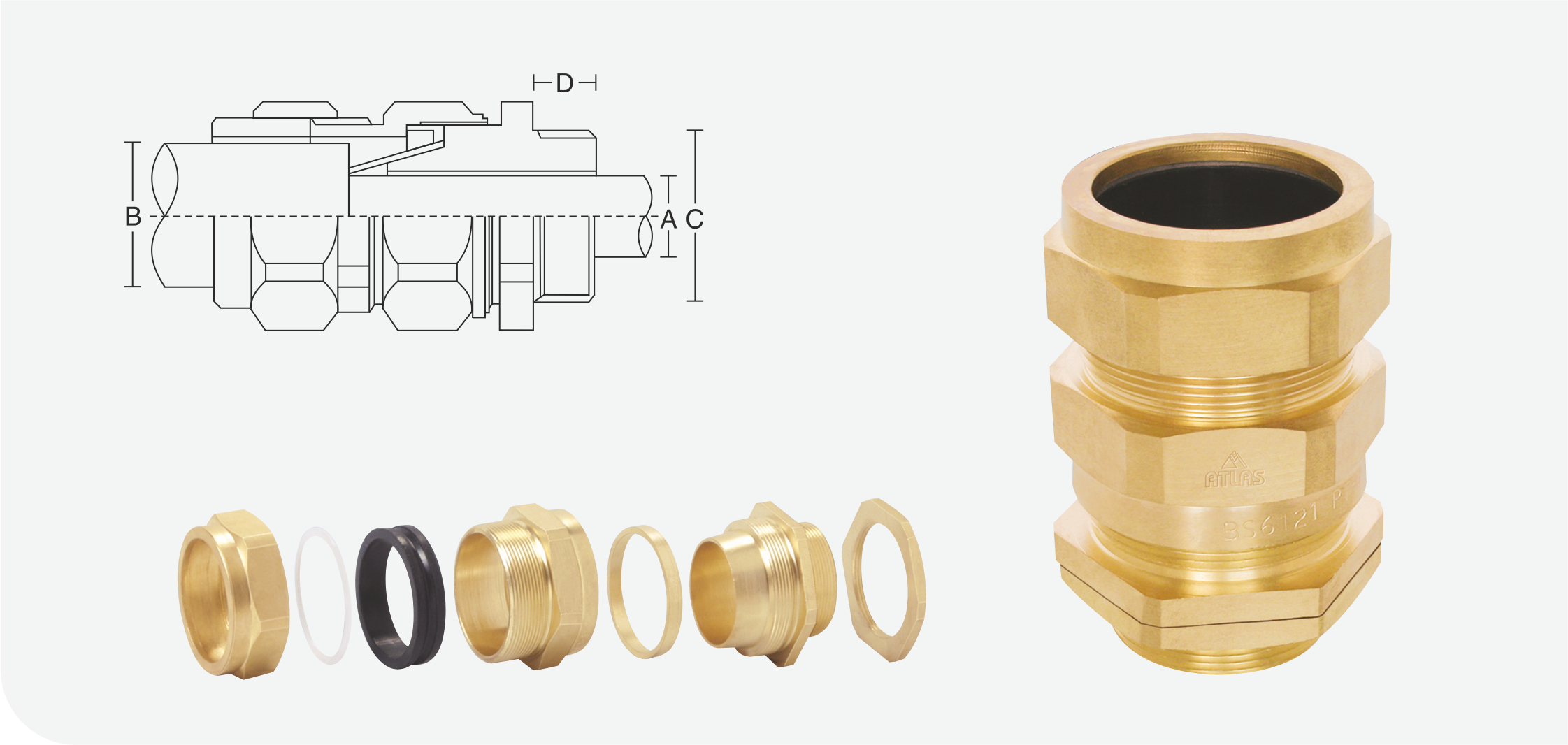

Product Image
