A2 Double Compression
CABLE GLAND FOR UNARMOURED CABLE




Product Description



Standard                 : BS3121:2005 (BS EN 50262)

IP Rating                 : IP55

Material                   : Brass, Alternating Material - Stainless Steel / Aluminium
                                 : Sealing Ring - Neoprene Rubber

Finishing                  : Nickle Plated ( Standard ), Alternative Plating - Tin/Cadmium/Chrome

Thread                     : Glands are supplied with B.S.C. thread (ET) as standard.
                               : Alternative thread Form - NPT/PG/BSP/MM etc

Accessories             : Shroud & Earth Tag are supplied seperately and should be specified when ordering the gland.

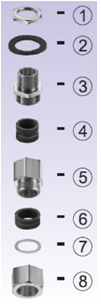

Specification           : Gland consist of Locknut (1), Washer (2), Armour Clamping Nut (3), Neoprene Inner Ring (4),
                                   Gland Body (5), Neoprene Outer Ring (6), Skid Washer (7) & Outer Seal Nut (8).
                              : All metal parts are made of brass accurately machined for ease of assembly.

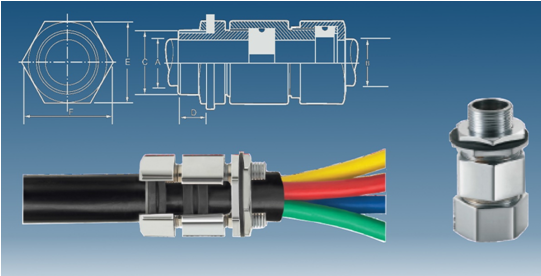

Product Specification



Item Code A
Cable Range
(Dia) mm		 Entry Thread E
(Across Flat)
mm		 F
(Across Corner)
mm
C (Inches) D
(mm)
Min Max
DSSB-A2DC-CBW01SS (UN) 5.0 13.0 3/4'' 15.0 21.5 24.5
DSSB-A2DC-CBW01S (UN) 13.5 14.5 3/4'' 15.0 25.0 29.0
DSSB-A2DC-CBW01A (UN) 15.0 18.0 1'' 15.0 28.0 32.0
DSSB-A2DC-CBW02 (UN) 18.5 20.0 1'' 15.0 31.5 36.5
DSSB-A2DC-CBW03SP (UN) 20.5 23.0 M28 15.0 32.0 37.0
DSSB-A2DC-CBW04A (UN) 23.5 26.0 1.1/4'' 15.0 38.0 44.0
DSSB-A2DC-CBW05A (UN) 26.5 30.0 1.1/2'' 15.0 41.0 47.0
DSSB-A2DC-CBW06SP (UN) 30.5 33.0 M40 15.0 47.0 54.0
DSSB-A2DC-CBW07SP (UN) 33.5 36.0 M42 15.0 52.0 58.0
DSSB-A2DC-CBW08 (UN) 36.5 41.0 2'' 15.0 56.0 64.0
DSSB-A2DC-CBW09 (UN) 41.5 44.0 2'' 15.0 59.0 67.0
DSSB-A2DC-CBW10A (UN) 44.5 52.0 2'' 20.0 66.5 77.0
DSSB-A2DC-CBW11SP (UN) 52.5 60.0 M70 20.0 80.0 92.0
DSSB-A2DC-CBW12 (UN) 60.5 66.0 3'' 20.0 85.0 97.0
DSSB-A2DC-CBW13 (UN) 66.5 72.0 3.1/4'' 20.0 90.0 103.0
DSSB-A2DC-CBW14 (UN) 72.5 80.0 3.1/2'' 20.0 105.0 122.0
DSSB-A2DC-CBW15 (UN) 81.0 90.0 4'' 20.0 117.0 135.0

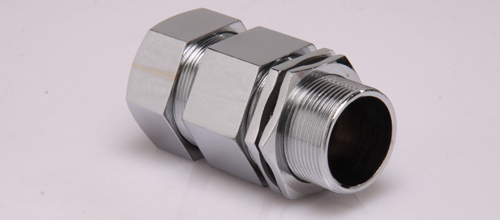

Product Image
