BRASS CABLE GLANDS ''E1W'' TYPE KIT
DOUBLE COMPRESSION GLANDS



Product Description



Standard                : BS 3121 , IEC 62444 , EN 62444 , EN 50262

Size                       : 20 mm to 100 mm S & L

IP Rating               : IP65

Material                : Brass BS 2874 , CZ 121 , Pb3

Finishing               : Natural Brass Finish , Nickel Finish

Application            : For indoor or outdoor use with all types of SWA Cable

Operating Temp    : Standard seals -20oC to +80oC

Function               : E1W type glands provide a seal on the inner sheath, a seal on the outer sheath and an armour specific armour clamp for the armoured cable.
                            The  armour clamp provides an electrical bond between the armour cable and the gland.

Accessories          : Lock Nut, Earth Tag, PVC\LSF Shroud, Nylon Washer




Product Specification

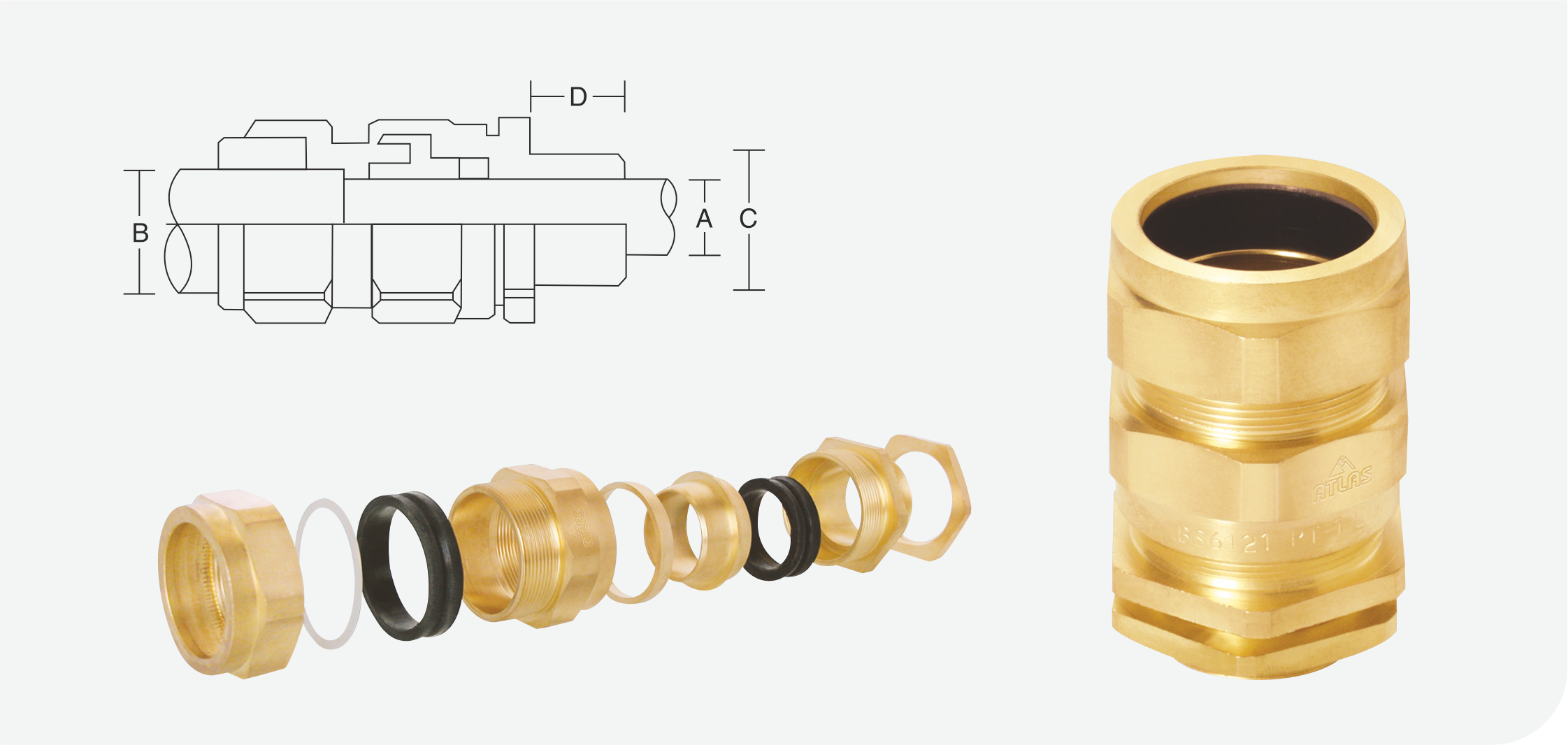

Item Code Gland
Size		 Thread Size 'C'
Metric		 Minimum Length Of Thread 'D' Cable Range 'A' Cable Range 'B'
Max Min Max Min

DSSB-CG-BSE1W-20S E1W 20S M20 15 11.70 8.80 16.00 11.80
DSSB-CG-BSE1W-20L E1W 20L M20 15 14.00 11.40 20.80 14.00
DSSB-CG-BSE1W-25S E1W 25S M25 15 16.00 13.00 24.00 18.00
DSSB-CG-BSE1W-25L E1W 25L M25 15 20.00 17.30 27.40 20.30
DSSB-CG-BSE1W-32S E1W 32S M32 10 23.00 20.00 31.00 24.50
DSSB-CG-BSE1W-32L E1W 32L M32 15 26.30 24.20 33.50 26.50
DSSB-CG-BSE1W-40S E1W 40S M40 15 29.00 26.00 36.00 30.40
DSSB-CG-BSE1W-40L E1W 40L M40 15 32.10 29.50 40.00 33.20
DSSB-CG-BSE1W-50S E1W 50S M50 15 38.10 33.00 46.50 40.00
DSSB-CG-BSE1W-50L E1W 50L M50 15 44.00 38.00 52.60 44.00
DSSB-CG-BSE1W-63S E1W 63S M63 20 50.50 44.00 59.00 50.00
DSSB-CG-BSE1W-63L E1W 63L M63 20 56.00 50.00 66.00 56.00
DSSB-CG-BSE1W-75S E1W 75S M50 20 62.00 56.00 71.00 63.00
DSSB-CG-BSE1W-75L E1W 75L M75 20 68.50 62.00 78.00 69.00
DSSB-CG-BSE1W-90 E1W 90 M90 20 80.00 65.00 96.00 84.00
DSSB-CG-BSE1W-100 E1W 100 M100 20 90.00 82.00 102.00 84.00
*All Dimension are in Millimeters

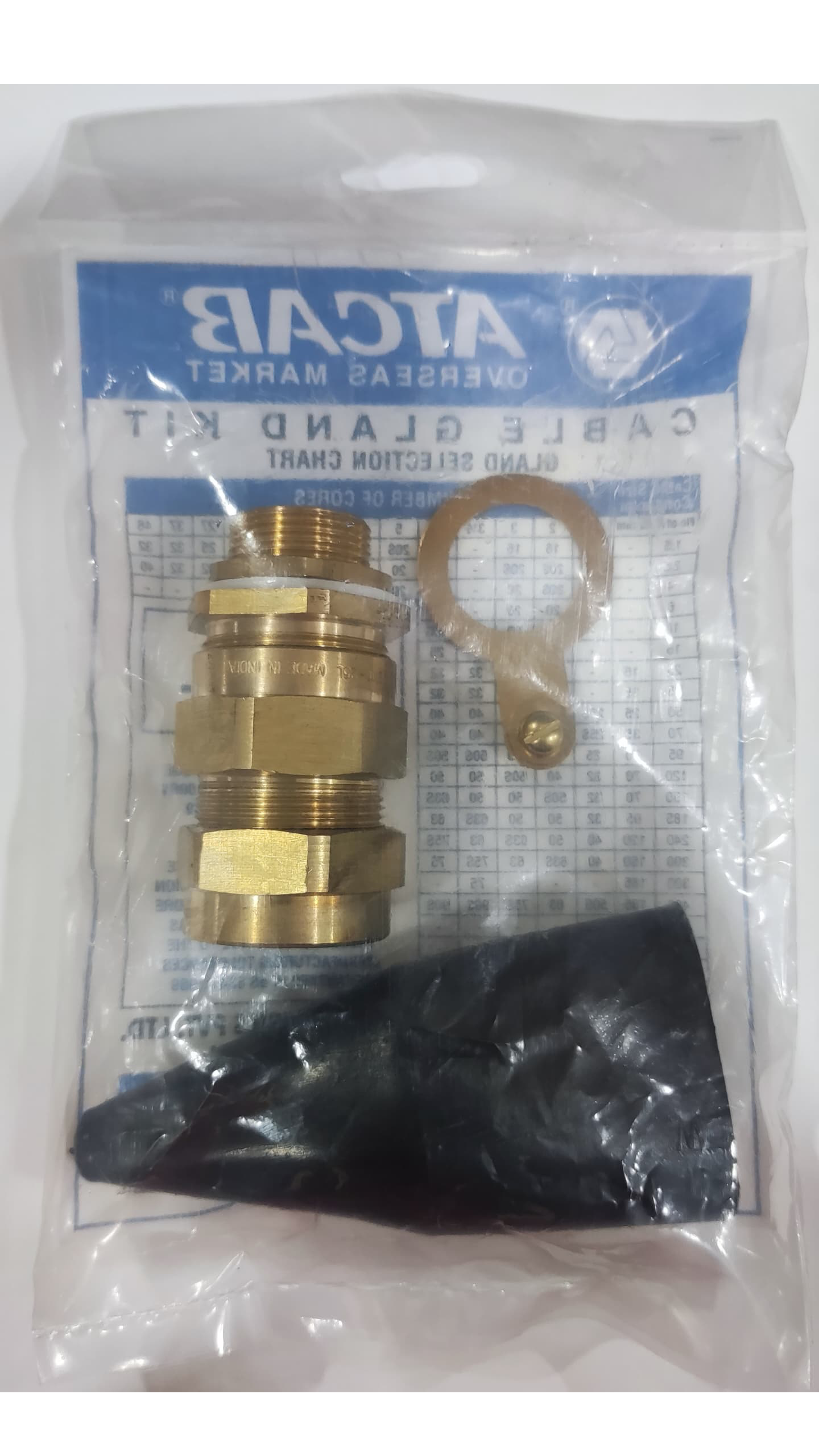

*Product Supplied in Kit form
