Description

ALUMINIUM CABLE GLANDS

Product Description

Standard : BS 6121

Size : 20 mm to 90 mm S & L

IP Rating : IP66

Material : Aluminium

Finishing : Natural Aluminium Finish

Application : For indoor or outdoor use with all types of SWA cable

Operating Temp : Standard seals -20^oC to +80^oC

Function : CW type glands provide a seal on the outer sheath and an armour specific armour clamp for the armoured cable.
The armour clamp provides an electrical bond between the armour cable and the gland.

Product Specification

Item Code	Gland Size	Thread Size 'C' Metric	Minimum Length Of Thread 'D'	Cable Range
				Max 'A'	Max 'B'
				Max 'A'	Max 'B'
DSSB-CG-AL-20S	CW 20S	M20	10	11.80	15.80
DSSB-CG-AL-20L	CW 20L	M20	10	14.00	20.80
DSSB-CG-AL-25S	CW 25S	M25	10	18.00	24.00
DSSB-CG-AL-25L	CW 25L	M25	10	20.00	27.20
DSSB-CG-AL-32S	CW 32S	M32	10	24.50	31.00
DSSB-CG-AL-32L	CW 32L	M32	10	26.30	33.50
DSSB-CG-AL-40S	CW 40S	M40	15	30.40	38.50
DSSB-CG-AL-40L	CW 40L	M40	15	32.20	40.00
DSSB-CG-AL-50S	CW 50S	M50	15	38.20	46.30
DSSB-CG-AL-50L	CW 50L	M50	15	44.00	52.60
DSSB-CG-AL-63S	CW 63S	M63	15	50.00	59.00
DSSB-CG-AL-63L	CW 63L	M63	15	56.00	65.30
DSSB-CG-AL-75S	CW 75S	M50	15	62.00	17.60
DSSB-CG-AL-75L	CW 75L	M75	15	68.00	78.00
DSSB-CG-AL-90S	CW 90S	M90	20	84.00	96.00
DSSB-CG-AL-90L	CW 90L	M90	20	84.00	102.00

*All Dimension are in Millimeters (mm)

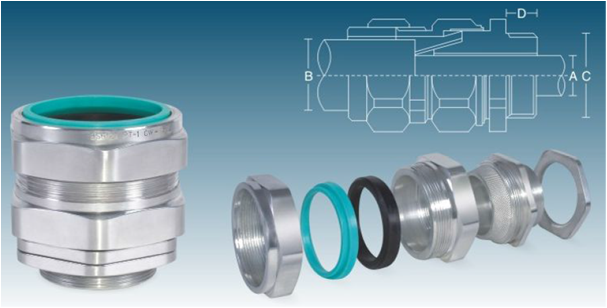

Product Image
