Description

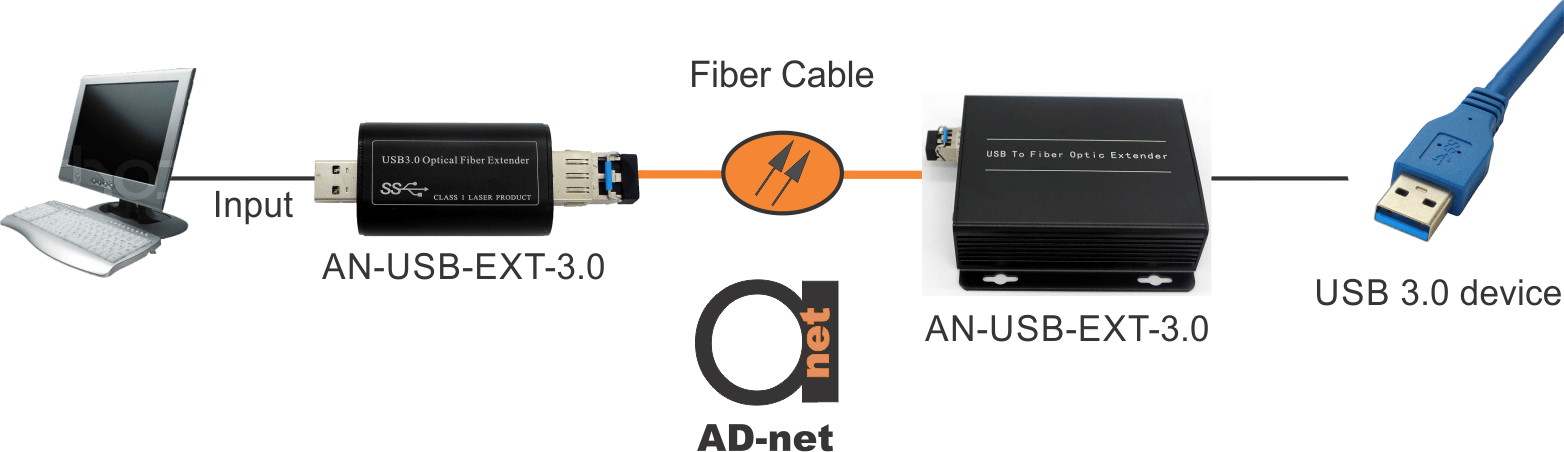

USB 3.0 To Fiber Optic Extender, also called USB3.0 over Fiber Converter. The device includes a transmitter (client-side) and a receiver (host-side), which can extend the SuperSpeed USB3.0 to a remote location over 1or 2 core fiber cable, max distance 250m (SM or MM fiber cable). The device can extend high bandwidth USB 3.0 webcams and storage devices, be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.

Features

Max extension distance 250m (SM or MM fiber cable) .
Duplex/Single LC fiber connecter, pure hardware design, no driver needed, compatible with all operation systems, support plug and play
Support USB3.0 SuperSpeed up to 5Gbps, USB 3.0 Type A Receptacle
Not backwards compatible with USB 2.0 and USB 1.1

Specifications

Optical	Connector	Duplex/Single LC
Optical	Wave length	1310nm/1550nm
Physical	Size (L× W ×H)	104mm x104mm x28mm
	Case	Aluminum
	Color	Black
	N.W.	0.75Kg
Power	Voltage	5V DC
	sender power consumption	<5W
	receiver power consumption	<5W
Environment	Working temperature	0℃-50℃
	Storage temperature	-40-85℃
	Humidity	0-95% (non-condensing)

Ordering Information

AN-USB-EXT-3.0

USB 3.0 To Fiber Optic Extender set, Transmitter + Receiver, Supports USB 3.0 (no backwards compatible to USB 2.0/1.1), max distance 250 m, universal Single mode and Multimode Cable support.
