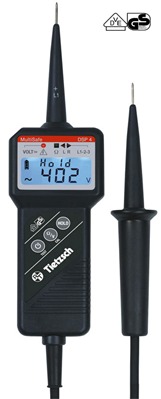

MULTISAFE DSP 4
Product Description
The Multisafe DSP 4 is a safe and easy to use voltage detector testing tool for all types of industry. It is a versatile and completely safe voltage detector with multimeter precision. The protective resistors are placed directly behind both test electrodes to offer maximum safety against surge voltage. The MultiSafe DSP 4 is able to turn itself on and off automatically.
Voltage Tester:
** precise display of the voltage 1 V up tto 1200 V AC / 0,001 up to 1500 V DC
** resistant to voltage - CAT IV 600 V - VDE certified
** clear LED indicator for dangerous voltage
** hold the measured value with the HOLD key
** large illuminated display
Continuity tester:
** continuity test with sound
** resistance measurement in the range of 0,1 kOhm to 2000 kOhm
** green LED for continuity
Phase and phase sequence tester:
** phase tester with display ''POL''
** phase sequence tester with LED display left / right
** phase and phase sequence tests can also be performed with insulating gloves
** additional phase sequence testing without ground reference for IT power grids
Product Benefits
** ST-version slim test electrodes for tight terminal blocks
** easy operation
** insulation fault detection by two-colour cable insulation
** IP 65 - waterproof
Product Specification
|
Type |
Item Code |
Norminal Voltage |
Frequency |
Phase Sequence
Test for IT Power
Grids Without
Ground Reference
|
Adjustable
Electrode
length
4 or 15 mm |
|
DSP 4 |
DSSB-RSE-VT-84402 |
24 - 1000 V AC
24 - 1500 V DC |
DC / 15 - 10 000 Hz |
No |
No |
|
DSP 4F |
DSSB-RSE-VT-84403 |
Yes |
No |
|
DSP 4ST |
DSSB-RSE-VT-84405 |
No |
Yes |
|
DSP 4FST |
DSSB-RSE-VT-84406 |
Yes |
Yes |
Product Images
.jpg)
(1).jpg)
(1).jpg)
