3M QT-II SINGLE-CORE XLPE SHIELDED CABLE

Product Description

Each 3M Quick Term II series kits will handle a wide range of cable and conductor sizes. There is the option to choose skirted or tubular and conversion from single core to three core and inverted applications. The 3M Brand Rejacketing Sleeves are a series of silicone rubber insulators incorporating inner-expandable polyester braid designed to reduce sliding friction and deliver the insulator onto the cable.

Rejacketing sleeves are designed to protect three-conductor power cable phase legs from exposure to moisture, corrosion, ozone, ultra-violet radiation, physical contact and other hazards associated with the termination operating environment.

Product Specification

VOLTAGE	APPLICATION	3M PRODUCT NUMBER	Conductor Size Range (sq. mm)	Primary Insulation O.D. Range (mm)	Cable Jacket O.D. Range (mm)
5-15KV	OUTDOOR	5632K	10 - 50	8 - 17	14 - 23
		5633K	70 - 120	16 - 23	20 - 30
		5635K	150 - 300	21 - 34	25 - 41
		5636K	400 - 630	28 - 42	33 - 48
		5637K	500 - 800	35 - 50	33 - 61
5-15KV	INDOOR	5622K	35	11 - 17	-
		5623K	50 - 95	14 - 22	-
		5624K	95 - 240	20 - 33	-
		5625K	400 - 630	28 - 46	-
Up to 24KV	INDOOR	5633K	35 - 50	16 - 23	20 - 30
		5635K	70 - 120	21 - 34	25 - 41
		5636K	185 - 240	28 - 42	33 - 48
		5637K	300 - 630	33 - 50	38 - 61
Up to 24KV	OUTDOOR/ INDOOR	5691K	35 - 50	16 - 23	20 - 30
		5692K	70 - 120	21 - 34	25 - 41
		5693K	185 - 240	28 - 42	33 - 48
		5694K	300 - 630	33 - 50	38 - 61
Up to 35KV	INDOOR	5691K	35 - 70	16 - 23	20 - 30
		5692K	120 - 185	21 - 34	25 - 41
		5693K	185 - 300	28 - 42	33 - 48
		5694K	400 - 500	33 - 50	38 - 61
		5684-3 MAL	630 - 800	33 - 53	38 - 75
Up to 35KV	OUTDOOR/ INDOOR	5696K	35 - 70	21 - 34	25 - 41
		5697K	120 - 185	28 - 42	33 - 48
		5698K	240 - 400	33 - 49	38 - 61
		5608 MAL	500 - 630	46 - 75	-

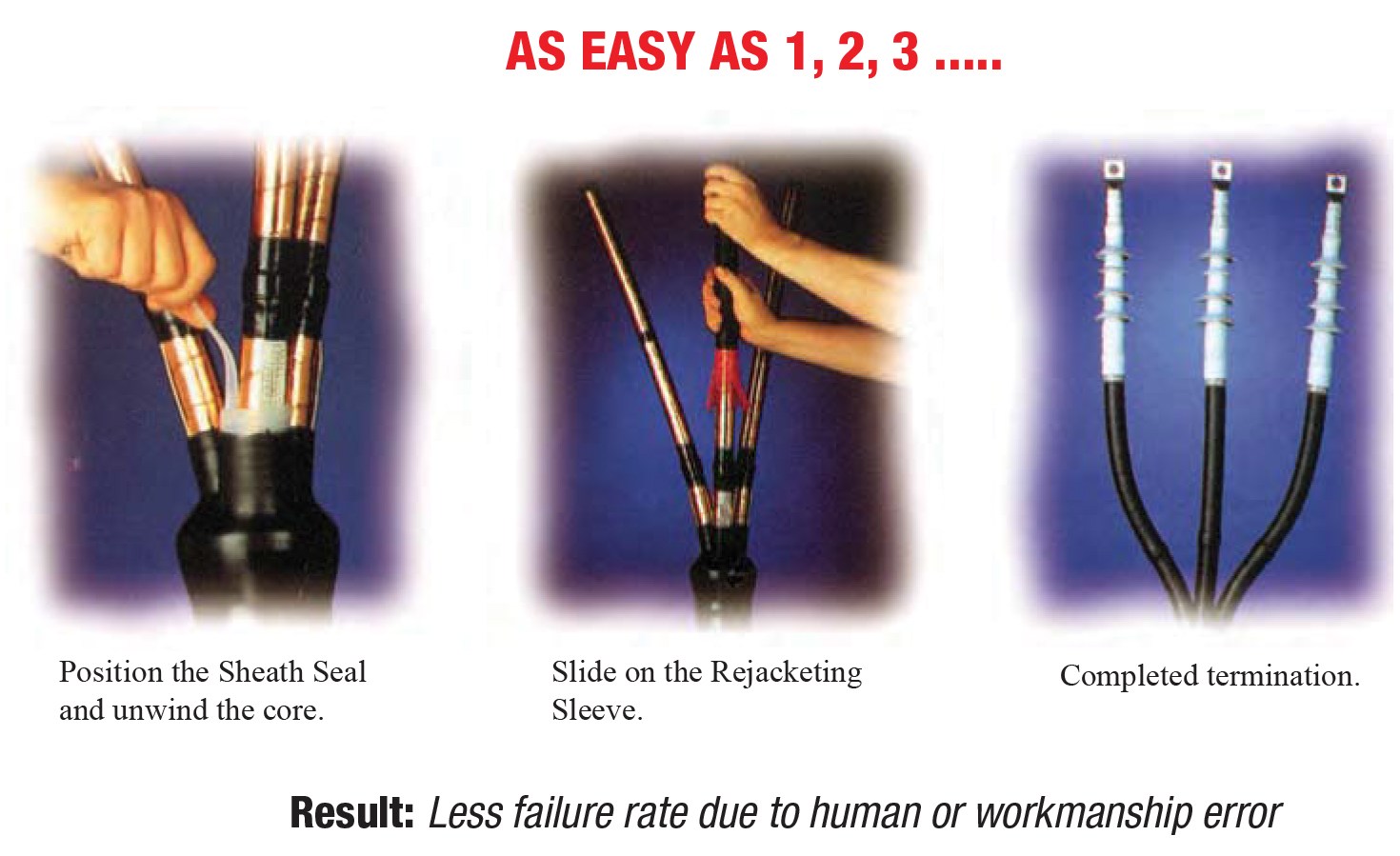

Product Image
