Description

View / Print Catalogue





3M ''QUICK TERM II'' COLD SHRINK SILICONE RUBBER
TERMINATION KIT FOR INDOOR 3 CORE XLPE/ PVC CABLES (UP TO 33KV)




Product Description




Each 3M Quick Term II series kits will handle a wide range of cable and conductor sizes. There is the option to choose skirted or tubular and conversion from single core to three core and inverted applications. The 3M Brand Rejacketing Sleeves are a series of silicone rubber insulators incorporating inner-expandable polyester braid designed to reduce sliding friction and deliver the insulator onto the cable.

Rejacketing sleeves are designed to protect three-conductor power cable phase legs from exposure to moisture, corrosion, ozone, ultra-violet radiation, physical contact and other hazards associated with the termination operating environment.




Product Specification


(Silicone Rejacketing Sleeve/Dark GreyBoot/QT-II 6 Skirted Version)
 *Cable Insulation Outer Diameter
**Up to 33KV Indoor Application




Kit Number Cable Insulation Range (mm) Cable OD Range (mm) Cable Conductor Size (sq. mm)*
22KV 33KV
64-RS 41-3 MAL 21 - 34 (K6S) 48 - 78 50 - 95 70
64-RS 42-3 MAL 21 - 34 (K6S) 64 - 109 120 - 240 95 - 150
64-RS 43-3 MAL 28 - 42 (L6S) 64 - 109 300 - 400 120 - 240
64-RS 44-3 MAL 33 - 50 (M6S) 66 - 119.4 - 240 - 300

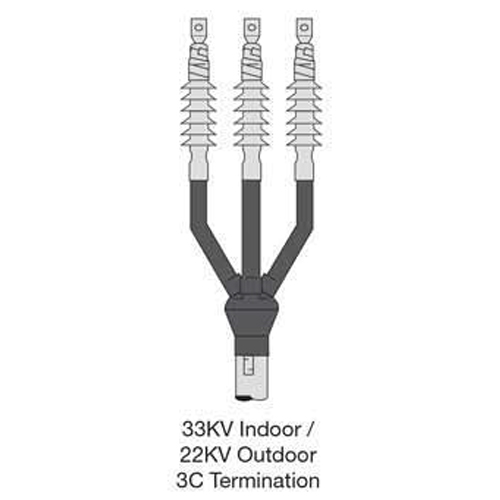

Product Image
