NON-INSULATED SPADE TERMINALS

Product Description

The Non-Insulated Spade Terminal is made up with high quality 99.95% original pure copper (Cu) with its finishing to be electroplated with tin (Sn) to prevent any form of corrosion to happen. It is used to mate, connect, or terminate a single wire, while allowing for a connection to a screw or stud type electrical connection. This is not suitable for special performance or installation characteristics.

Compliance: Brittish Standard (B.S), Japan (JLS), Germany (DIN) and United State of America (USA)

Product Specification

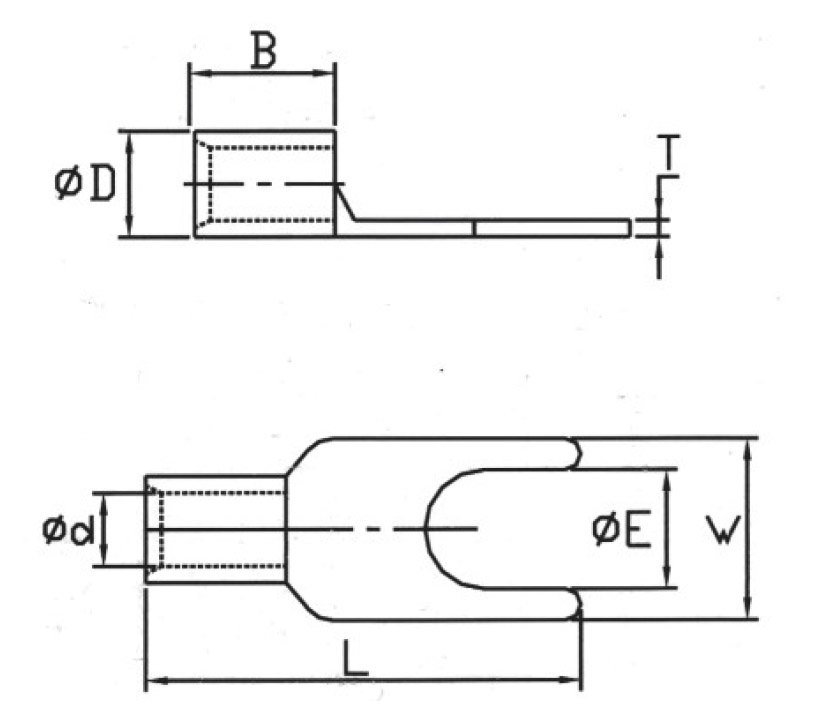

Item Code	Wire Range (mm2) #AWG	Hole Size	Dimensions
Item Code	Wire Range (mm2) #AWG	ØE	W	B	L
DSSB-CNT-1.25-3YS	(0.25 - 1.65) 22 - 16	3.7	5.7	4.50	16.0
DSSB-CNT-1.25-3YW		3.7	6.2
DSSB-CNT-1.25-3YSA		3.2	5.7
DSSB-CNT-1.25-4YS		4.3	6.4
DSSB-CNT-1.25-4YW		4.3	7.2
DSSB-CNT-1.25-5Y		5.3	8.0
DSSB-CNT-1.25-6Y		6.7	10.7		17.0
DSSB-CNT-2-3YSA	(1.04 - 2.63) 16 - 14	3.2	5.7	4.50	16.0
DSSB-CNT-2-3YS		3.7	5.7
DSSB-CNT-2-3YW		3.7	6.2
DSSB-CNT-2-4YS		4.3	6.4
DSSB-CNT-2-4YW		4.3	7.2
DSSB-CNT-2-5Y		5.3	8.0
DSSB-CNT-2-6Y		6.7	10.7		19.0
DSSB-CNT-5.5-3Y	(4.60 - 6.64) 12 - 10	3.7	8.2	6.5	19.5
DSSB-CNT-5.5-4Y		4.3	8.2
DSSB-CNT-5.5-5Y		5.3	9.0
DSSB-CNT-5.5-6Y		6.4	12.0		24.0
DSSB-CNT-8-5Y	(6.64 - 10.52) 8	5.3	9.0	8.6	23.5
DSSB-CNT-8-6Y	(6.64 - 10.52) 8	6.7	12.0	8.6	24.0
DSSB-CNT-14-5Y	(10.52 - 16.78) 10	5.3	12.0	10	27.5
DSSB-CNT-14-6Y	(10.52 - 16.78) 10	6.7	12.0	10	27.5
