INSULATED PIN TERMINALS




Product Description

The Insulated Pin Terminals is made up of 99.95% original pure copper (Cu), electroplated with tin (Sn) to prevent any corrosion from happening. It is mainly used to protect the wire from over tightening which will give a reliable electrical connection. The insulation use is made up of polyvinyl-chloride (PVC) which helps prevent wire damage in bending application. The insulated pin terminals is complaince with British Standard (B.S), Japan (JLS), Germany (DIN) and United States of America (ANSI).




Product Specification

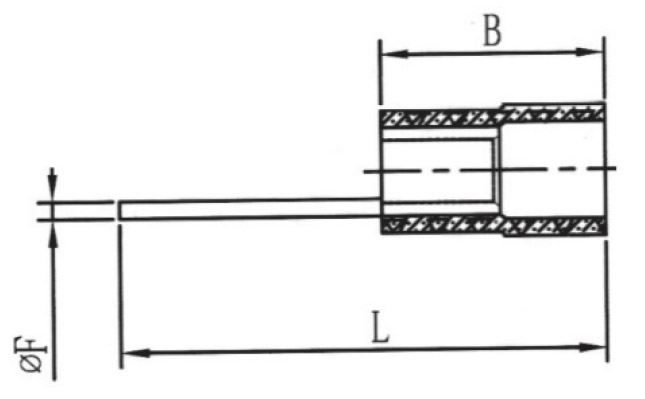

Item Code  Wire Range Dimensions (mm)
Colour Single (mm) Twine AWG ΦF L B
DSSB-CNT-PIN1.25 Red 0.57 - 1.44 0.25 - 1.65 22 - 16 2 22.5 10.4
DSSB-CNT-PIN2 Blue 1.14 - 1.82 1.04 - 2.63 16 - 14 2 22.9 10.4
DSSB-CNT-PIN5.5 Yellow 1.82 - 2.89 2.63 - 6.64 12 - 10 2.7 27.3 13.5

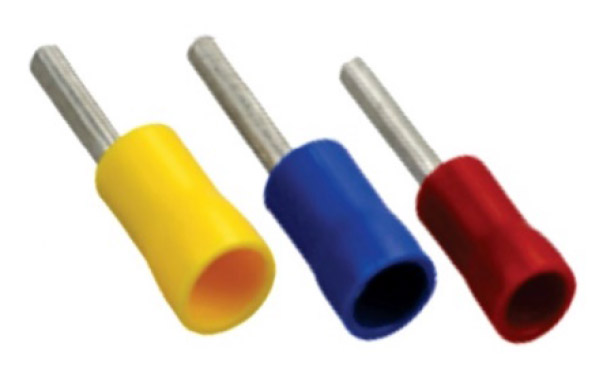

Product Image
