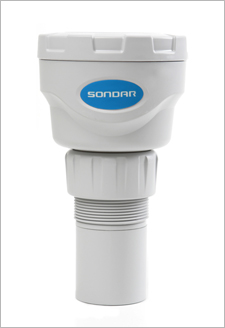

ULM-1000C is an ultrasonic non-contacting level meter designed sensor and transmitter in one compact unit. The measurement range is 6 meters. It is a two wire loop-powered product. ULM-1000C provides a user friendly design so it is very convenient to operate and install. It is also simple and inexpensive to maintain. All functions are optimized which enables you to effectively monitor the liquid level and keep your facilities running safely and reliably.
Features
- Compact Size
- User Friendly menus
- Temperature Compensation by a Built-in temp.sensor
- Two wire loop-powered
- Simple Installation & Maintenance
Technical Specification
| Dimension | Overall 117(D) x 209(H) mm |
| Process Connection | 2''PF |
| Weight | ca. 1kg |
| Sensor Material | Polypropylene |
| IP Rating | IP67 |
| Temperature |
-20℃ ~ 70℃ (-4 ℉ to 158℉) |
| Measuring Range | 0.3 to 6m (0.98 to 19.6ft) |
| Accuracy | 0.2% of F.S |
| Display Resolution | 1mm |
| Beam Angle | 8° at -3dB |
| Damping Rate | Adjustable 0.01m/min to 100m/min |
|
Temperature Compensation |
Built-in temperature sensor |
| Analog Output | 1ea, 4 to 20mA, 550Ω at DC 24V |
| Display | 5 Digit Numeric LCD |
| Power Supply | DC 20 to 30V |
| Supply Current | Less than 0.021A |
| Certification | CE |
| Warranty | 3 years |
