Portable Earthing Equipment

VIEW / PRINT CATALOGUE

PORTABLE EARTHING EQUIPMENT FOR SUBSTATION





Product Description

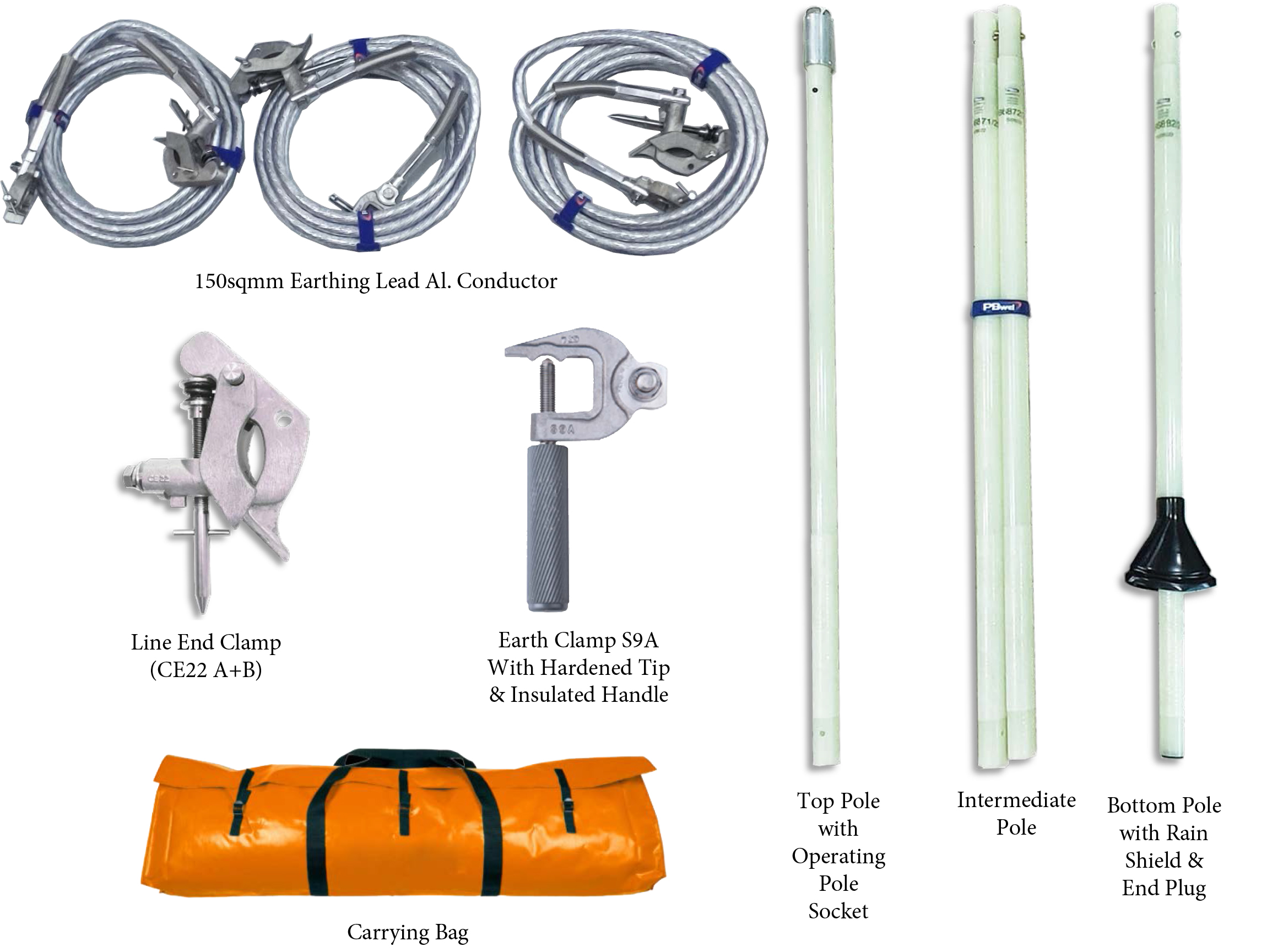

Substation Portable Earthing Kit-1

• 3 x 7m Earthing Lead Conductors (150sqmm)
• 4 x 1.22m Operating Pole (1 x Top Pole with S9D Operating Socket , 2 x Intermediate Pole, 1 x Bottom Pole with Rain Shield )
• 3 x Line End Clamp (CE22 A+B)
• 3 x Earth Clamp (S9A with Hardened Tip & Insulated Handle )
• 1 x Carry Bag
Note : Special Longer Earthing Leads are available upon request.

VIEW / PRINT FLYER

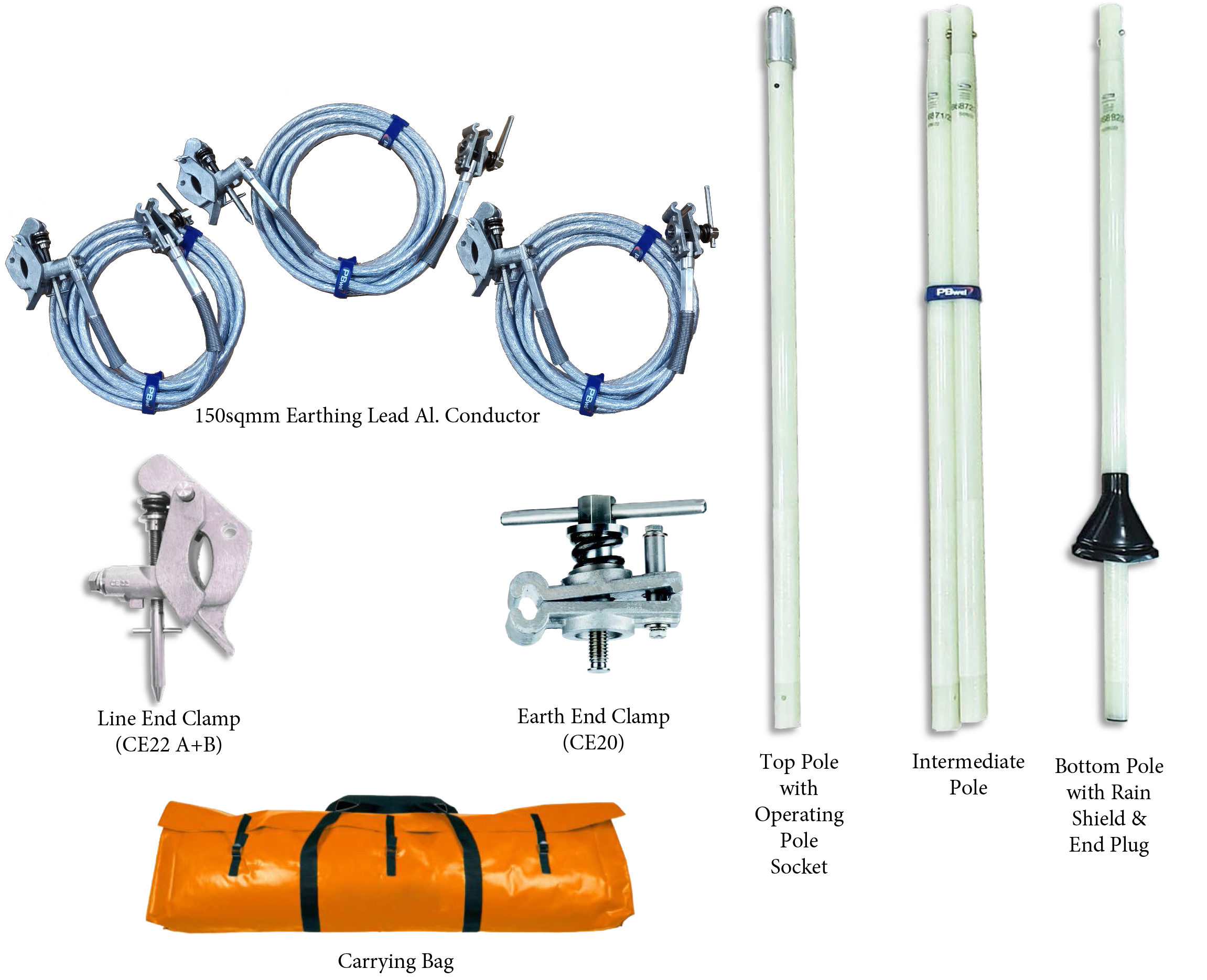

Substation Portable Earthing Kit-2

• 3 x 7m Earthing Lead Conductors (150sqmm)
• 4 x 1.22m Operating Pole (1 x Top Pole with S9D Operating Socket , 2 x Intermediate Pole, 1 x Bottom Pole with Rain Shield )
• 3 x Line End Clamp (CE22 A+B)
• 3 x Earth End Clamp (CE20 )
• 1 x Carry Bag
Note : Special Longer Earthing Leads are available upon request.

VIEW / PRINT FLYER




Product Specification

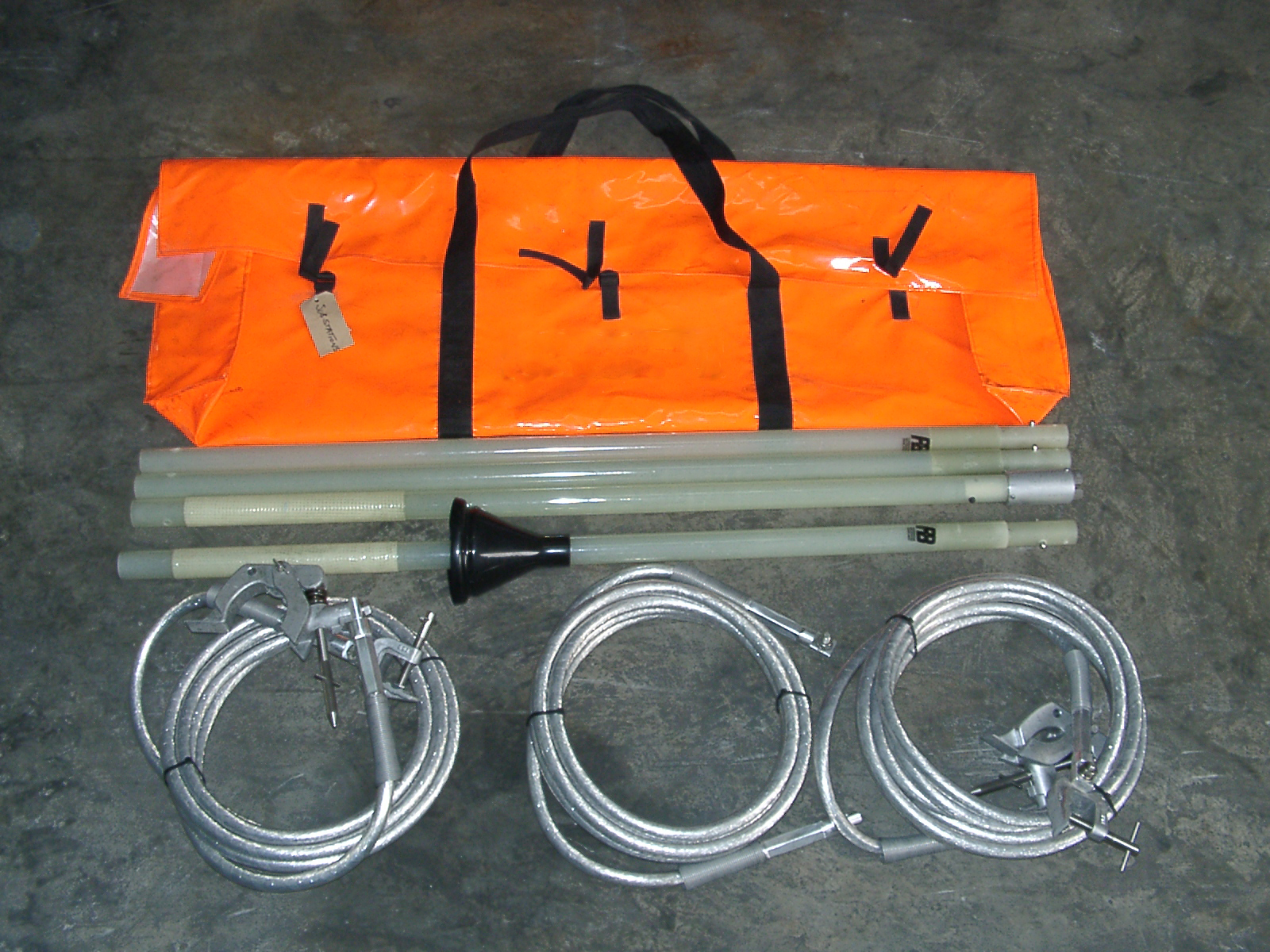

Product Image

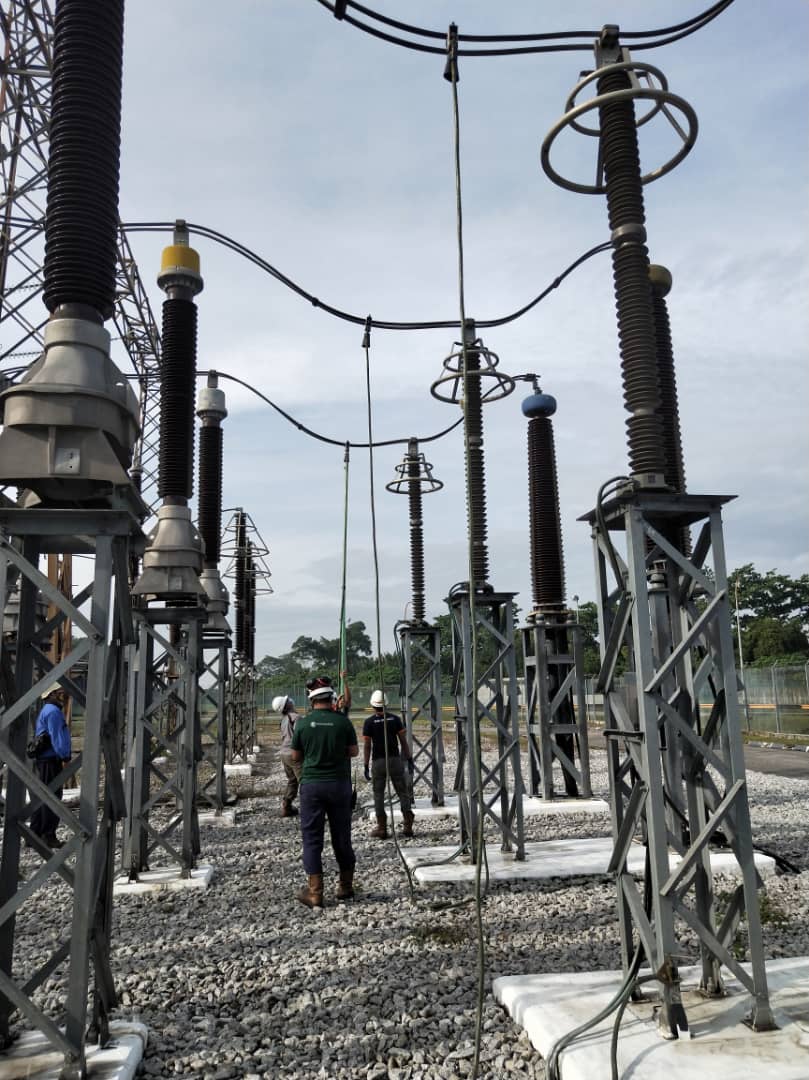

Portable Earthing being use at TNB Connaught Bridge 275 kV Power Station


Portable Earthing being used at 132 kV Substation at Kota Damansara during Maintenance Work.
