Description
-
Prodec Grooved Acoustic Panels is a kind of slit resonance absorption material board which is made from high density panel with grooves on the surface and perforated holes at the back side.
-
It has strong selection on the sound spectrum and particular great performance on the middle and low frequency.
-
It has better sound absorption effect on medium and high frequency if there is sound absorption cotton filled at the back side cavity.
Specification
|
Standard Size |
: |
133X2440mm / 197X2440mm |
|
Thickness |
: |
12mm / 15mm / 18mm |
|

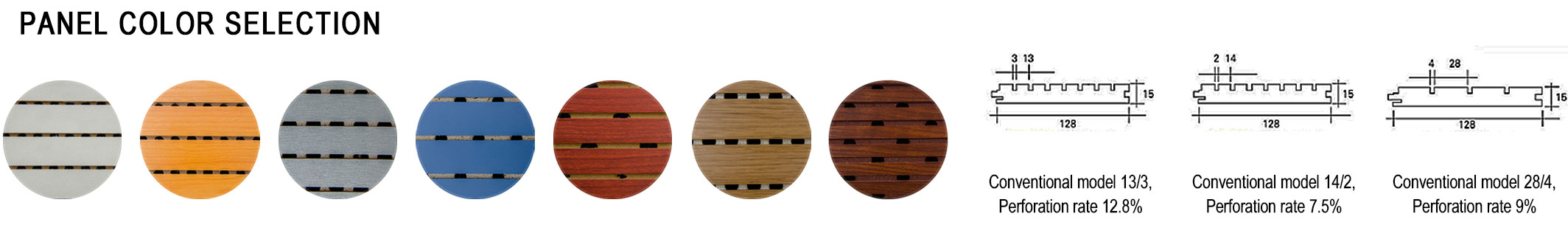

Pattern |
: |
28/4, 13/3, 59/5 and etc |
|
Finish |
: |
Standard/FR/ECO MDF| MGO| 3 Layer| 5 Layer |
|
Core |
: |
Melamine| Wood Veneer| Paint |
Application Place
Studios, Auditoriums, Meeting rooms, Gymnasiums

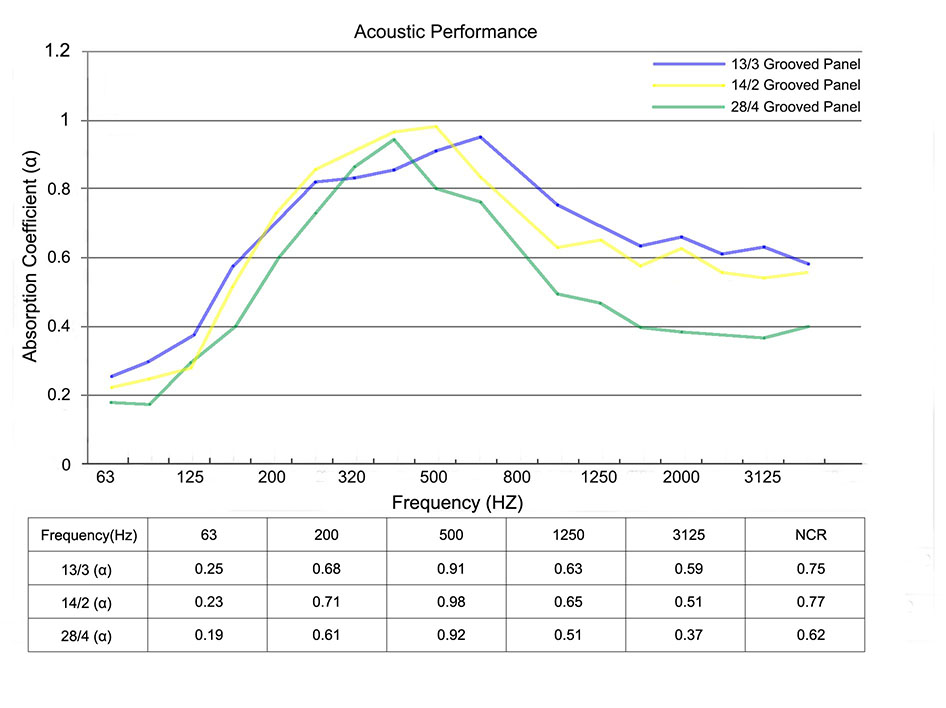

Acoustic Performance
Test Condition:
-
15mm thickness acoustic panel
-
Fill 50mm thickness 32kg/m3 acoustic cotton at the back
-
50mm Back Space

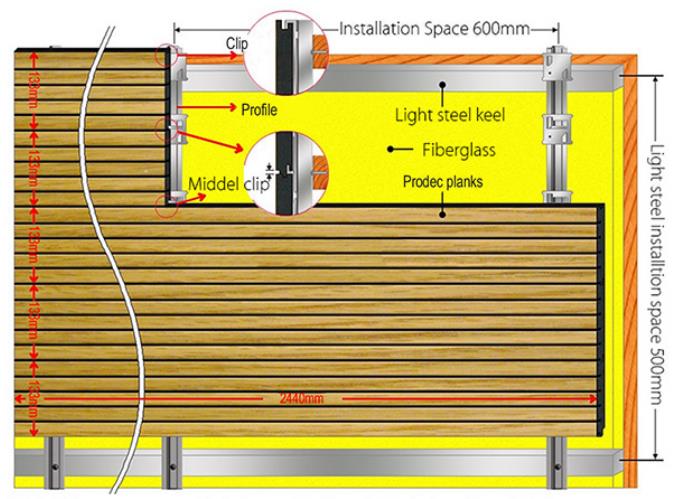

Installation Method
This installation system components including Omega profile, Middle Clips and Edge Clips, apply to Prodec Grooved Acoustic Panels.
-
Mount wood battens or light steel keels on the wall according to the design.
-
Install fiberglass/rock wool between the battens/keels.
-
According to the work drawing, install Omega™ profile on wood batten and put middle/edge clips on profile.
-
Fix Prodec Grooved Acoustic Panels one by one, and press clips and panel strength.
