POUCH PACKAGING SYSTEM | COOKING OIL | PE BAG | PISTON FILLING

POUCH PACKAGING SYSTEM | COOKING OIL | PE BAG | PISTON FILLING

Category: POUCH PACKAGING MACHINE Available
For more information, visit our official website at excellentpackmachinery.com.my

Description

Description

Machine Structure and Feature
  1. New design, compact, solid, reliable, stable, low noise, and high efficiency.

  2. Piston pump as measuring system.

  3. PLC operation with touch screen control, easy to operate and efficient.

  4. Photoelectric sensor control system, accurate positioning.

  5. Servo motor to control film feeding system, higher accuracy, higher speed.

  6. Inverter to control motor speed, resulting a stable operation, lower noise, and lower failure rate.

  7. Digital temperature controller, easy to operate.

  8. Auto counting system, easy to monitor quantity of output.

  9. Automatic measuring, filling, sealing, and date code printing.

  10. Bag length is controlled on screen display.

  11. A few automatic alarming function, reduce wastage to minimum.
Parts Included In System
  1. EM-420 machine

  2. Piston Pump

  3. Finished product conveyor

  4. Storage tank (optional)

  5. Piping connected from storage tank to machine (optional)
Optional Equipment
  1.  Air Compressor

  2.  Additional piston pump – for higher speed and capacity.
Scope of Application
  1.   Cooking oil

Model EM - 420PPE
Product To Be Packed Cooking Oil
Capacity 8 - 12 bags / min
Packaging Weight 100 - 1000ml
Film Width 420mm
Bag Length 60 - 300mm
Bag Width 60 - 200mm
Film Material PE
Power Source  220V / 50Hz / 1,8kW
Air Consumption 0.8Mpa , 0.4m3 / min
Machine Weight 400kg
Machine Dimension L1260 * W1050 * H1560mm

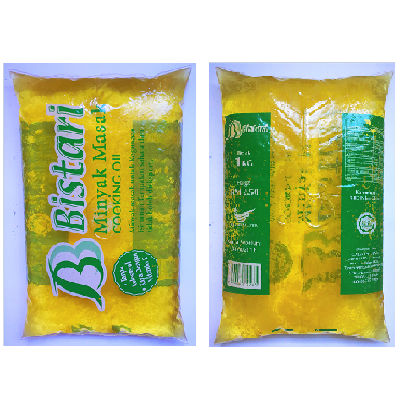

Form of Packaging
