Description

Drill+ CNC drilling machine (Gantry type) – Drilling and Tapping

ProArc Drill+ Gantry type auto drill machine is an automatic, efficient and high performance CNC drilling machine.
It constituted by:-
1. IPC based CNC controller
2. Servo Z-axis lifter

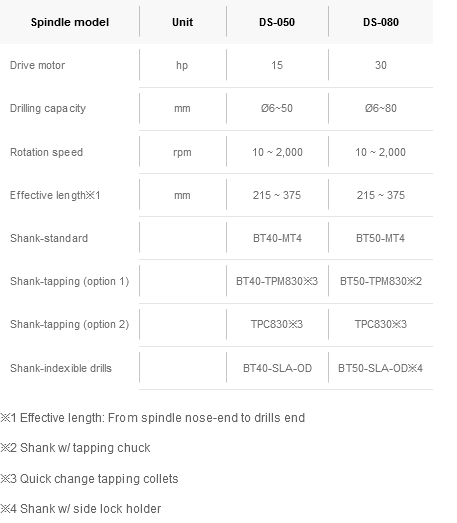

3. Servo drill spindle
4. Auto tool length detector We make drilling process easy, friendly and prevent mis-operation.

• AC Servo Z axis lifter
  • Adopt ball screw feeding on Z axis with traveling speed 6,000 mm/min in 350mm stroke and is capable to support precise sequence control for primary, extremity and pecking process for auto drilling process.
• IPC based CNC controller
  •Unique and intuitive GUI with touch panel
• Build-in Drill+ CAM in the controller
  • Can read .dxf file and edit on job site directly

• Quick release tool exchange device
  • Change tool in seconds
• Multi-task process
  • Multi-home position can be defined for different jobs and edit in one drilling process
• Auto tool length detector – one touch
  • Save measure time and keep accuracy

• Cross line laser point unit
  • Check position, support plate edge alignment and tech mode

• Teach mode
  • Learn parts with multiple drill points and capable to edit drilling process without drawing
