Description
LAUNCH CNC-603A Injector Cleaner & Tester
SmartSafe CNC-603 cleaning injectors with ultrasonic and able to clean multiple fuel injectors at the same time. Combined with ultrasonic technology and microprocessor hydraulic control cleaning detection technology, CNC603 is an ideal tool for injector cleaning and testing.
FEATURES
Powerful Ultrasonic Cleaning
Ultrasonic cleaning to completely remove the carbon
deposit on the fuel injector.
Uniformity And Spray Ability Test
Test the uniformity of injection quantity of each fuel
injection nozzle and observe the injection state of
each fuel injector with the help of backlight.
Sealing Test
Test the sealing and leakage of the fuel injector
under a certain pressure.
Injection Volume Test
Make the nozzle continually spray for a certain time,
test the injection volume of the nozzle.
Automatic Cleaning & Testing
Automatically test the fuel injection nozzle through the preset program.
SPECIFICATIONS
|
POWER SUPPLY |
AC110V-127V, 50Hz/60Hz, 3Amax /
AC220V-230V, 50Hz/60Hz, 1.5A max |
|
MAIN ENGINE POWER |
300W |
|
ULTRASONIC CLEANING POWER |
100W |
|
ROTATIONAL SPEED RANGE |
10~9990rpm (steplength:10rpm) |
|
TIMING RANGE |
1-9999 second |
|
PULSE WIDTH RANGE |
0.5~25ms (step length:0.1ms) |
|
ENVIRONMENT TEMPERATURE |
0~45℃ |
|
RELATIVE HUMIDITY |
85% |
|
EXTERNAL MAGNETIC FIELDINTENSITY |
400A/m |
|
OPERATION VOLUME |
3000ml |

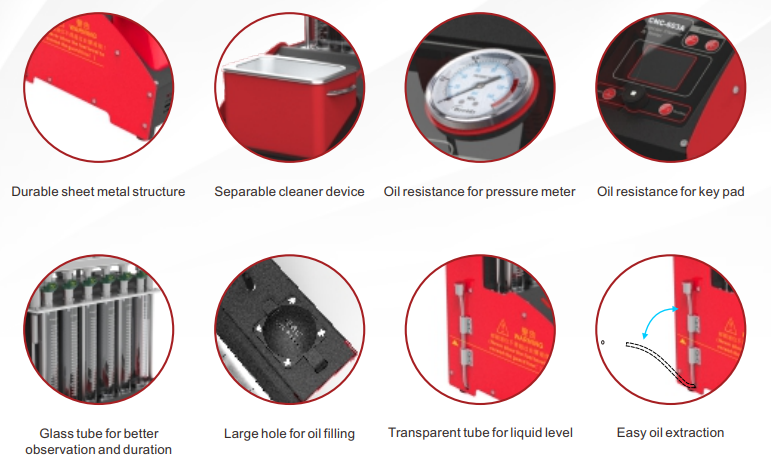

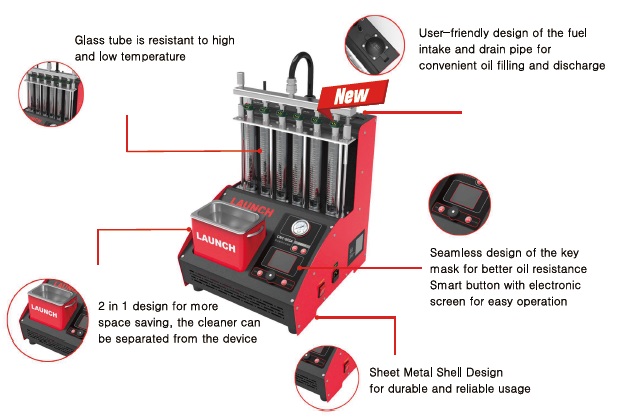

New Design, Better UE
.png)

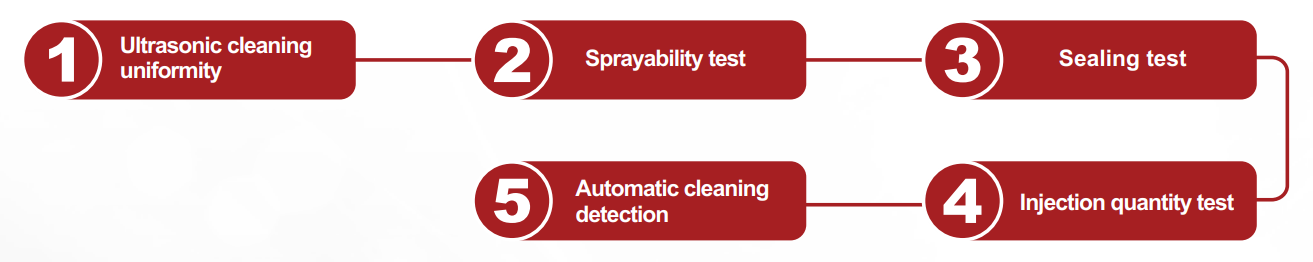

Cleaning and Testing Sequence
.jpg)
