Model: SWP-310

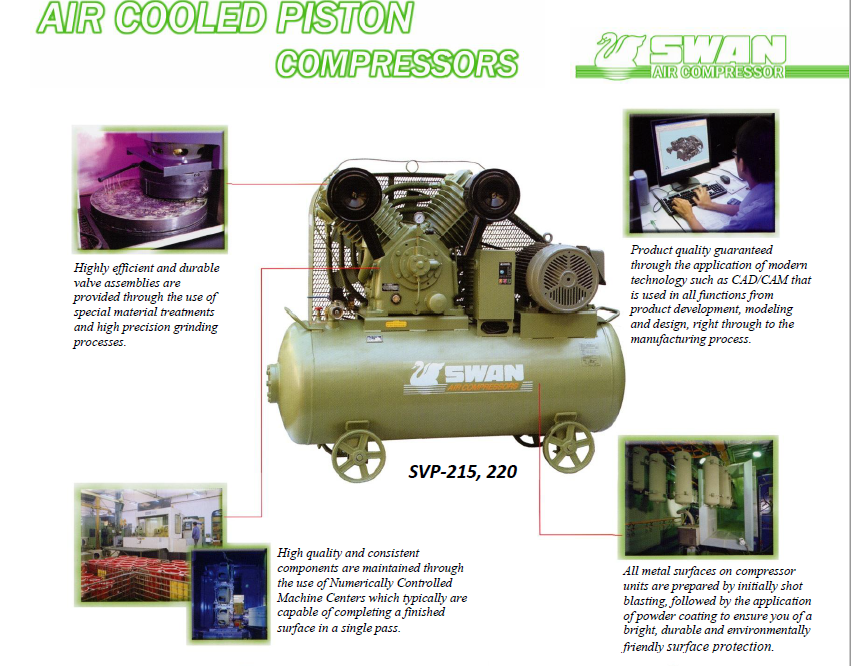

SWAN air compressor with oil flooded piston, 8Bar, 10HP electric motor.
Features
-
Efficient cooling fan keep compressed air at lower temperature.
-
Durable cast iron crankshaft and pump.
-
Easy user-friendly operation & simple to maintain.
-
Reliable performance with long operating life.
Control System
-
Pressure Switch System “P” Type
The automatic pressure switch will stop and restart the compressor according to air demand.
It is normally recommended for intermittent operation and smaller compressor units.

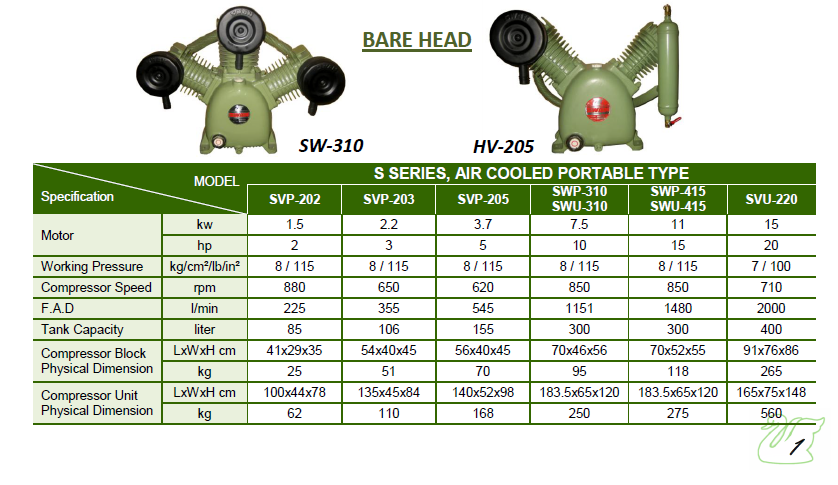

Specifications
|
Motor |
7.5kw / 10hp |
|
Working Pressure (kg/cm²) |
8 Bar |
|
Compressor Speed |
850 rpm |
|
F.A.D |
1151 L/min |
|
Tank Capacity |
300 Liter |
Compressor Block
Physical Dimension (L x W x H) |
700mm x 460mm x 560mm |
|
Weight (Bare Head only) |
95kg |
Compressor Unit
Physical Dimension (L x W x H) |
1835mm x 650mm x 1200mm |
|
Weight (Whole Unit) |
250kg |
