PRODUCT DETAILS 1. Portable end mill sharpener, can grind 2-flute, 3-flute, 4-flute end mill. 2. Grinding is accurate and rapid, easy operation with no skill to grind. 3. With diamond grinding wheel, only one piece can complete all procedures. 4. It can be equipped directly with an accurate angle and long service life. Standard with SDC grinding wheel for the Carbide material, Optional CBN grinding wheel for the HSS material. |
|

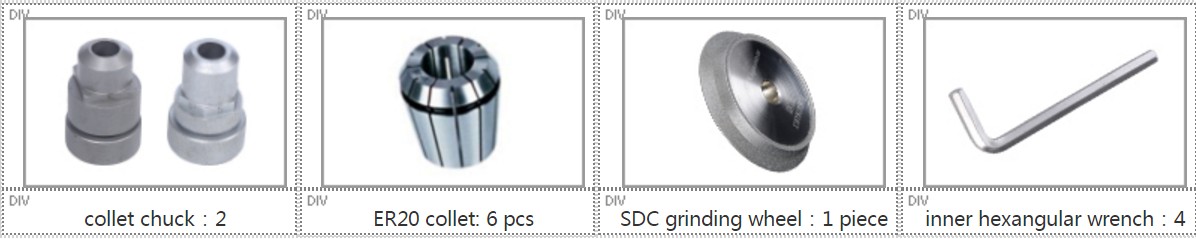

PRODUCT EQUIPMENT .jpg) |
|
SPECIFICATION Model：MR-X1 Diameter：Φ4-Φ14mm Power：220V/160W Speed：4400rpm Point angle：3° Dimension：35*25*25cm Weight：14KG Standard Equipmen： Grinding wheel :SDC (for carbide)×1 Six collets：Φ4,Φ6,Φ8,Φ10,Φ12,Φ14 Two collet chucks：2,4 flutes ×1 piece; 3,6 flutes×1 piece Optional Equipment：Grinding wheel :CBN (for HSS) |
 INSISTING ON ORIGINAL DESIGN FROM CHINA |

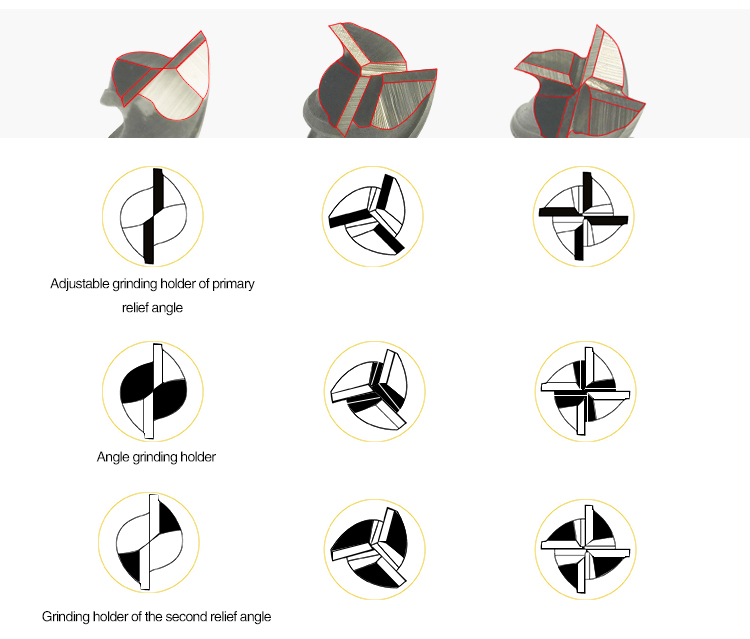

 Two -flute, three-flute, four-flute grinding sample |
 SMALL SIZE, SUITABLE FOR ANY PLACE TO DO END MILL GRINDING. |
 According the diameter of the mill to adjust the scale, the operation steps are clear. |

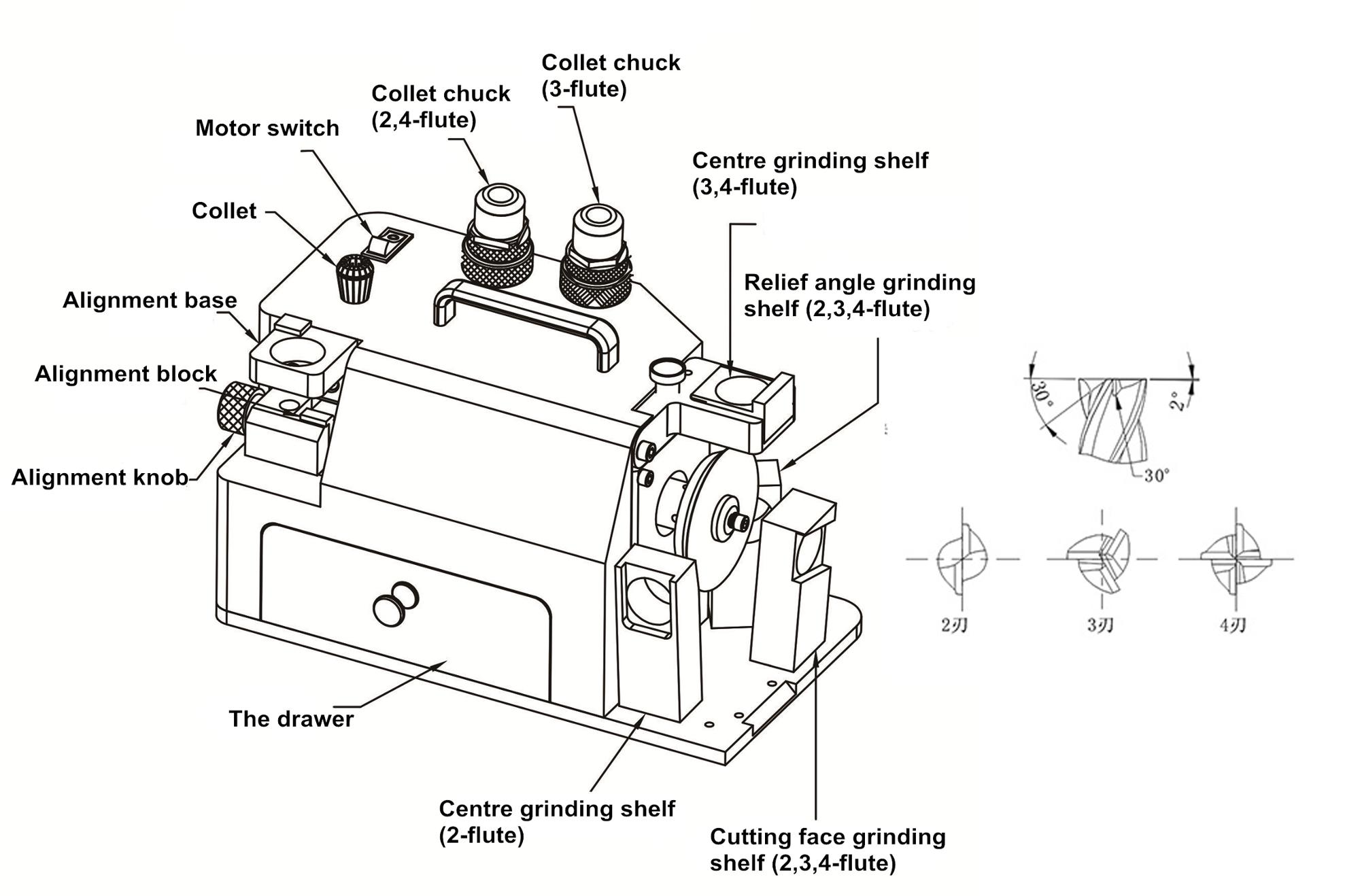

 EASY TO DO THE MILL SETTING |
 EASY TO DO THE MILL SETTING
According the diameter of the mill to adjust the scale, the operation steps are clear.
High precision and high efficiency. |
