Kyoritsu 2200 Digital Clamp Meter

Kyoritsu 2200 Digital Clamp Meter

Category: KYORITSU Out of stock
For more information, visit our official website at pacificradio.com.my

Description



Ultra Slim and lightweight Handy design
1000A AC Clamp Meter
AC40/400/1000A Auto Range
Φ33mm Tear Drop Jaw easy to use in tight places

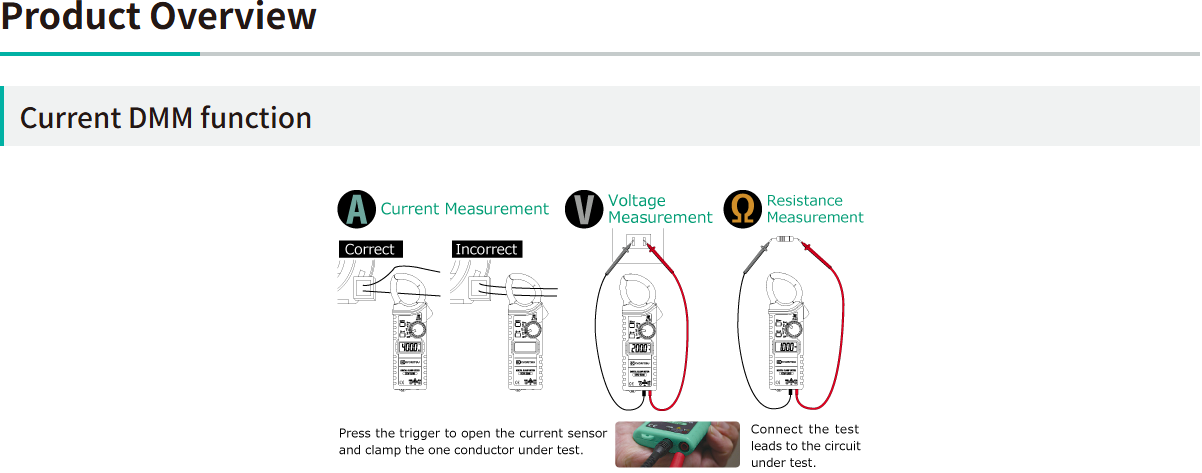

DMM function ACV, DCV, Ω, Continuity Buzzer
Fuseless electronic protection on up Ω/ to 600V
IEC61010-1 Safety Standard
CAT.III 600V (AC A)
CAT.III 300V / CAT.II 600V (AC/DC V)

φ33 MAX 1000A AC A DC/AC V Ω

Continuity Buzzer DATA HOLD AUTO POWER OFF

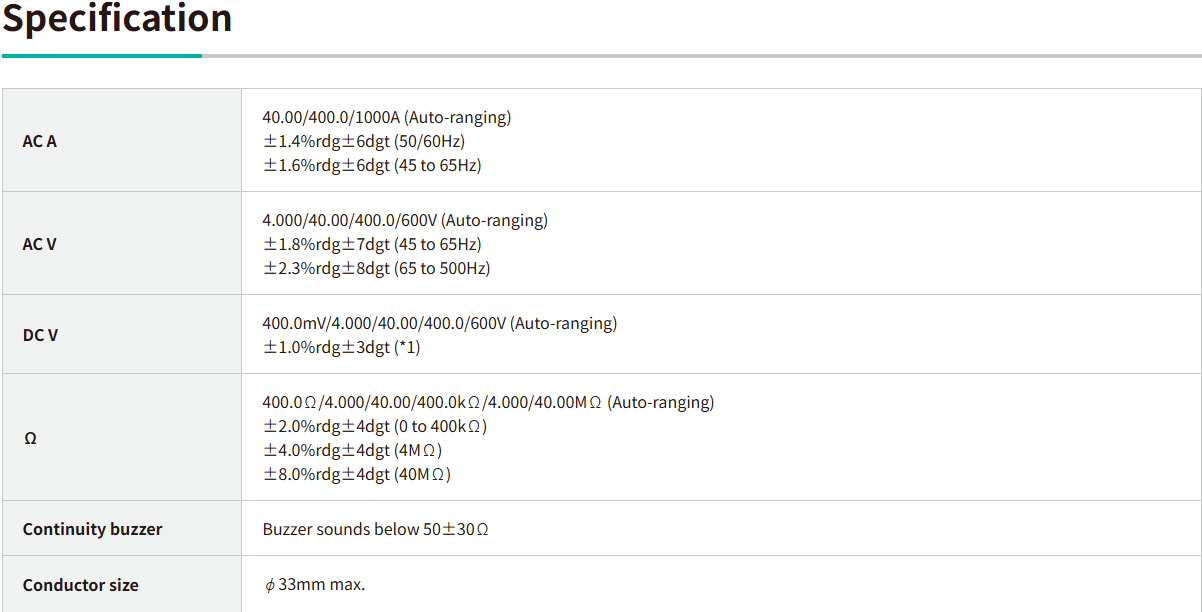

AC A
40.00/400.0/1000A (Auto-ranging)
±1.4%rdg±6dgt (50/60Hz)
  ±1.6%rdg±6dgt (45~65Hz)
AC V
4.000/40.00/400.0/600V (Auto-ranging)
±1.8%rdg±7dgt (45~65Hz)
  ±2.3%rdg±8dgt (65~500Hz)
DC V
400.0mV/4.000/40.00/400.0/600V (Auto-ranging)
±1.0%rdg±3dgt (*1)
Ω
400.0Ω/4.000/40.00/400.0kΩ/4.000/40.00MΩ (Auto-ranging)
±2.0%rdg±4dgt (0~400kΩ)
  ±4.0%rdg±4dgt (4MΩ)
  ±8.0%rdg±4dgt (40MΩ)
Continuity buzzer buzzer sounds below 50±30Ω
Conductor size Ø33mm max.
Withstand voltage 5320V AC for 5 seconds (AC A)
3540V AC for 5 seconds (AC/DC V)

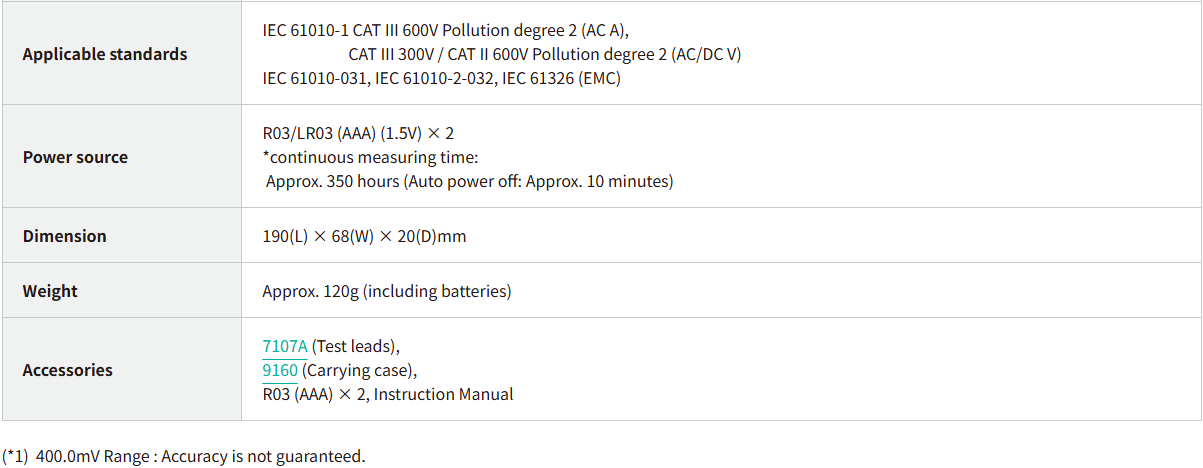

Applicable standards IEC 61010-1
CAT.III 600V Pollution degree 2 (AC A),
CAT.III 300V / CAT.II 600V Pollution degree 2 (AC/DC V)

IEC 61010-031, IEC 61010-2-032, IEC 61326 (EMC)
Power source
R03/LR03 (AAA) (1.5V) × 2
* continuous measuring time:
approx. 350 hours (Auto power off: approx. 10 minutes)
Dimensions 190(L) × 68(W) × 20(D)mm
Weight Approx. 120g (including batteries)

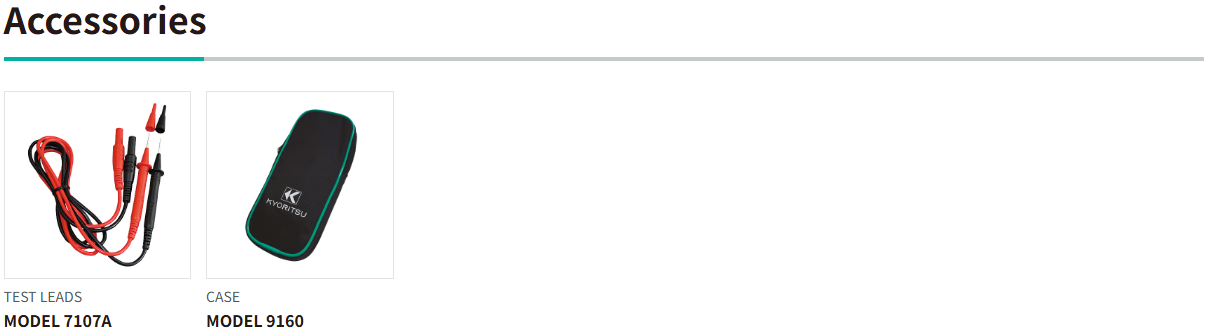

Accessories 7107A (Test leads), 9160 (Carrying case), R03 (AAA) × 2,
Instruction Manual
Optional 8008 (Multi-Tran)
(*1)  400.0mV Range : Accuracy is not guaranteed.
